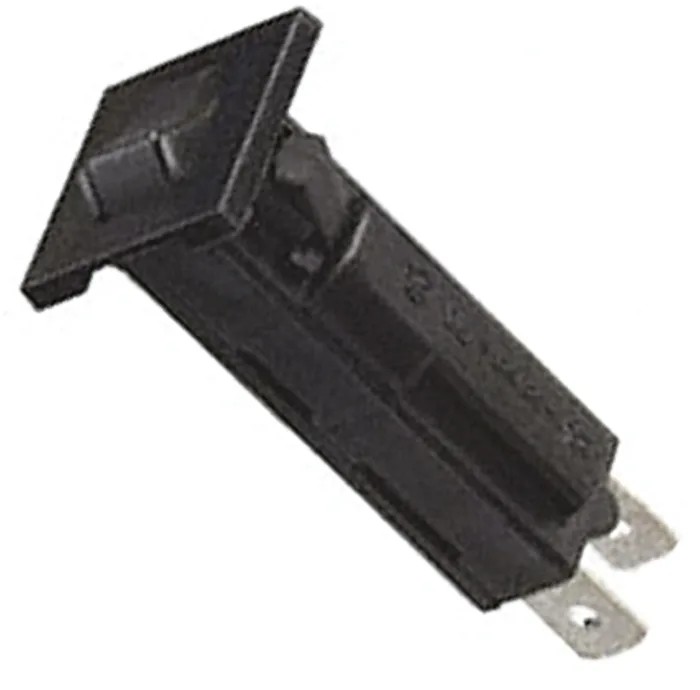

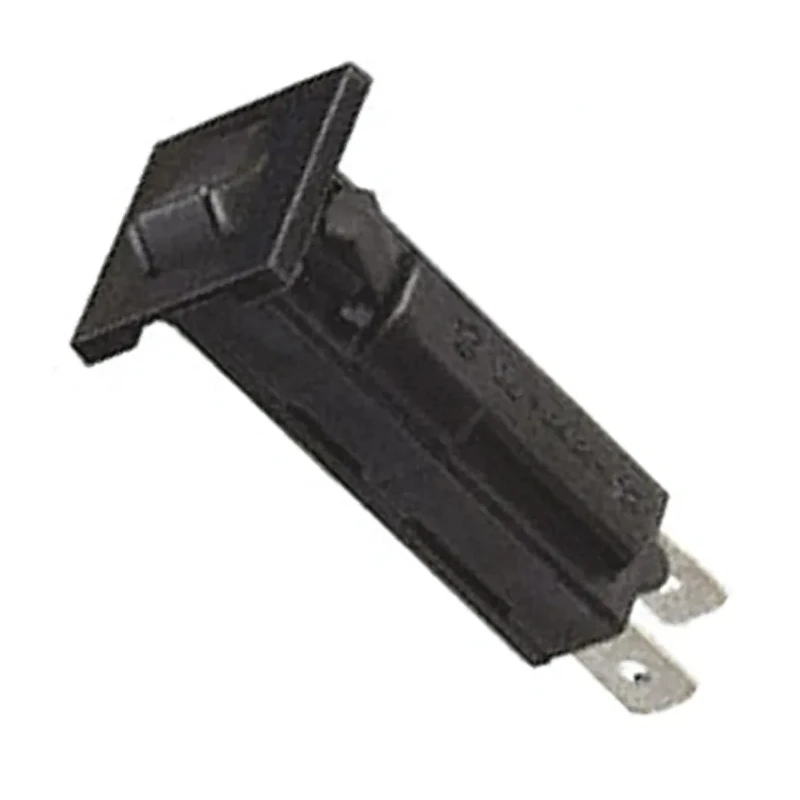

TE Connectivity W28 Thermal Circuit Breaker 1-Pole 750mA Rated 240V AC 50V DC 1000A Breaking Capacity W28-XQ1A-0.75
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Model | W28-XQ1A-0.75 |
| Width | 19.3mm |
| Mount Type | Direct |
| Current Rating | 750mA |
| Series | W28 |
| Terminal type | Screw |
| Breaking Capacity | 1000A |
| Number of Poles | 1 |
| Standards/Approvals | RoHS, CE |
| Rated AC Voltage | 240V ac |
| Rated DC Voltage | 50V dc |
| Tripping Mechanism | Thermal |
| Reset Actuator Type | Toggle Switch |
| Mount Hole Size | 3.33 mm |
| Break Time | Medium |
Key Features
- Thermal tripping mechanism provides reliable protection against overcurrent conditions.
- Operates at rated AC voltage of 240V and DC voltage of 50V.
- Breaking capacity of 1000A to safely interrupt fault currents.
- Reset actuator is a toggle switch for easy manual reset after tripping.
- Screw terminal type ensures secure electrical connections.
- Compact width of 19.3 mm fits in limited space installations.
- Mount hole size of 3.33 mm for direct mounting applications.
- Tripping characteristics ensure trip at 101% load and must trip at 135% within 1 hour for high accuracy.
Product Description
TE Connectivity W28-XQ1A-0.75 is a thermal circuit breaker designed for industrial and electrical applications requiring precise overcurrent protection. This 1-pole circuit breaker features a thermal tripping mechanism that ensures reliable current interruption at rated loads. Its 750mA current rating makes it suitable for protecting sensitive circuits.
Operating at 240V AC and 50V DC, it provides versatility in both alternating and direct current applications. The breaking capacity of 1000A ensures the device can safely interrupt fault currents without damage. The toggle switch reset actuator enables convenient manual resetting after trip events.
The screw terminal type offers secure and stable electrical connections, essential for maintaining safety and performance in industrial environments. With a compact width of 19.3 mm and a mounting hole size of 3.33 mm, installation in constrained electrical panels is facilitated.
The W28 series thermal circuit breakers are designed with highly precise tripping characteristics. The breaker trips at 101% of rated current and must trip at 135% current within one hour, providing effective protection against overloads. This product complies with RoHS and CE standards, ensuring environmental responsibility and safety compliance.
Common industrial use cases include electrical panel protection, automation machinery safety, and circuit fault interruption in commercial and residential electrical systems. Thermal tripping mechanism for reliable overcurrent protection.
Supports AC voltage up to 240V and DC voltage up to 50V. Breaking capacity of 1000A to handle high fault currents. Toggle switch reset actuator for easy resetting after trip. Screw terminal type for secure wiring connections.
Compact width and mounting hole size for space-efficient installation. Accurate tripping characteristics for safe circuit operation. RoHS and CE compliant for environmental and safety standards. Manufactured in China with new product condition assurance.
Explore the TE Connectivity range of Thermal Circuit Breakers and other electrical protection devices on EnvMart for reliable industrial-grade components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 750mA, making it suitable for protecting sensitive circuits.
It features a breaking capacity of 1000A, allowing it to safely interrupt fault currents.
The W28 thermal circuit breaker operates at a rated AC voltage of 240V and a rated DC voltage of 50V.
It utilizes a thermal tripping mechanism, which provides reliable protection against overcurrent conditions.
It features a toggle switch reset actuator that allows for easy manual resetting after a trip event.
This unit has a compact width of 19.3 mm, suitable for limited space installations.
It is equipped with screw terminals, ensuring secure and stable electrical connections.
The mount hole size is 3.33 mm, designed for direct mounting applications.
It complies with RoHS and CE standards, ensuring environmental responsibility and safety compliance.
It trips at 101% of rated current and must trip at 135% within one hour, ensuring high accuracy in overload protection.
Common applications include electrical panel protection, automation machinery safety, and circuit fault interruption in various electrical systems.
The W28 thermal circuit breaker is manufactured in China.
