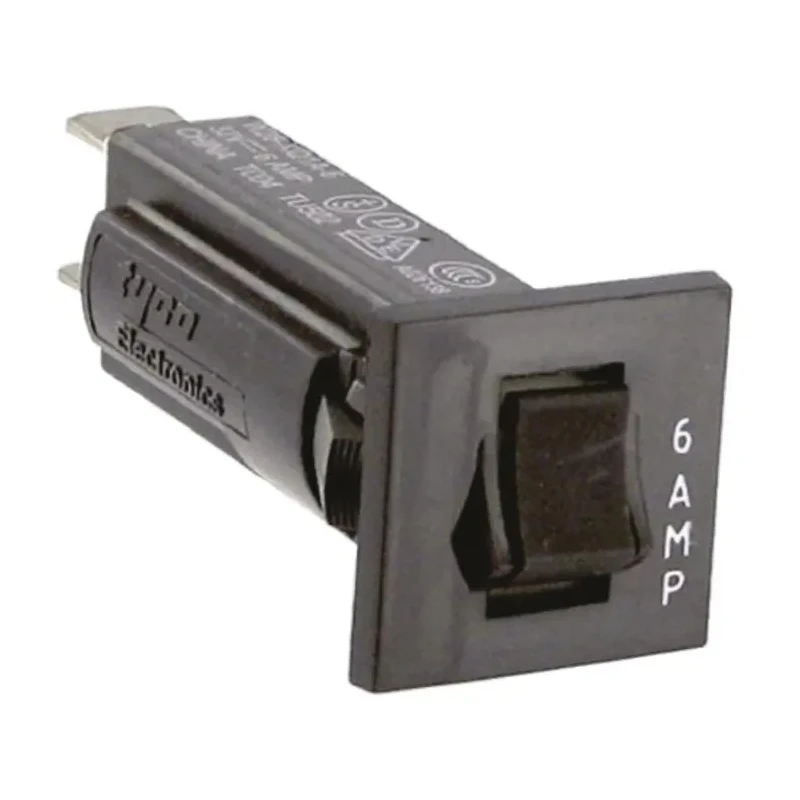

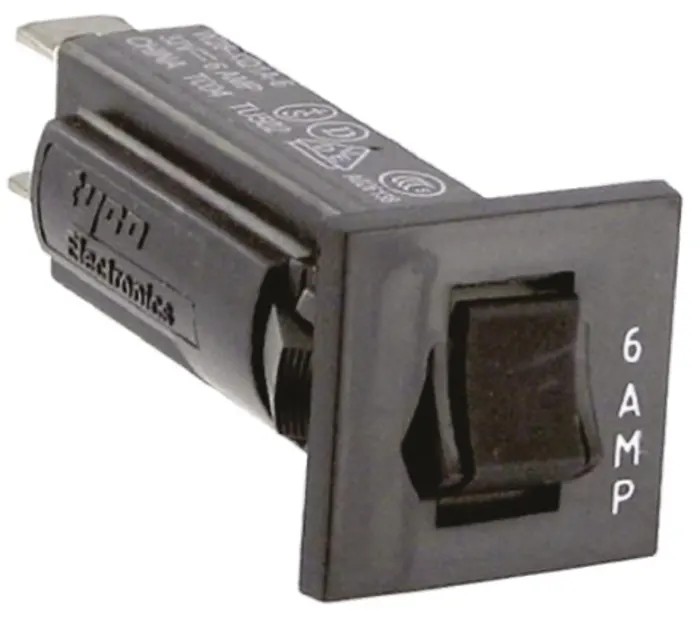

TE Connectivity Thermal Circuit Breaker W28-XQ1A-6 6A Current Rating 1-Pole Direct Mount, 240V AC, 50V DC
Specifications
| Country of Origin | China |
|---|---|
| Range | 0.25 to 20 A |
| Brand | TE Connectivity |
| Model | W28-XQ1A-6 |
| Depth | 1.535in |
| Width | 19.3mm |
| Mount Type | Direct |
| Current Rating | 6A |
| Series | W28 |
| Terminal type | Screw |
| Breaking Capacity | 1000A |
| Number of Poles | 1 |
| Standards/Approvals | RoHS, CE |
| Rated AC Voltage | 240V ac |
| Rated DC Voltage | 50V dc |
| Tripping Characteristics | 175% (0.25-2A) within 1 hour, May trip between 101% and 134%, Trip at 135% (3-20 A) |
| Tripping Mechanism | Thermal |
| Reset Actuator Type | Toggle Switch |
| Mount Hole Size | 18.8 mm |
| Break Time | Medium |
Key Features
- Supports current ratings from 0.25 to 20 A for flexible application.
- Single pole configuration for streamlined circuit integration.
- Direct mount type with an 18.8 mm mount hole size for secure installation.
- Equipped with a toggle switch reset actuator for quick manual reset.
- Thermal tripping mechanism ensures protection from overcurrent conditions.
- Rated for 240V AC and 50V DC operation with a breaking capacity of 1000A.
- Medium break time optimized for standard applications.
- Compact width of 19.3 mm and depth of 1.535 inches for space-saving installations.
Product Description
TE Connectivity W28-XQ1A-6 thermal circuit breaker is designed to provide robust overcurrent protection in electrical automation, industrial control, and commercial power distribution systems. Featuring a single pole and direct mount configuration, this breaker ensures easy installation and maintenance.
The breaker supports a current rating of 6A within a wide range of 0.25 to 20 A, accommodating diverse circuit sizes and loads. Its thermal tripping mechanism is enhanced with precise characteristics: it trips at 175% within one hour for lower currents (0.25 - 2A), may trip between 101% and 134%, and trips at 135% for currents between 3 and 20 A, ensuring reliable circuit protection under varying loads.
It accepts a rated AC voltage of 240V and a DC voltage of 50V, making it suitable for mixed voltage environments. Its breaking capacity of up to 1000A ensures rapid interruption of fault currents, safeguarding connected equipment and wiring.
The reset actuator is a user-friendly toggle switch allowing fast reset operations without tools. The compact footprint, including a width of 19.3 mm and a depth of 1.535 inches, suits panel and enclosure installations with limited space.
Manufactured according to RoHS and CE standards, this product guarantees compliance with relevant environmental and safety regulations. Its mount hole size of 18.8 mm supports secure direct mounting on panels or DIN rails.
Current rating range of 0.25 to 20 A for versatile circuit protection. Single pole design simplifies circuit layout. Direct mount type facilitates straightforward installation. Thermal tripping mechanism for dependable overload protection.
Toggle switch reset actuator for easy manual reset. Rated for 240V AC and 50V DC with 1000A breaking capacity. Compact dimensions fit confined spaces. RoHS and CE compliant for industry standards adherence. Ideal for industrial automation, electrical panels, and control systems.
This Thermal Circuit Breaker from TE Connectivity is a reliable choice for industrial, commercial, and automation applications requiring precise current interruption and safety controls. Explore the full W28 series range for other ratings and mounting options on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This thermal circuit breaker has a current rating of 6A and supports a range from 0.25 to 20 A for flexible application in various circuit sizes.
It is rated for 240V AC and 50V DC operation, making it suitable for mixed voltage environments.
This model has a breaking capacity of 1000A, ensuring rapid interruption of fault currents to protect connected equipment.
The thermal tripping mechanism trips at 175% for currents between 0.25 and 2A within one hour, may trip between 101% and 134%, and trips at 135% for currents between 3 and 20 A.
It features a toggle switch reset actuator, allowing for quick manual reset operations without the need for tools.
This circuit breaker has a compact width of 19.3 mm and a depth of 1.535 inches, making it suitable for installations with limited space.
It is a direct mount type with a mount hole size of 18.8 mm, facilitating straightforward installation on panels or DIN rails.
This model is manufactured according to RoHS and CE standards, ensuring compliance with relevant environmental and safety regulations.
The W28-XQ1A-6 features a single pole configuration, which simplifies circuit layout and integration.
The circuit breaker has a medium break time optimized for standard applications, providing reliable circuit protection.
This thermal circuit breaker uses a screw terminal type for secure electrical connections.
It is designed for use in electrical automation, industrial control, and commercial power distribution systems, providing robust overcurrent protection.
