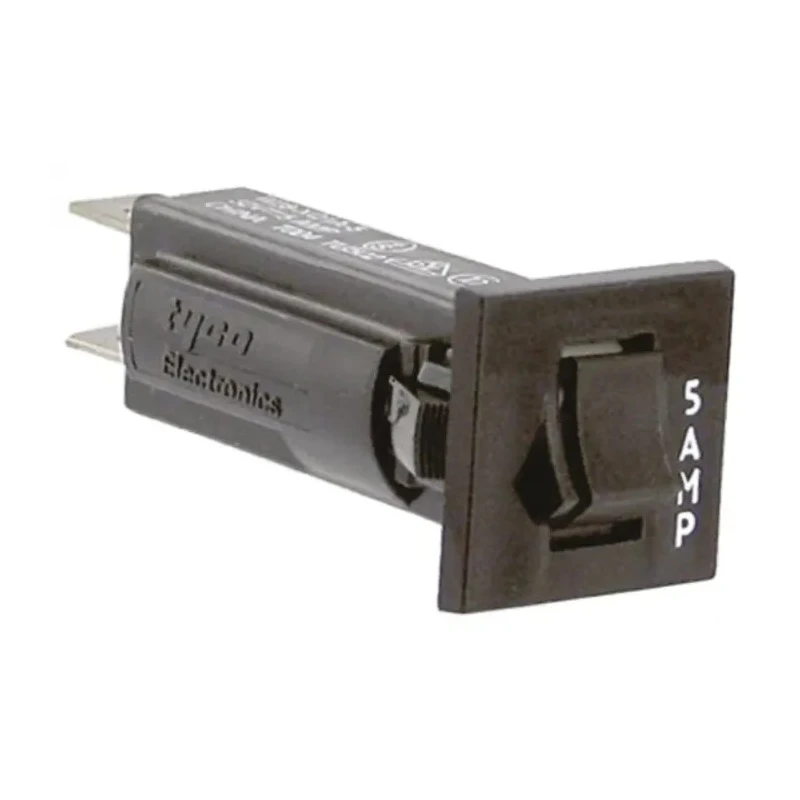

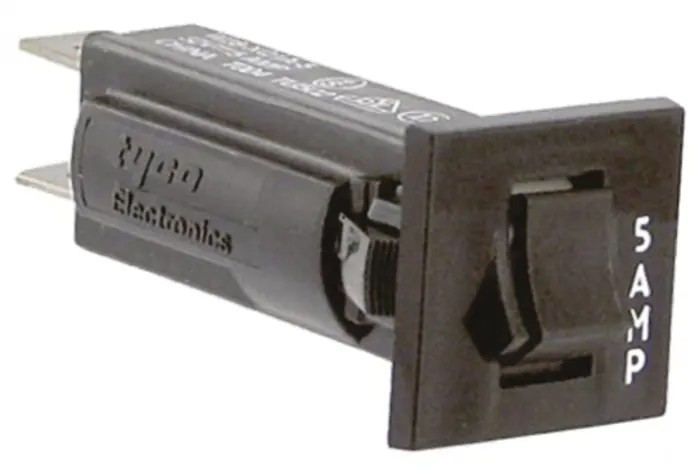

TE Connectivity Thermal Circuit Breaker 5A Current Rating 1-Pole Direct Mount W28-XQ1A-5
Specifications
| Country of Origin | India |
|---|---|
| Range | 0.25 to 20 A |
| Brand | TE Connectivity |
| Model | W28-XQ1A-5 |
| Width | 19.3mm |
| Mount Type | Direct |
| Current Rating | 5A |
| Series | W28 |
| Terminal type | Screw |
| Breaking Capacity | 1000A |
| Number of Poles | 1 |
| Standards/Approvals | CE, RoHS |
| Rated AC Voltage | 240V ac |
| Rated DC Voltage | 50V dc |
| Tripping Characteristics | 175% (0.25-2A) within 1 hour, Trip at 135% (3-20 A), May trip between 101% and 134% |
| Tripping Mechanism | Thermal |
| Reset Actuator Type | Toggle Switch |
| Mount Hole Size | 18.8 mm |
| Break Time | Medium |
Key Features
- Operates within a current range of 0.25 to 20 amps providing reliable thermal protection.
- Features a toggle switch reset actuator for easy manual reset after tripping.
- Equipped with screw terminal type ensuring secure electrical connection.
- Has a breaking capacity of 1000A suitable for medium break time applications.
- Complies with CE and RoHS standards ensuring safety and environmental compatibility.
- Rated for 240V AC and 50V DC voltages enabling versatile use.
- Compact width of 19.3mm and direct mount type with hole size of 18.8 mm facilitates easy installation.
- Tripping characteristics include 175% trip within 1 hour for 0.25-2A range and trip at 135% for 3-20A range.
Product Description
TE Connectivity W28-XQ1A-5 is a thermal circuit breaker from the W28 series, designed for electrical protection applications requiring a 5A current rating with a 1-pole direct mount configuration. The breaker supports a current range from 0.25 to 20 amps, making it versatile for various circuit protection needs. It features a thermal tripping mechanism combined with a toggle switch reset actuator that ensures quick manual reset capability after a fault trip event.
This model is equipped with screw terminals providing high reliability in electrical connections. It carries a breaking capacity of 1000A, suitable for circuits requiring medium break time protection. The device adheres to stringent CE and RoHS standards, ensuring compliance with safety and environmental regulations.
The thermal circuit breaker operates at a rated AC voltage of 240V and DC voltage of 50V, allowing its use in diverse electrical environments. Its compact width of 19.3 mm and direct mount type with an 18.8 mm mount hole enhances easy integration into existing systems. Its tripping characteristics specify a trip at 175% current for the 0.25-2A range within one hour, and a trip at 135% for ranges above 3A, with potential trip between 101% and 134% ensuring precise circuit protection.
Operates within a current range of 0.25 to 20 amps providing reliable thermal protection. Features a toggle switch reset actuator for easy manual reset after tripping. Equipped with screw terminal type ensuring secure electrical connection.
Has a breaking capacity of 1000A suitable for medium break time applications. Complies with CE and RoHS standards ensuring safety and environmental compatibility. Rated for 240V AC and 50V DC voltages enabling versatile use.
Compact width of 19.3mm and direct mount type with hole size of 18.8 mm facilitates easy installation. Tripping characteristics include 175% trip within 1 hour for 0.25-2A range and trip at 135% for 3-20A range.
This Thermal Circuit Breaker is widely used in industrial, electrical automation, HVAC, and manufacturing settings for reliable circuit protection. Its compact design and versatile voltage ratings make it ideal for integration into control panels, machines, and electrical systems requiring precise thermal protection and reset capabilities.
Explore more circuit protection solutions and TE Connectivity products on EnvMart for dependable industrial and electrical applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a current range of 0.25 to 20 amps.
This model has a breaking capacity of 1000A, which is suitable for medium break time applications.
It is rated for 240V AC and 50V DC, allowing for versatile use in various electrical environments.
The tripping characteristics include a trip at 175% within 1 hour for the 0.25-2A range and a trip at 135% for the 3-20A range, with potential trip between 101% and 134%.
It features a toggle switch reset actuator for easy manual reset after tripping.
It is equipped with screw terminals, ensuring a secure electrical connection.
This model has a compact width of 19.3mm and is designed for direct mounting with a hole size of 18.8mm.
It complies with CE and RoHS standards, ensuring safety and environmental compatibility.
It is widely used in industrial, electrical automation, HVAC, and manufacturing settings for reliable circuit protection.
The thermal tripping mechanism is designed to trip the circuit based on the current flow exceeding preset limits, providing reliable protection.
The country of origin for this thermal circuit breaker is India.
Its compact design and direct mount type facilitate easy integration into control panels and electrical systems.
