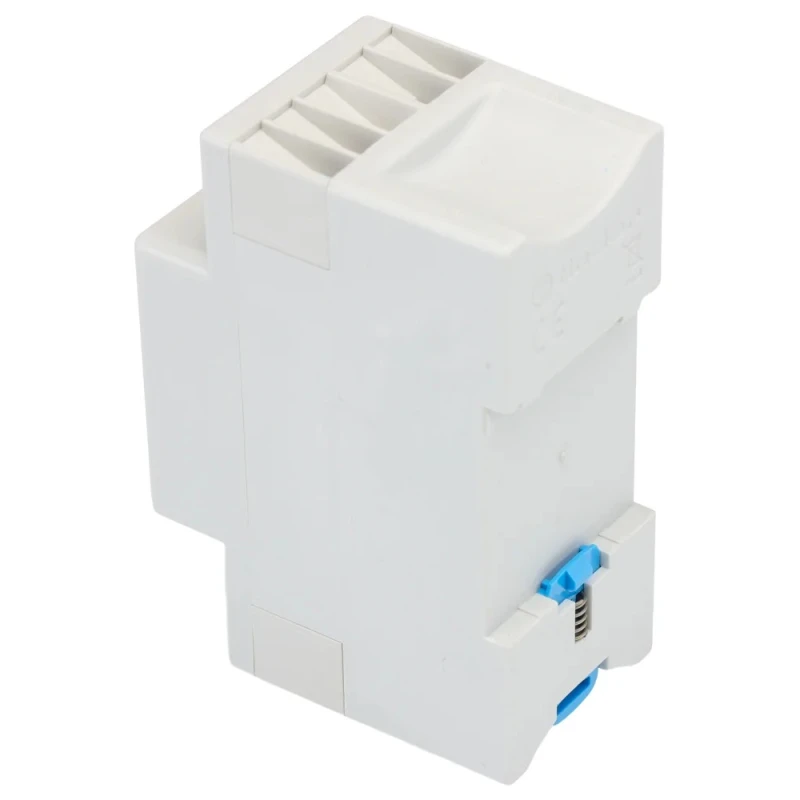

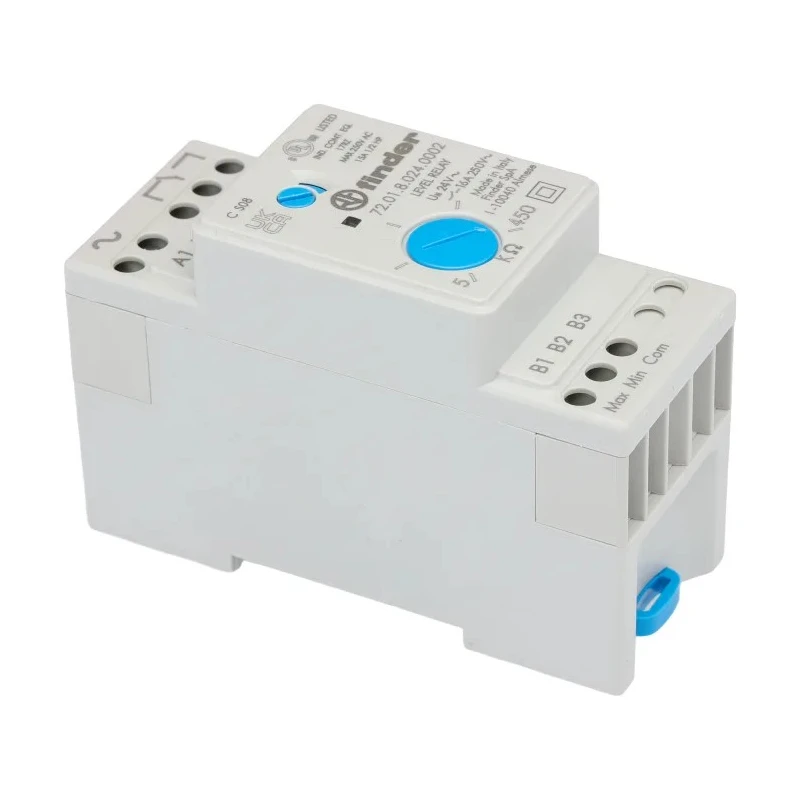

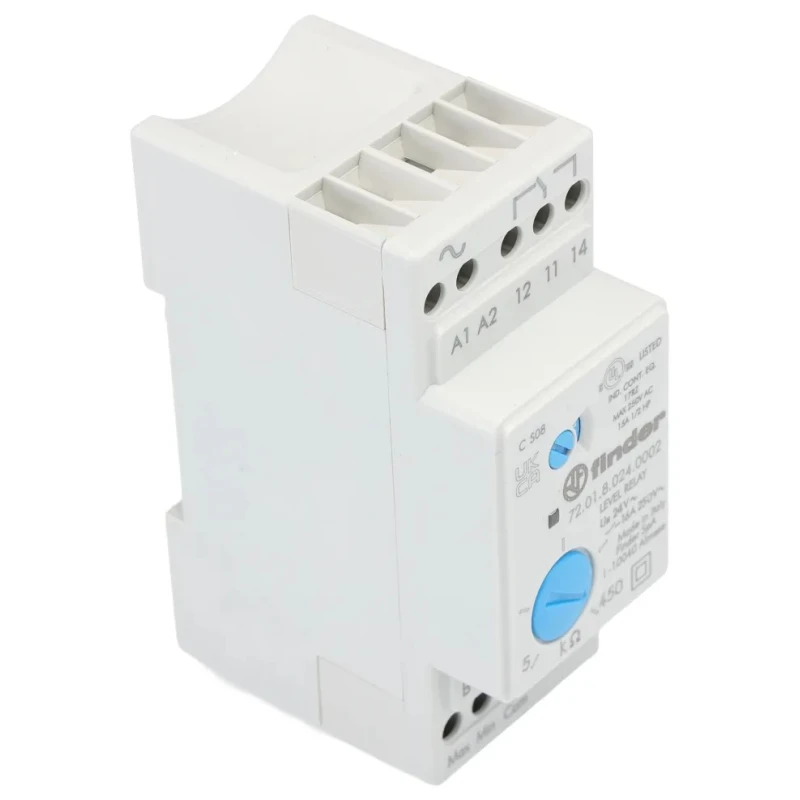

Finder Monitoring Relay, 1 Phase, SPDT Contact, DIN Rail Mount, 24V AC/DC, 16A, RoHS Certified 72.01.8.024.0002
Specifications
| Country of Origin | Italy |
|---|---|
| Power Consumption | 1.5W |
| Brand | Finder |
| Height | 84mm |
| Length | 58mm |
| IP Rating | IP20 |
| Width | 35mm |
| Mount Type | DIN Rail |
| Series | 72 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Time Delay | 0.5 to 7 s |
| Minimum Operating Temperature | +60°C |
| Terminal type | Screw |
| Electrical Phase | 1 |
| Standards/Approvals | RoHS |
| Switching Voltage | 400V |
| Contact Current | 16A |
| Supply DC Voltage | 24 V dc |
| Supply AC Voltage | 24V ac |
Key Features
- The SPDT contact configuration provides versatile switching options for various control needs.
- Time delay adjustable from 0.5 to 7 seconds for flexible operation.
- Current rating of 16A supports a range of load requirements.
- Screw terminal connections ensure secure and easy wiring.
- DIN Rail mounting offers seamless integration into electrical panels.
- Operating temperature range from -20°C to +60°C suitable for diverse environments.
- Switching voltage capability of up to 400V enhances applicability.
- IP20 protection rating provides basic protection in indoor installations.
Product Description
Finder 72.01.8.024.0002 Monitoring Relay is a multifunctional device designed for level monitoring in electrical systems. This relay features a single electrical phase with a SPDT contact configuration and is mountable on a DIN rail for convenient panel installation. It operates at 24V AC/DC and supports a current rating of 16A with a switching voltage of 400V. The device is certified with RoHS compliance and manufactured in Italy, assuring quality and safety standards.
Its adjustable time delay, ranging from 0.5 to 7 seconds, allows precise control to prevent rapid switching, enhancing equipment longevity. The relay is equipped with screw terminals for secure wiring and boasts reinforced insulation rated at 6 kV between supply and contacts, providing effective protection against electrical faults. Operating within a temperature span of -20°C to +60°C, it suits a variety of industrial environments.
This monitoring relay excels in applications involving level control in swimming pools, bottling processes, milk processing plants, industrial washing machines, and control panels for pumps. It is well-suited for use with conductive liquids such as mains water, sewage, wine, and milk but is not recommended for use with demineralised water, oils, or liquids high in alcohol content. Sensitivity is adjustable between 5 - 150 kΩ, allowing customization for different liquid conductivities.
The SPDT contact configuration provides versatile switching options for various control needs. Time delay adjustable from 0.5 to 7 seconds for flexible operation. Current rating of 16A supports a range of load requirements.
Screw terminal connections ensure secure and easy wiring. DIN Rail mounting offers seamless integration into electrical panels. Operating temperature range from -20°C to +60°C suitable for diverse environments. Switching voltage capability of up to 400V enhances applicability.
IP20 protection rating provides basic protection in indoor installations. Reinforced insulation up to 6 kV between supply and contacts ensures operational safety. Ideal for level control in industrial, agricultural, and water treatment applications.
Choose the Finder 72 Series Monitoring relay for reliable and safe level control in demanding industrial and commercial settings. Explore more high-quality Monitoring Relays and electrical components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The monitoring relay has a current rating of 16A, supporting a range of load requirements.
The time delay for this model is adjustable from 0.5 to 7 seconds, allowing for flexible operation.
It has a switching voltage capability of up to 400V, enhancing its applicability in various electrical systems.
This relay is designed for DIN Rail mounting, facilitating seamless integration into electrical panels.
The operating temperature range is from -20°C to +60°C, making it suitable for diverse environments.
It features a single-phase SPDT (Single Pole Double Throw) contact configuration, providing versatile switching options.
The device has an IP20 protection rating, providing basic protection for indoor installations.
The dimensions of this unit are 84mm in height, 58mm in length, and 35mm in width.
It uses screw terminals for secure and easy wiring connections.
The relay operates at a supply voltage of 24V AC/DC.
This model is suitable for level control in applications such as swimming pools, bottling processes, and industrial washing machines.
This monitoring relay is manufactured in Italy, ensuring compliance with quality and safety standards.
