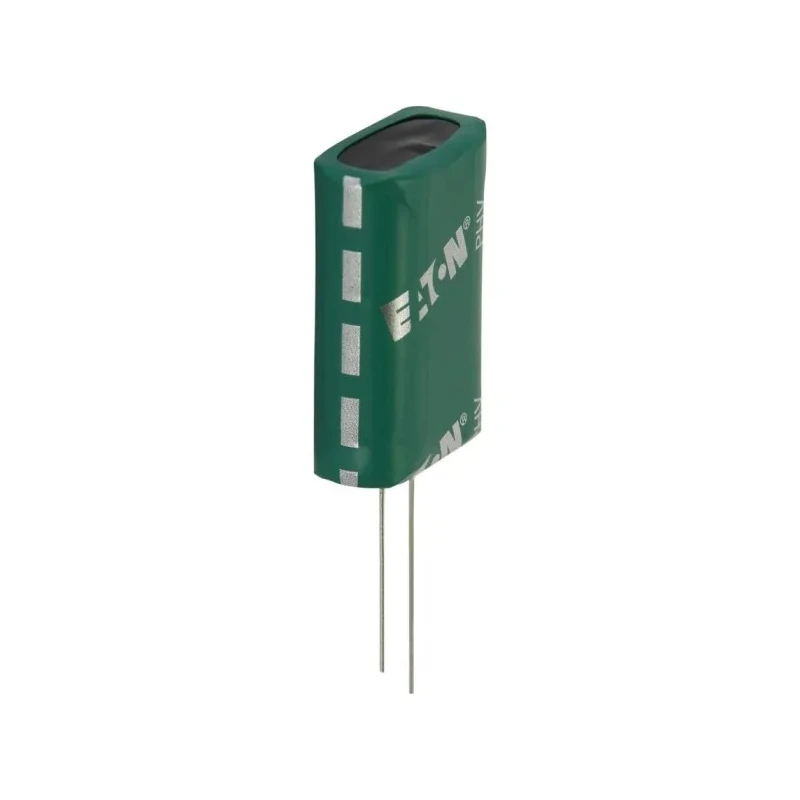

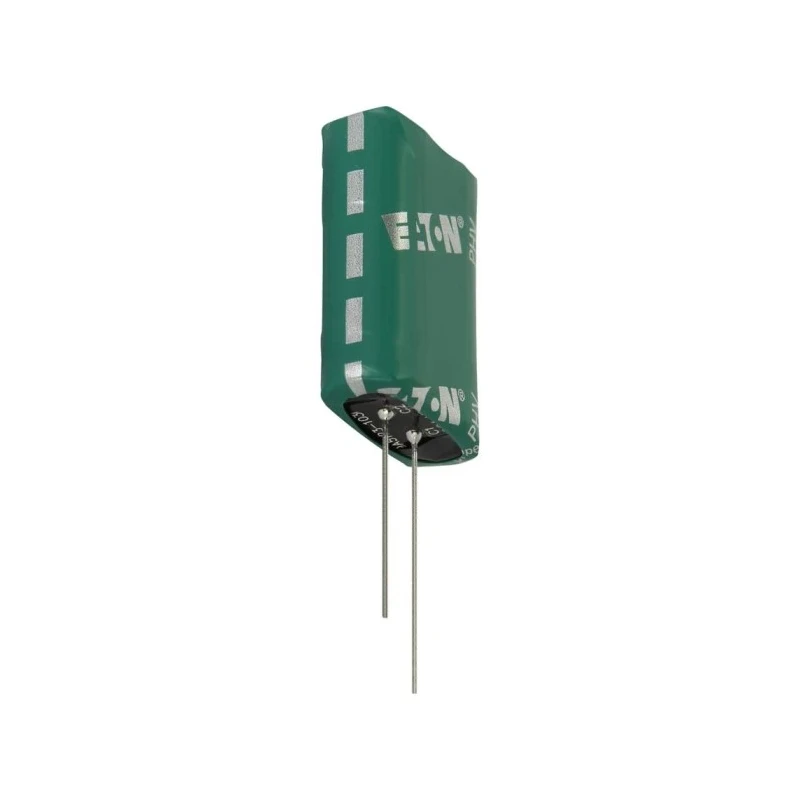

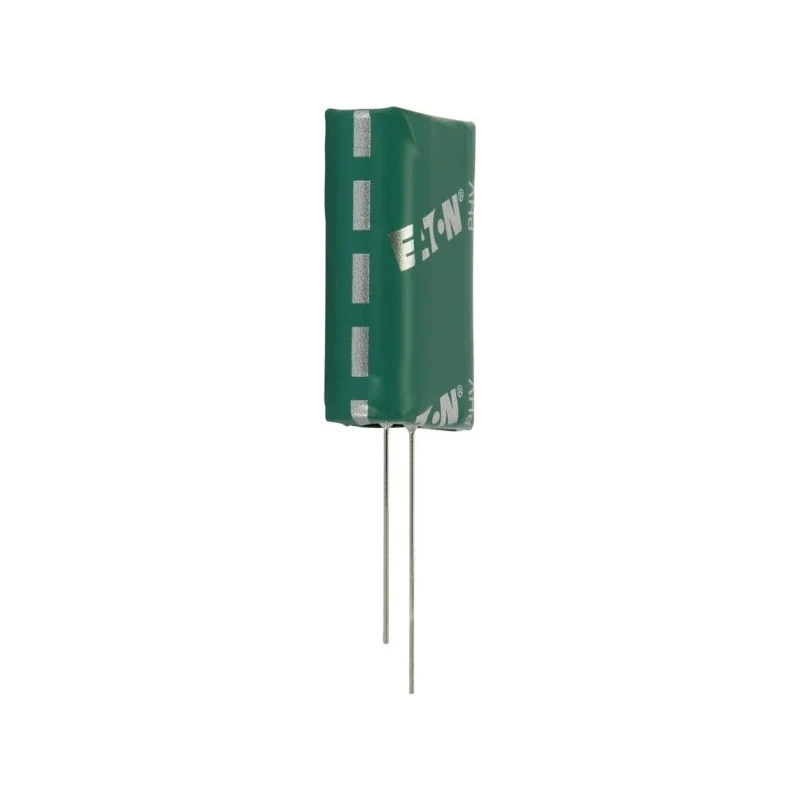

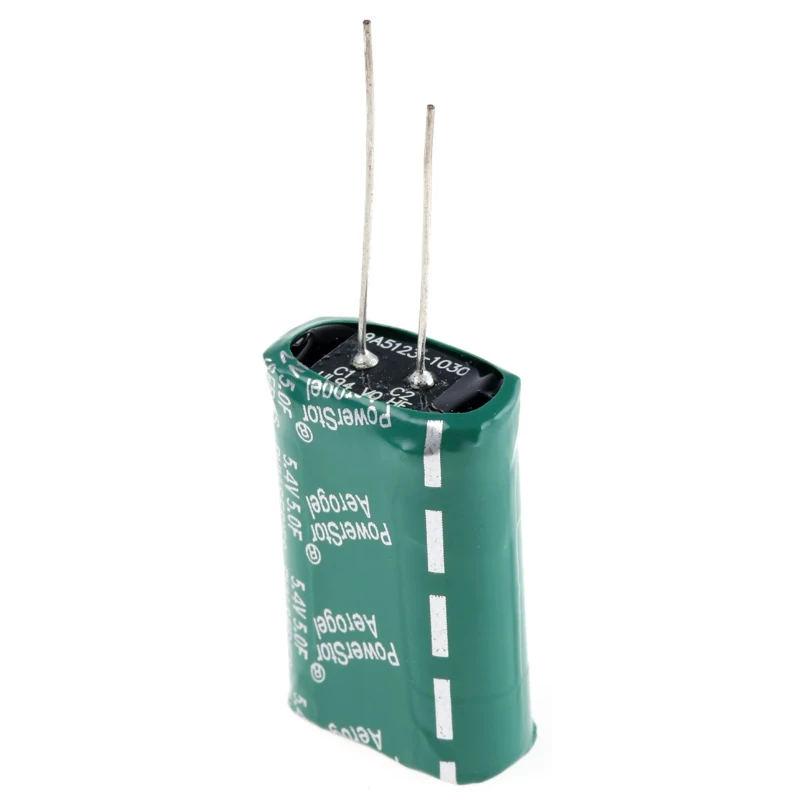

Eaton Supercapacitor 5 F Capacitance 5.4V DC Through Hole Cylindrical PHV-5R4V505-R

Eaton PHV-5R4V505-R supercapacitor is a high-capacitance energy storage device designed for various electronic components' power stabilization and backup applications. With a capacitance of 5 farads and voltage rating of 5.4 volts DC, this through-hole mounted cylindrical capacitor features ultra-low Equivalent Series Resistance (ESR), enabling minimal energy loss and efficient rapid charging.

This supercapacitor operates reliably across an extended temperature range from -40°C to +65°C, making it suitable for harsh and demanding industrial, automotive, and consumer electronics environments. Its polarity is clearly marked to prevent incorrect installation, ensuring consistent performance. The unit comes in a compact cylindrical package with a diameter of 21.3 mm and height of 32.5 mm, equipped with solder-type terminals on leads spaced at a 5.3 mm pitch.

Additional features include a low leakage current of 28 μA and a surge voltage tolerance of up to 6V for enhanced safety. Eaton's advanced double-layer construction with carbon electrodes and corrosion-resistant aluminum foil ensures durability and minimal impedance. The product complies with UL and RoHS standards, certifying its safety and environmental compliance by restricting harmful substances such as lead and halogens.

High capacitance value of 5 farads suitable for energy storage applications. Operating voltage of 5.4 volts DC ensuring compatibility with low voltage circuits. Polarity clearly marked for accurate installation in circuits.

Operating temperature range from -40°C to +65°C for reliable use in harsh environments. Low leakage current of 28 microamperes minimizes energy loss during operation. Ultra-low Equivalent Series Resistance (ESR) of 70 milliohms reduces power dissipation.

Robust cylindrical package with a diameter of 21.3 mm and height of 32.5 mm. Leads for through-hole mounting with a pitch of 5.3 mm and 0.6 mm diameter. Leakage current and surge voltage withstand of 6V enhance safety and reliability.

Compliance with UL and RoHS standards ensuring product safety and environmental friendliness.

Commonly used in industrial electronics, power backup systems, and hybrid vehicle applications, this Eaton supercapacitor provides efficient power buffering, quick charge/discharge cycles, and extended lifetime of 1000 hours. It is ideal for energy harvesting, power stabilization, and other electronic component designs requiring reliable Supercapacitors.
