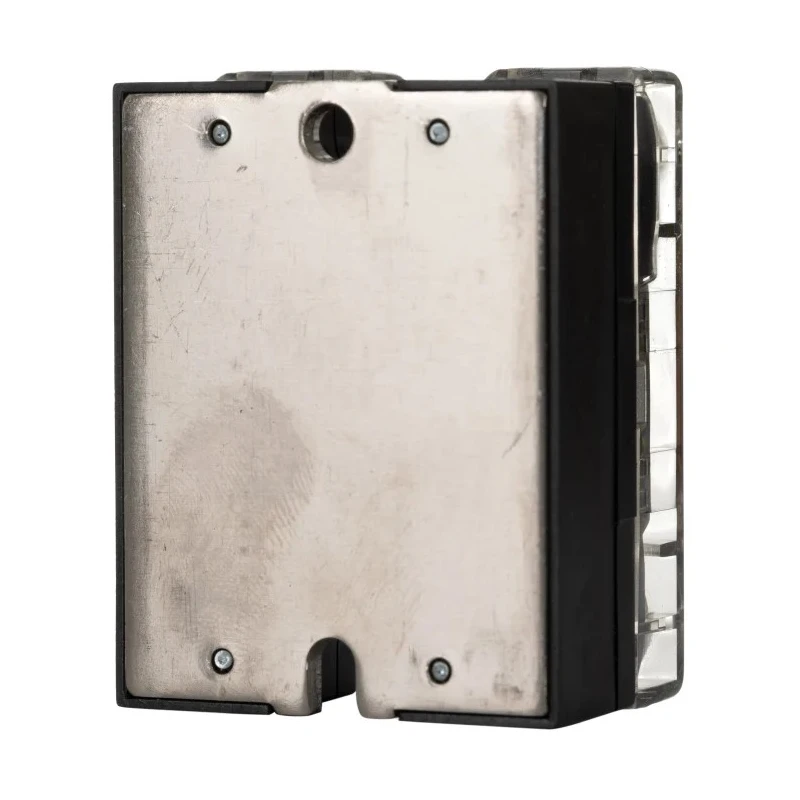

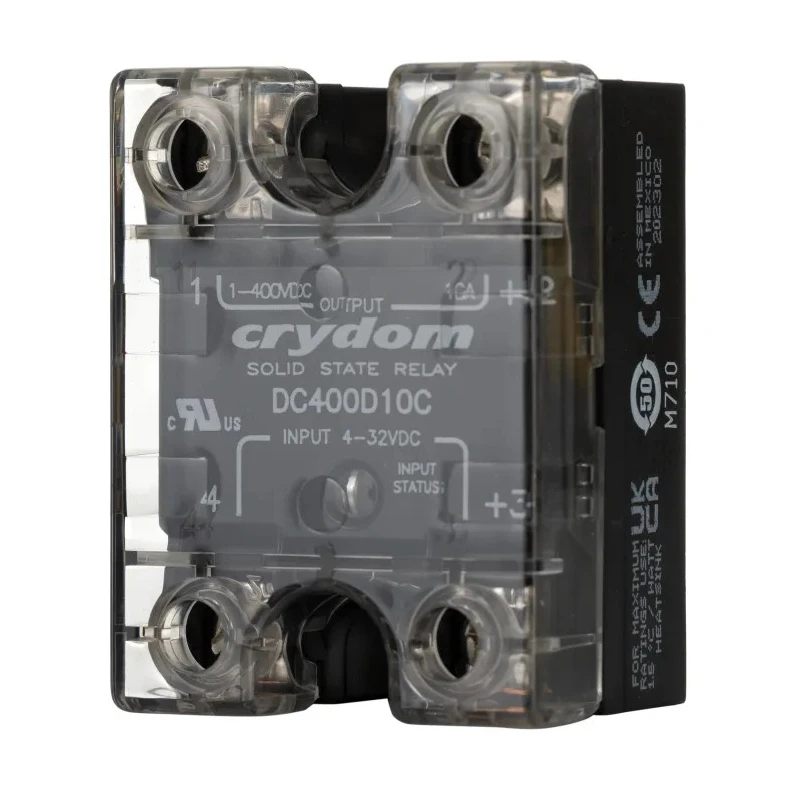

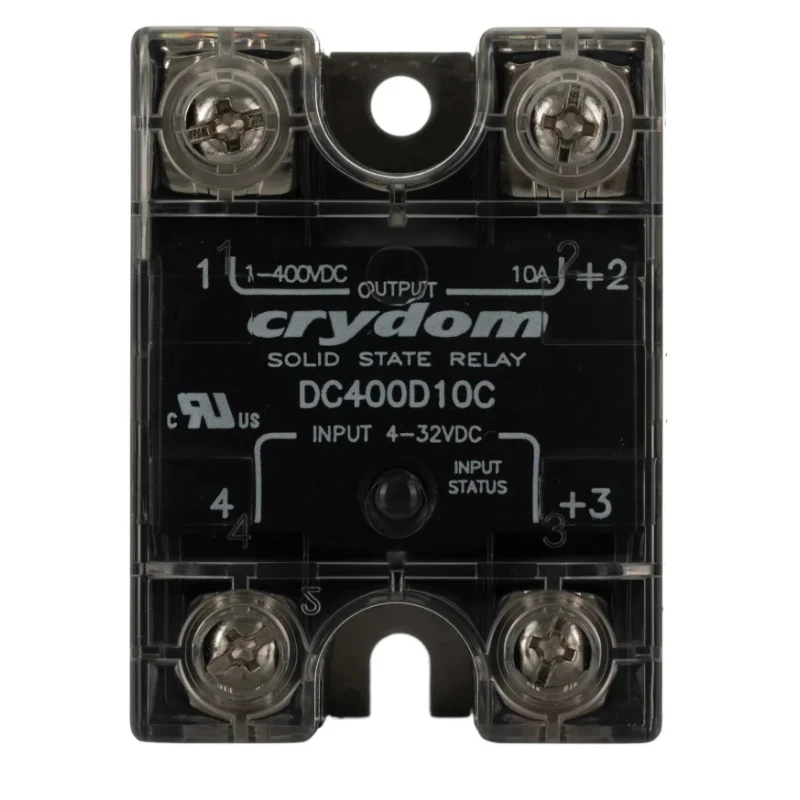

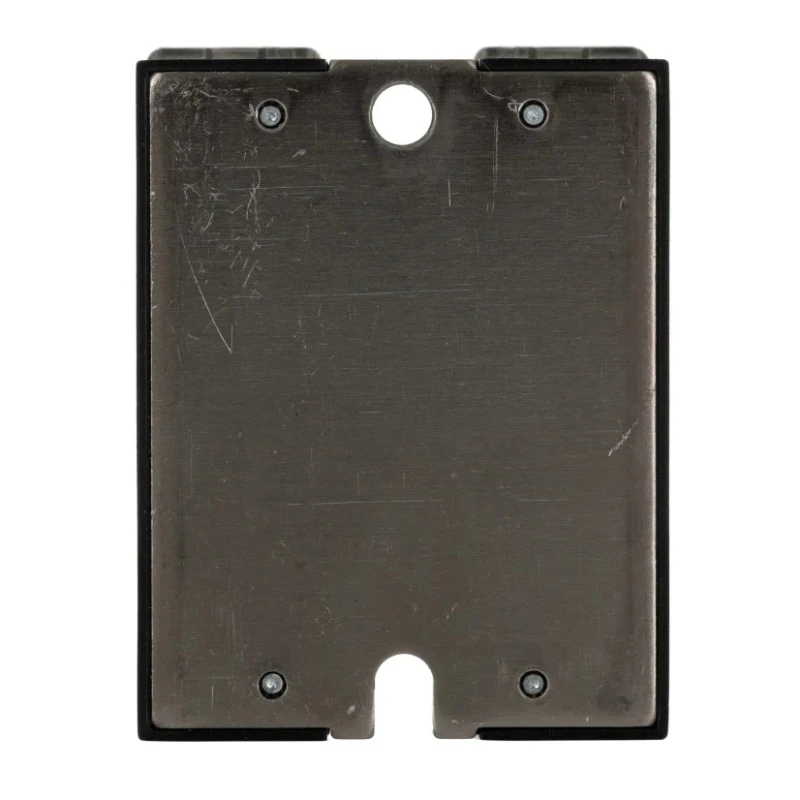

Crydom PowerPlus DC Series Solid State Relay, 10 A Load Current, 300 V DC Load Voltage, Panel Mount, 32V DC Control DC400D10C

Free Delivery in India | Lowest Global Shipping Charges

Crydom PowerPlus DC Series Solid State Relay, 10 A Load Current, 300 V DC Load Voltage, Panel Mount, 32V DC Control DC400D10C

Name: Crydom PowerPlus DC Series Solid State Relay, 10 A Load Current, 300 V DC Load Voltage, Panel Mount, 32V DC Control DC400D10C
Brand: Crydom
SKU: 314563
Price: 168.46 USD
Availability: InStock



Category Solid State Relay Brand Crydom Condition New

Specifications

Country of Origin	India
Brand	Crydom
Height	32.9mm
Length	58.2mm
Model	DC400D10C
IP Rating	IP20
Width	22.6mm
Mount Type	Panel
Output type	MOSFET
Series	PowerPlus DC
Maximum Operating Temperature	80°C
Contact Configuration	SPST
Capacitance	10pF
Minimum Operating Temperature	-30°C
Terminal type	Screw
Switching Function	Instantaneous Switching
Maximum Load Current	10A
Standards/Approvals	UL, RoHS, CE
Maximum Load Voltage	300V dc
Minimum Load Voltage	1V dc
Minimum Control Voltage	4V dc
Maximum Control Voltage	32V dc
Off State Leakage Current	0.4mA
On State Resistance	15Ω

Key Features

The relay supports a maximum load current of 10 amperes for medium power DC loads.
Suitable for controlling DC voltages up to 300 volts with instantaneous switching function.
Features a MOSFET output type for efficient electronic control.
Equipped with IP20 rating ensuring protection against touch and tool ingress larger than 12 mm.
Compact dimensions of 58.2 mm length, 22.6 mm width, and 32.9 mm height for space-saving panel mount installation.
Incorporates a screw terminal type for secure electrical connections.
Supports input control voltages between 4 V to 32 V DC.
Operates reliably in temperature ranges from -30°C to 80°C.

Product Description

The Crydom PowerPlus DC Series Solid State Relay model DC400D10C is a high-performance electronic switching device designed to control DC loads up to 10 amperes at voltages as high as 300 V DC. It is optimized for panel mount applications requiring robust and reliable operation with minimal space footprint.

This SSR employs MOSFET output technology that provides low on-state resistance and fast switching characteristics, resulting in efficient and silent operation. It supports instantaneous switching with a rapid turn-on time of just 0.075 milliseconds, making it ideal for time-critical industrial control systems.

Its durable construction features a compact housing with IP20 rating for protection against accidental contact with conductive parts and ingress of tools or wires larger than 12 mm. The relay includes screw terminals for secure and easy wiring.

The DC400D10C operates safely within a minimum control voltage of 4 V DC and maximum of 32 V DC, accommodating a wide range of control input signals. It is capable of withstanding surge currents up to 32 amperes for 10 milliseconds, providing robustness against transient faults and overloads.

10 A maximum load current rating for medium power DC applications. 300 V DC maximum load voltage with an on-state resistance of 15 Ω. Operating temperature range from -30°C to 80°C ensures versatility for various industrial environments.

Compact panel mount form factor measuring 58.2 mm x 22.6 mm x 32.9 mm. LED indicator simplifies monitoring of relay operational status. Complies with UL, RoHS, and CE standards for safety and environmental compatibility.

Commonly used in automation, HVAC control systems, lighting control, and industrial manufacturing processes, the Crydom DC400D10C solid state relay delivers efficient and reliable DC switching performance. Its instantaneous switching and MOSFET output make it suitable for modern electronic control designs that require fast response and durability.
