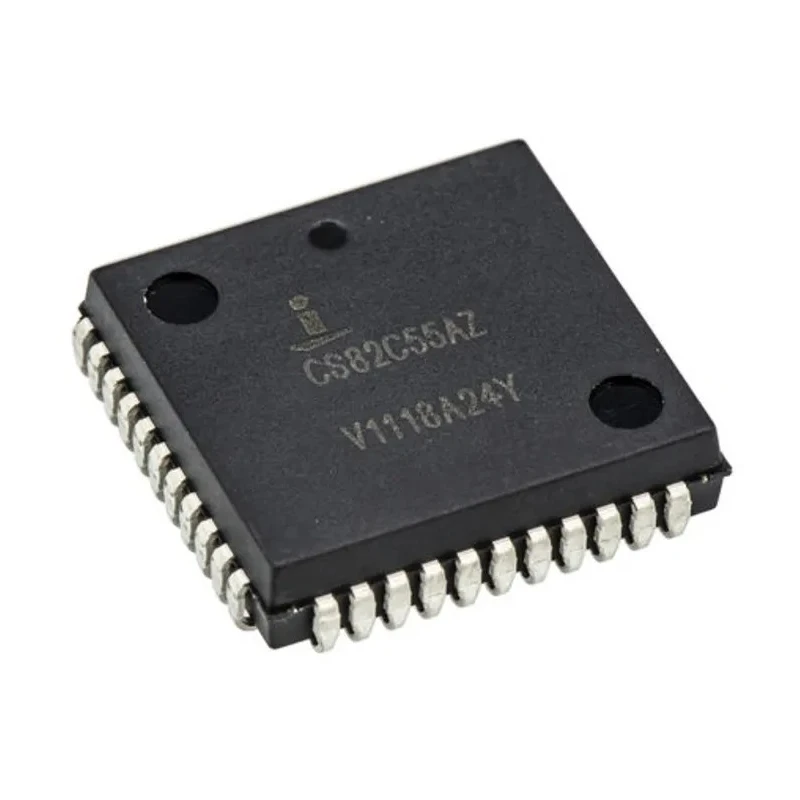

Renesas Electronics 24 I/O IO Controller, 44-Pin PLCC CS82C55AZ

Free Delivery in India | Lowest Global Shipping Charges

Renesas Electronics 24 I/O IO Controller, 44-Pin PLCC CS82C55AZ

Name: Renesas Electronics 24 I/O IO Controller, 44-Pin PLCC CS82C55AZ
Brand: Renesas Electronics
SKU: 292542
Price: 23.61 USD
Availability: InStock



Category Electronic Components Brand Renesas Electronics Condition New

Specifications

Country of Origin	Philippines
Brand	Renesas Electronics
Height	4.57mm
Length	16.66mm
Model	CS82C55AZ
Mount Type	Surface
Series	82C55A
Maximum Operating Temperature	70°C
Package Type	PLCC
Sub Type	I/O Controller Interface
Minimum Operating Temperature	0°C
Interface Type	TTL
Pin Count	44
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	4.5V
Number of I/O Channels	24
Intersil CS82C55AZ, Input Output Controller, 44-Pin PLCCBrand	Intersil

Key Features

The controller supports 24 input/output channels for versatile interfacing.
It operates with a TTL interface type suitable for digital logic systems.
The device is designed to operate within a supply voltage range from 4.5V to 5.5V.
Operating temperature range is from 0°C to 70°C, suitable for standard industrial environments.
The 44-pin PLCC package ensures durable and stable mounting on circuit boards.
The device does not support LAN controller, IDE, PCI, or serial ATA interfaces.
The CS82C55AZ is part of the 82C55A series known for CMOS programmable peripheral interface functionality.

Product Description

Renesas Electronics CS82C55AZ 24 I/O IO Controller, supplied in a 44-Pin PLCC surface mount package, is a programmable peripheral interface device widely used in electronics and semiconductor applications. It offers 24 input/output channels with TTL interface compatibility, making it suitable for various digital interface requirements in industrial and electronic control systems.

The device is designed to operate efficiently within a voltage range of 4.5V to 5.5V, ensuring stable performance under standard power conditions. Its operating temperature range from 0°C to 70°C allows reliable function in typical industrial environments.

The compact 44-pin PLCC package, with a height of 4.57 mm and length of 16.66 mm, facilitates easy mounting on compact PCB layouts while maintaining robust connectivity. It does not include LAN controller, IDE controller, PCI support, or DMA controller capabilities but emphasizes programmable parallel interface functionality consistent with the 82C55A series.

This IO Controller is ideal for industrial plants, manufacturing equipment, and electronic systems requiring programmable parallel I/O control. It enables efficient interfacing for automation, control logic, and embedded system applications.

The controller supports 24 input/output channels for digital interfacing. TTL interface type ensures compatibility with common logic levels. Stable operation between supply voltages 4.5V to 5.5V. Wide operating temperature from 0°C to 70°C suits industrial environments.

Surface mount PLCC 44-pin package for compact and durable PCB installation. Part of the 82C55A CMOS programmable peripheral interface series. Designed without LAN, IDE, PCI, and DMA controller features.

Renesas Electronics CS82C55AZ is sourced from Philippines and supplied new for industrial and electronic design and manufacturing use cases. Explore more precise semiconductor and interface controller products under Electronics & Electricals at EnvMart.
