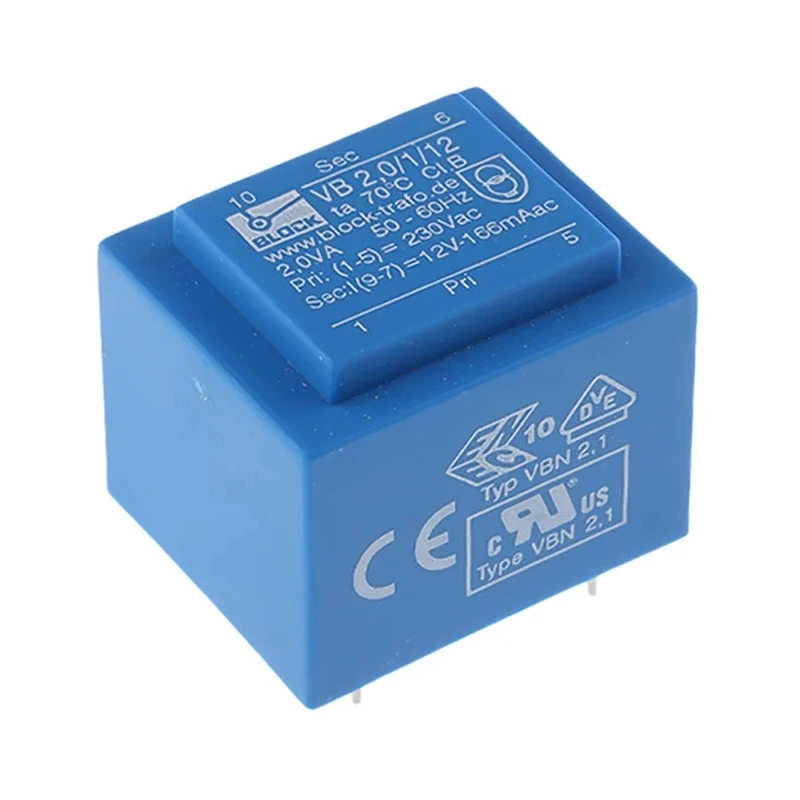

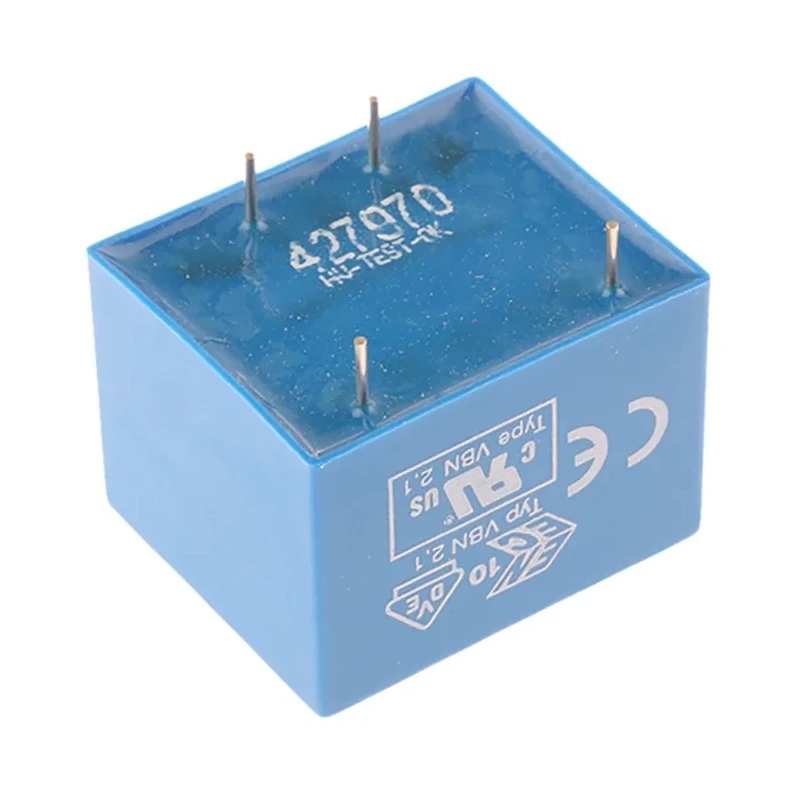

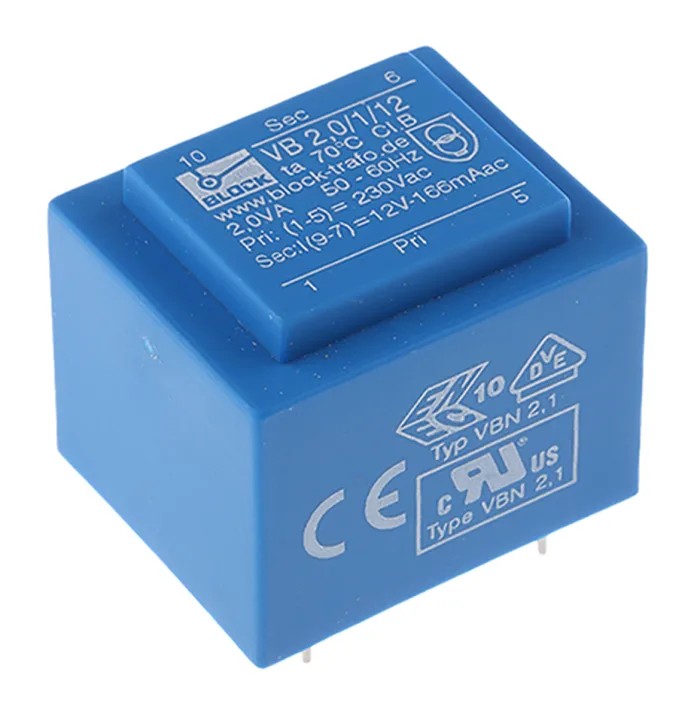

Block PCB Transformer 12 V ac 1 Output Pin Mount 2 VA with ENEC 10 (VDE), C-UL-US Approvals VB 2,0/1/12

Block VB 2,0/1/12 PCB Transformer is a high-quality 2 VA power transformer designed for printed circuit board mounting with a single 12 V ac output output pin. It operates on a standard 230 V ac primary voltage, catering to industrial and consumer electronics applications requiring reliable voltage transformation.

This transformer belongs to the VB 2.0/1/12 series and is engineered for compactness, featuring dimensions of 32.3 mm in length, 27.3 mm in width, and 26.8 mm in depth, facilitating easy integration into PCB assemblies.

The device ensures safety through its 5000V isolation voltage rating and meets internationally recognised approvals such as ENEC 10 (VDE) and C-UL-US, making it compliant with rigorous electrical safety standards.

Its design incorporates vacuum epoxy resin moulding to UL94-V0 flame retardant standards, and double-section glass fibre reinforced polyamide bobbins for durability and thermal stability under operating temperatures up to 70 degrees Celsius.

The transformer supports a minimum frequency of 50 Hz and a maximum of 60 Hz, making it suitable for worldwide power systems. It delivers 52% efficiency while maintaining low inter-winding capacitance and minimized radiated noise, critical for sensitive electronic equipment.

Its pin mount configuration provides a secure and straightforward method of PCB attachment. The product is inherently short circuit proof, enhancing reliability and long-term performance in electronic circuits.

Primary voltage rating of 230 V ac for mains connectivity. Single 12 V ac output with 2 VA power capacity. Compact PCB mount form factor. Certified to ENEC 10 (VDE) and C-UL-US standards. 50-60 Hz frequency compatibility for global use.

Fire-retardant vacuum epoxy resin moulding. Glass fibre reinforced polyamide bobbins for strength. Low noise and low capacitance design. Maximum operating temperature of 70°C. 5000 V isolation voltage for enhanced safety.

Produced in Germany, the Block VB 2,0/1/12 PCB Transformer is ideal for industrial electronics, power supply units, instrumentation, and general electronic applications requiring dependable and safe voltage transformation.
