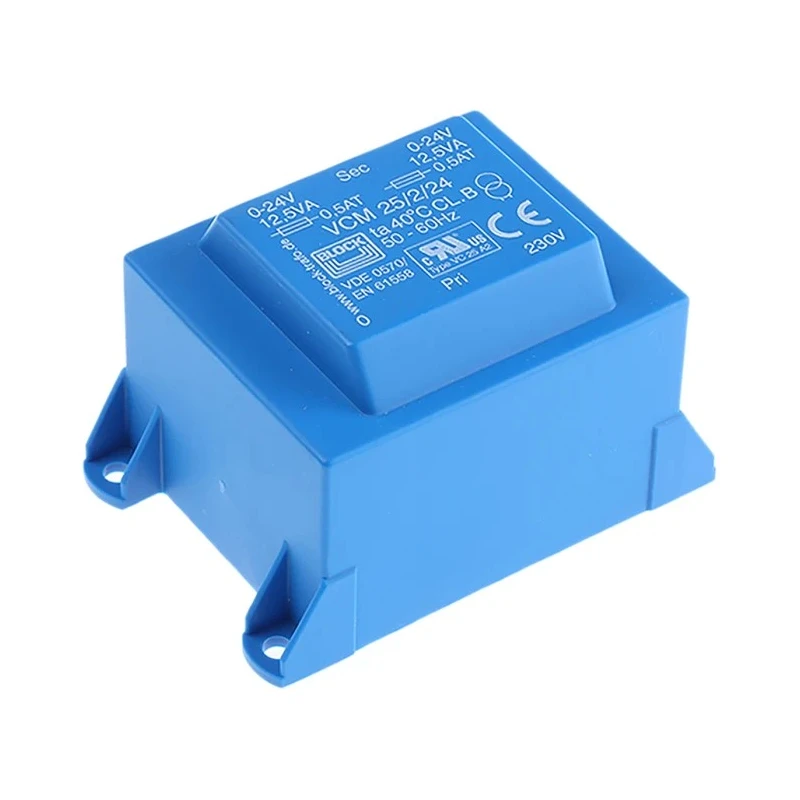

Block PCB Transformer 230 V ac Primary, 24 V ac Dual Output, Through Hole Mount, 25 VA VCM 25/2/24

Free Delivery in India | Lowest Global Shipping Charges

Block PCB Transformer 230 V ac Primary, 24 V ac Dual Output, Through Hole Mount, 25 VA VCM 25/2/24

Name: Block PCB Transformer 230 V ac Primary, 24 V ac Dual Output, Through Hole Mount, 25 VA VCM 25/2/24
Brand: Block
SKU: 327854
Price: 59.37 USD
Availability: InStock



Category PCB Transformer Brand Block Condition New

Specifications

Country of Origin	Germany
Brand	Block
Efficiency	82%
Length	81.2mm
Model	VCM 25/2/24
Depth	55mm
Gross Weight	610g
Width	49.2mm
Mount Type	Through Hole
Maximum Operating Temperature	40°C
Number of outputs	2
Winding Type	Single Primary, Dual Secondary
Standards/Approvals	VDE, UL
Number of Pins	6
Primary Voltage	230 V ac
Secondary Voltage	24 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz

Key Features

Through hole mount design ensures secure PCB attachment.
Single primary winding with dual secondary windings for flexible connection.
Vacuum resin moulded to UL94-V0 rating for enhanced safety and durability.
Low inter-winding capacitance reduces electromagnetic interference and noise.
Operates efficiently at 82% within frequency range of 50 Hz to 60 Hz.
Maximum operating temperature rated at 40°C for stable performance.
Certified with VDE and UL approvals ensuring international compliance.
Compact dimensions suitable for PCB integration with six-pin configuration.

Product Description

Block VCM 25/2/24 PCB Transformer is a through hole mount transformer designed for electronics and electrical applications requiring reliable power conversion. It features a 230 V ac primary voltage and two 24 V ac secondary outputs capable of delivering 25 VA of power. This transformer is vacuum resin moulded to UL94-V0 standards, ensuring mechanical robustness and flame retardance.

The unit operates efficiently at 82% within a frequency range of 50 to 60 Hz and has a maximum operating temperature of 40°C. The single primary with dual secondary windings provides options for series or parallel connection, facilitating adaptable circuit designs. Low inter-winding capacitance and minimal radiated noise reduce interference, critical in sensitive electronic environments.

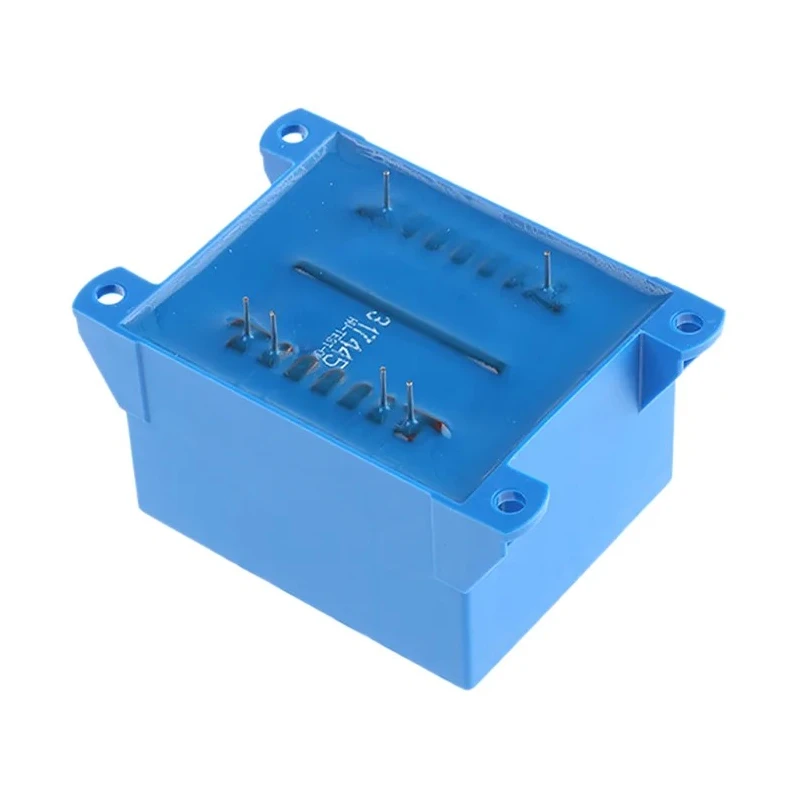

Its dimensions (81.2 mm length, 49.2 mm width, 55 mm depth) and six-pin through-hole mounting make it suitable for PCB integration. The transformer complies with VDE and UL standards, with robust electrical and flash testing performed during manufacturing. Additional mounting points improve board security for the 25 and 36 VA variants.

Typical applications include use in industrial electronics, power supply units, HVAC controls, and manufacturing automation systems where compact and efficient transformer solutions are necessary.

Manufactured in Germany, this transformer guarantees premium quality and operational reliability. Through hole mount design ensures secure PCB attachment. Single primary, dual secondary windings for flexible connection. Vacuum resin moulded to UL94-V0 rating for safety.

Low inter-winding capacitance reduces noise. Operating frequency from 50 Hz to 60 Hz with 82% efficiency. Maximum operating temperature 40°C. VDE and UL approved for compliance. Compact size for PCB integration. Manufactured in Germany with quality testing.
