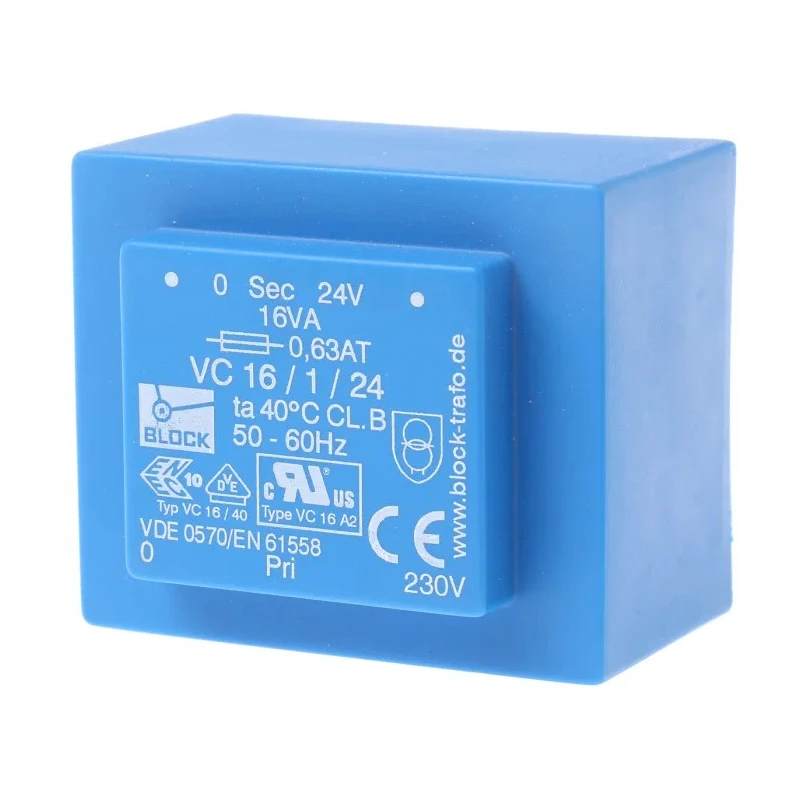

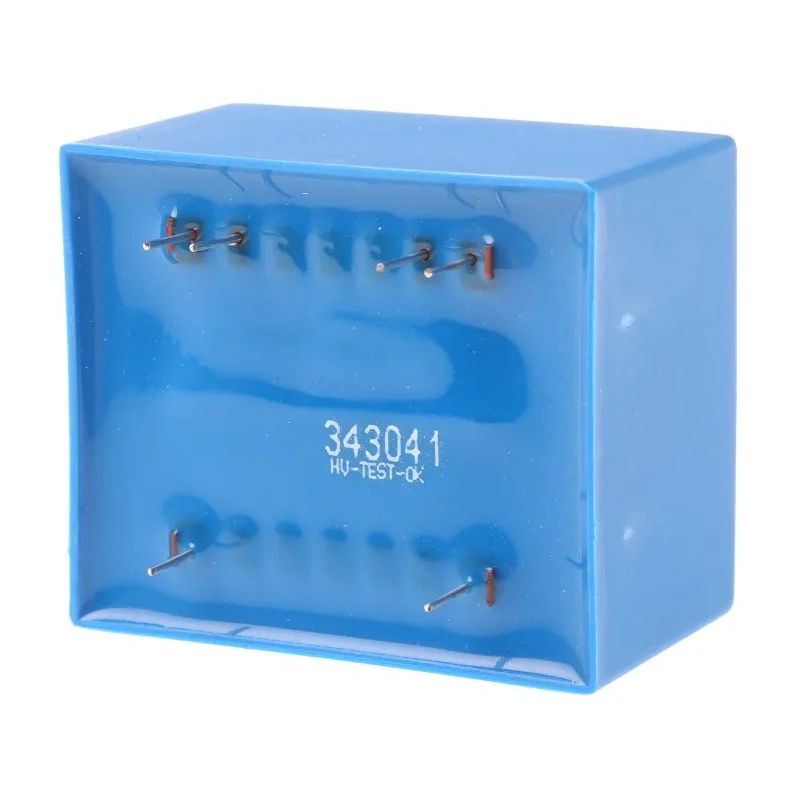

Block PCB Transformer 230 V ac Primary 24 V ac Secondary 16 VA Pin Mount VC 16/1/24

Block VC 16/1/24 PCB Transformer is designed for electronic applications requiring converting 230 V ac primary voltage to 24 V ac secondary output with a power capacity of 16 VA. This pin mount transformer is vacuum resin moulded to meet UL94-V0 flame retardant standards, offering excellent electrical and mechanical protection for prolonged device lifespan.

The transformer features a low inter-winding capacitance and low radiated noise, making it ideal for sensitive electronic circuits. It provides a high isolation voltage of 5000 V, ensuring personnel safety and device protection under demanding conditions. The unit is 100% electrical and flash tested to guarantee quality and reliability.

Compliance with global standards such as ENEC 10 (VDE) and C-UL-US certifications confirms its suitability in industrial, laboratory, and commercial electrical applications. Operating efficiently at 76% efficiency and capable of functioning under a maximum ambient temperature of 40°C, this transformer supports reliable power supply and signal integrity.

Physical dimensions measure 57mm in length, 48mm in width, and 39mm in depth, making integration into printed circuit boards compact and straightforward. The single secondary output winding simplifies connectivity and maintains optimal performance.

This transformer is especially suited for use in power supplies, control systems, and various electronic instrumentation within industrial, manufacturing, HVAC, and laboratory environments. The pin mount configuration ensures secure fitting to prevent mechanical failure from vibration or movement.

Pin mount PCB transformer with 230 V ac primary and 24 V ac single output. 16 VA rated power suitable for moderate load requirements. Vacuum resin moulded body with UL94-V0 rated flame resistance. High isolation voltage of 5000 V for enhanced safety.

Certified under ENEC 10 (VDE) and C-UL-US standards. Operates efficiently at 76% with low noise and low capacitance. Compact size: 57 x 48 x 39 mm for PCB mounting. Maximum operating temperature of 40°C for stable performance.
