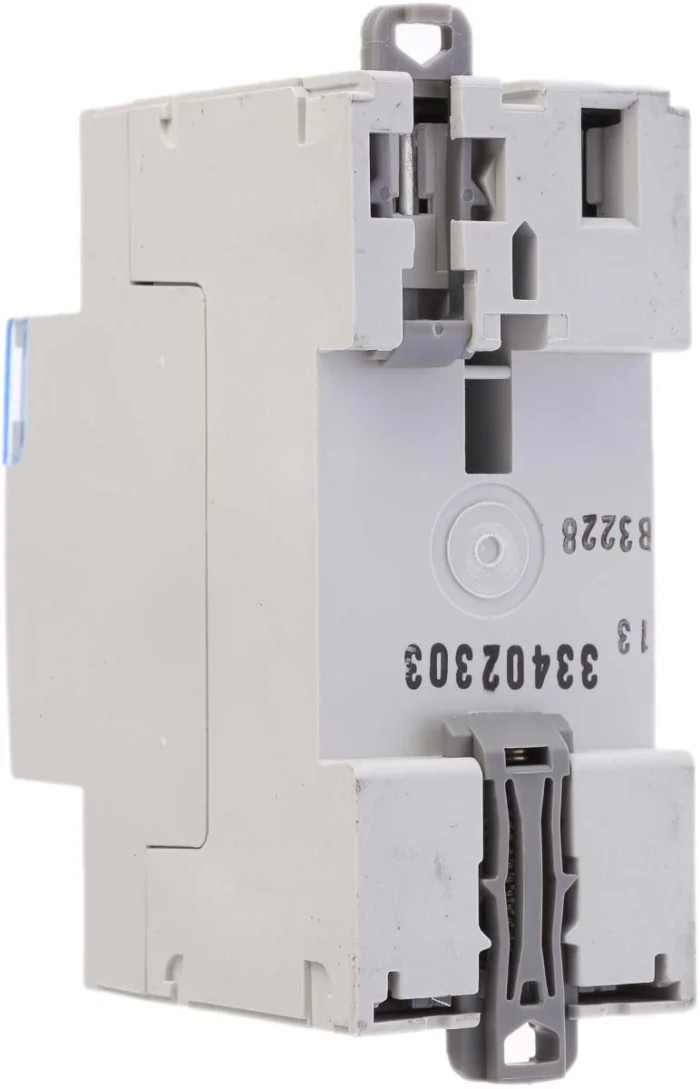

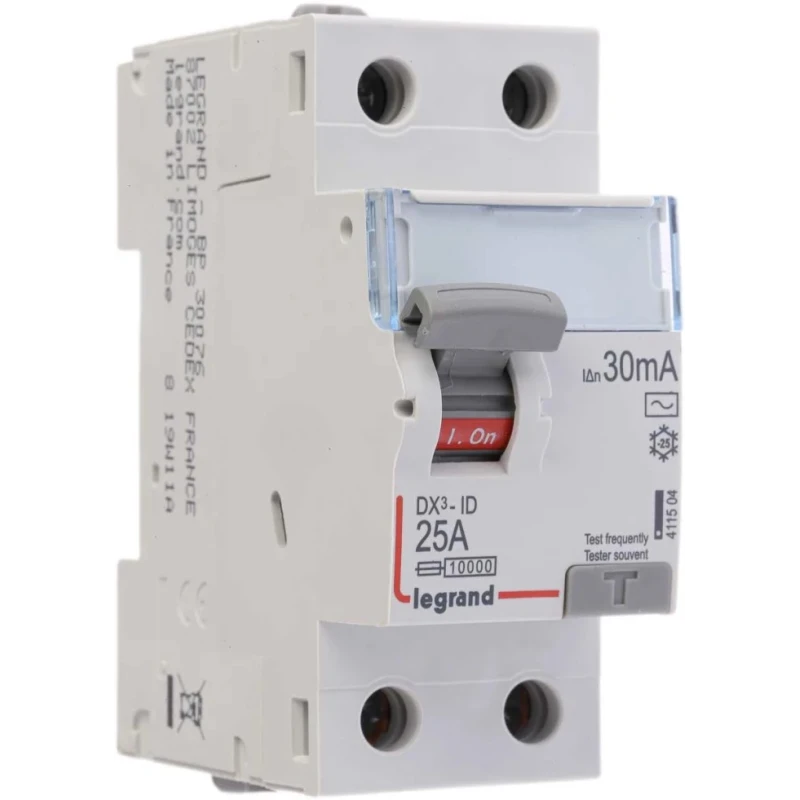

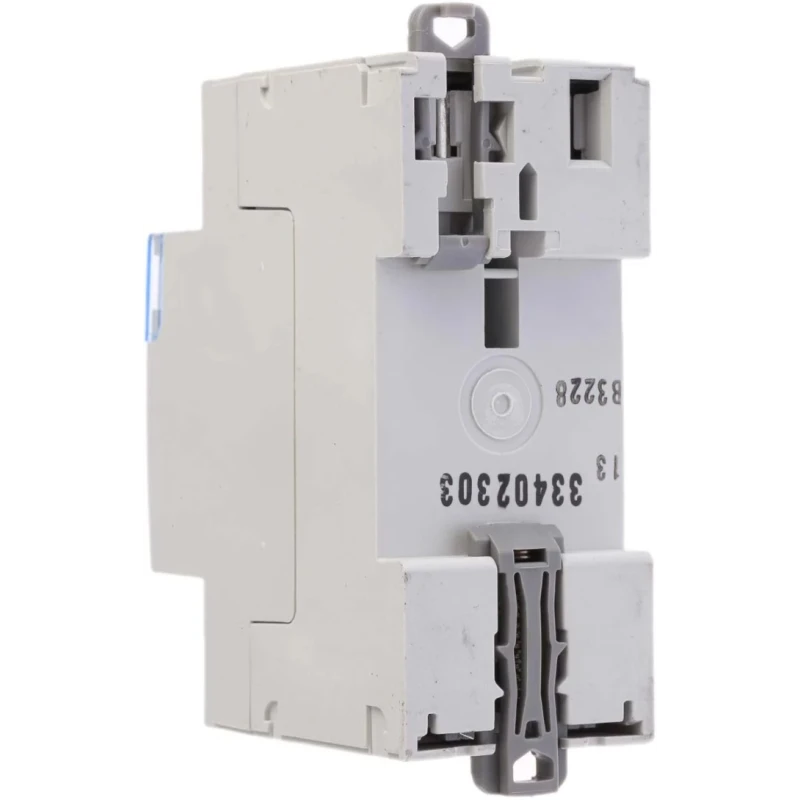

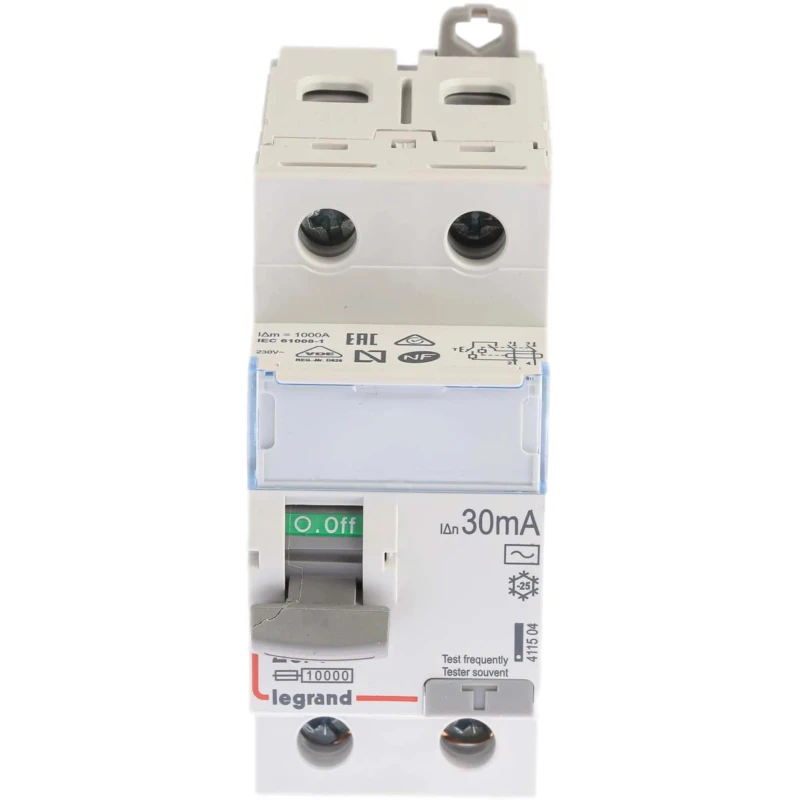

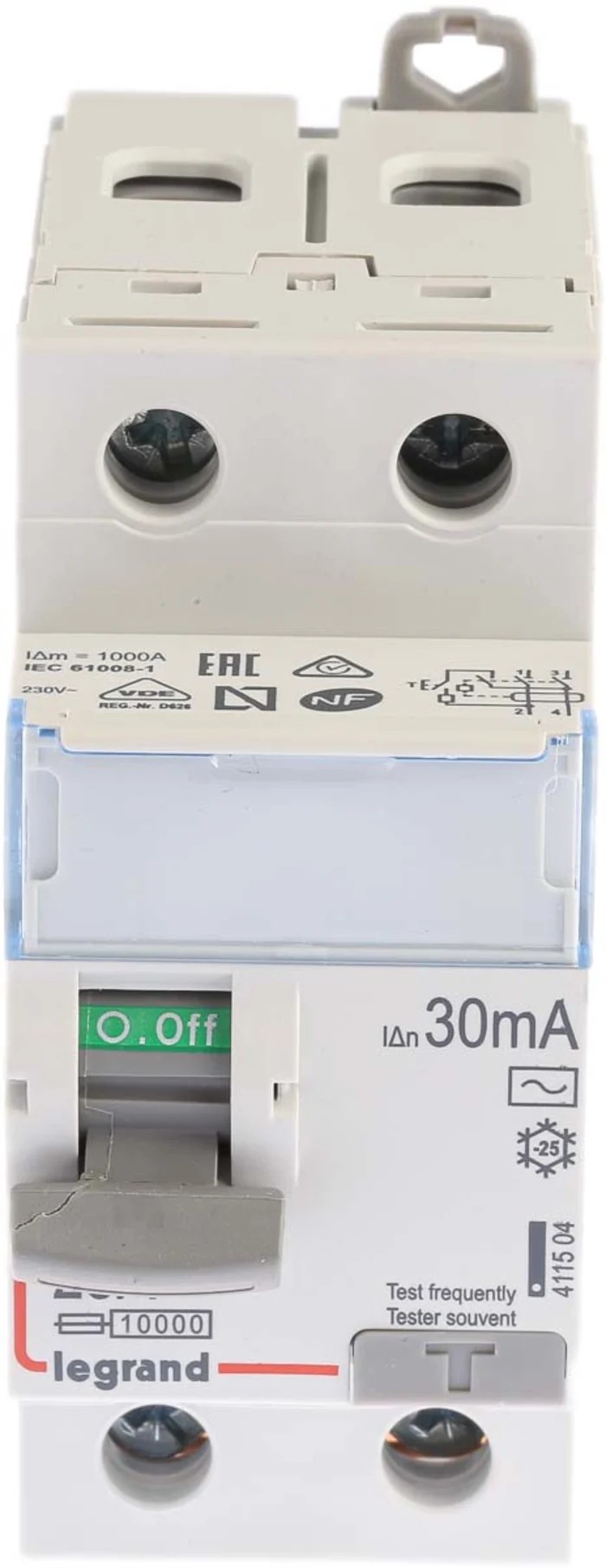

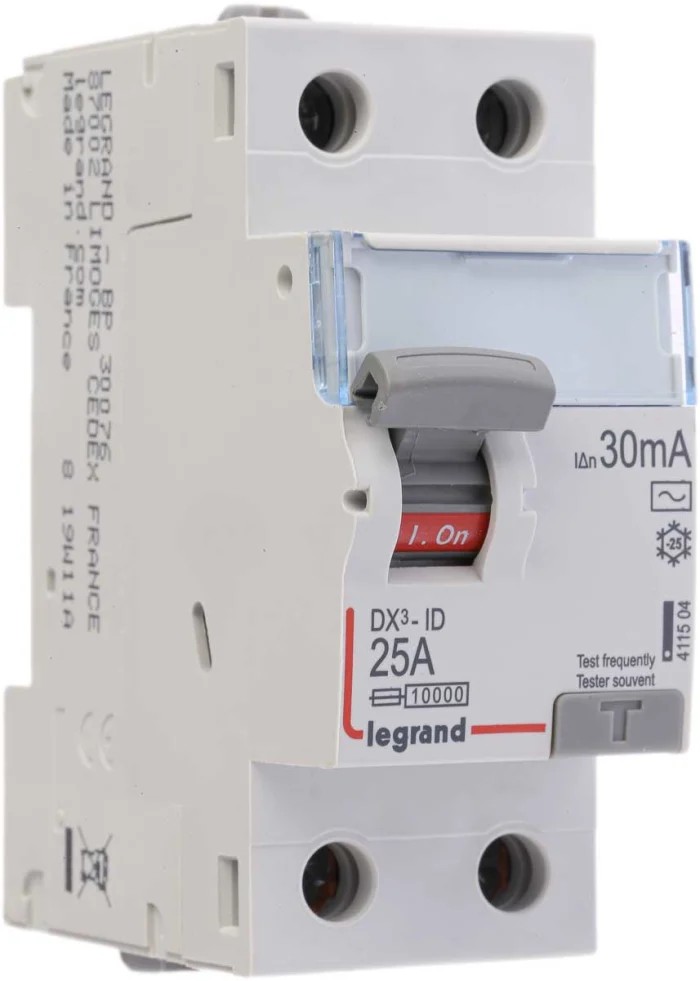

Legrand DX3 Series Residual Current Device 25A 1-Pole 30 mA Type AC 10 kA 230V AC 4 115 04
Specifications
| Country of Origin | France |
|---|---|
| Range | DX |
| Brand | Legrand |
| Model | 4 115 04 |
| Mount Type | DIN Rail |
| Current Rating | 25A |
| Series | DX3 |
| Terminal type | Screw |
| Breaking Capacity | 10kA |
| Number of Poles | 1 |
| Standards/Approvals | RoHS, EN 60947-2 |
| Rated AC Voltage | 230V ac |
| Tripping Characteristics | Type AC |
| Reset Actuator Type | Automatic |
| Trip Sensitivity | 30mA |
| Break Time | Instantaneous |
| Earth Leakage Protection Type | AC |
| AC type | detect AC component faults |
| A type | detect AC and DC component faults |
| Legrand 25 A RCD, Trip Sensitivity 30mABrand | Legrand |
| 2 pole ac sensitive RCD,30mA 25ABrand | BACO |
Key Features
- Designed for protection against earth leakage currents in residential, commercial, and industrial installations.
- Equipped with screw terminals and designed for DIN rail mounting for easy installation.
- Trip sensitivity of 30 mA ensures rapid disconnection during fault conditions.
- Complies with RoHS and EN 60947-2 standards ensuring reliability and safety compliance.
- Instantaneous break time for immediate circuit interruption upon fault detection.
- Automatic reset actuator provides quick recovery after fault clearance.
- Rated for an AC voltage of 230V AC suitable for various electrical systems.
Product Description
Legrand 4 115 04 is a DX3 Series Residual Current Device (RCD) designed to provide electrical safety by detecting earth leakage faults. This 25A, 1-Pole device features a trip sensitivity of 30 mA and Type AC tripping characteristics, making it ideal for residential, commercial, and industrial electrical circuits operating at 230V AC.
The device features an instantaneous break time allowing rapid disconnection upon detecting leakage currents, enhancing the protection of users and equipment. It is mounted on a DIN rail and equipped with screw terminals, facilitating secure and easy installation.
Compliant with RoHS directives and EN 60947-2 standards, it meets stringent safety and quality levels required in modern electrical installations. Its breaking capacity of 10 kA supports high fault current interruption capability, ensuring robustness under severe electrical faults.
The automatic reset actuator simplifies device handling after tripping events, reducing downtime and maintenance efforts. This RCD is designed to detect AC component faults to safeguard equipment and personnel effectively.
Ideal for use in industrial automation, building electrical systems, HVAC installations, and water treatment plants, this device enhances overall electrical safety and reliability. Its country of origin is France, reflecting the quality manufacturing standards of Legrand.
Designed for protection against earth leakage currents in residential, commercial, and industrial installations. Equipped with screw terminals and designed for DIN rail mounting for easy installation. Trip sensitivity of 30 mA ensures rapid disconnection during fault conditions.
Complies with RoHS and EN 60947-2 standards ensuring reliability and safety compliance. Instantaneous break time for immediate circuit interruption upon fault detection. Automatic reset actuator provides quick recovery after fault clearance.
Rated for an AC voltage of 230V AC suitable for various electrical systems. Browse more Residual Current Devices and related electrical protection products at EnvMart for superior quality and trusted performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 25A.
The trip sensitivity is 30 mA, ensuring rapid disconnection during fault conditions.
It has a breaking capacity of 10 kA, which supports high fault current interruption capability.
This Residual Current Device is designed for DIN rail mounting, facilitating easy installation.
It complies with RoHS directives and EN 60947-2 standards, ensuring reliability and safety compliance.
The rated AC voltage for this model is 230V AC, making it suitable for various electrical systems.
This model features Type AC tripping characteristics, designed to detect AC component faults.
Yes, it is equipped with an automatic reset actuator for quick recovery after fault clearance.
It has an instantaneous break time, allowing immediate circuit interruption upon fault detection.
It is equipped with screw terminals, which provide a secure connection.
This device is manufactured in France, reflecting the quality standards of Legrand.
It is ideal for use in residential, commercial, and industrial electrical circuits, including HVAC installations and water treatment plants.
