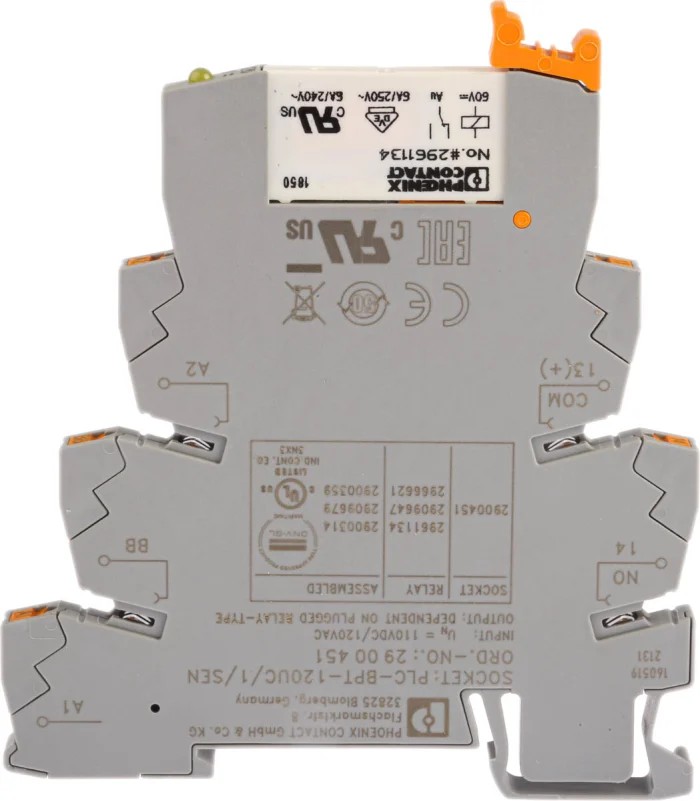

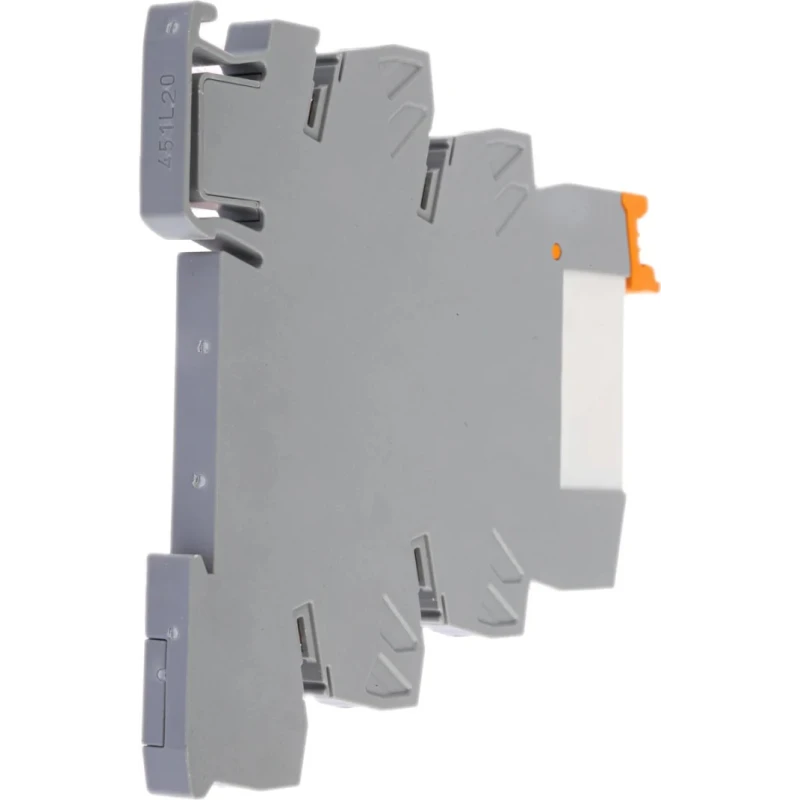

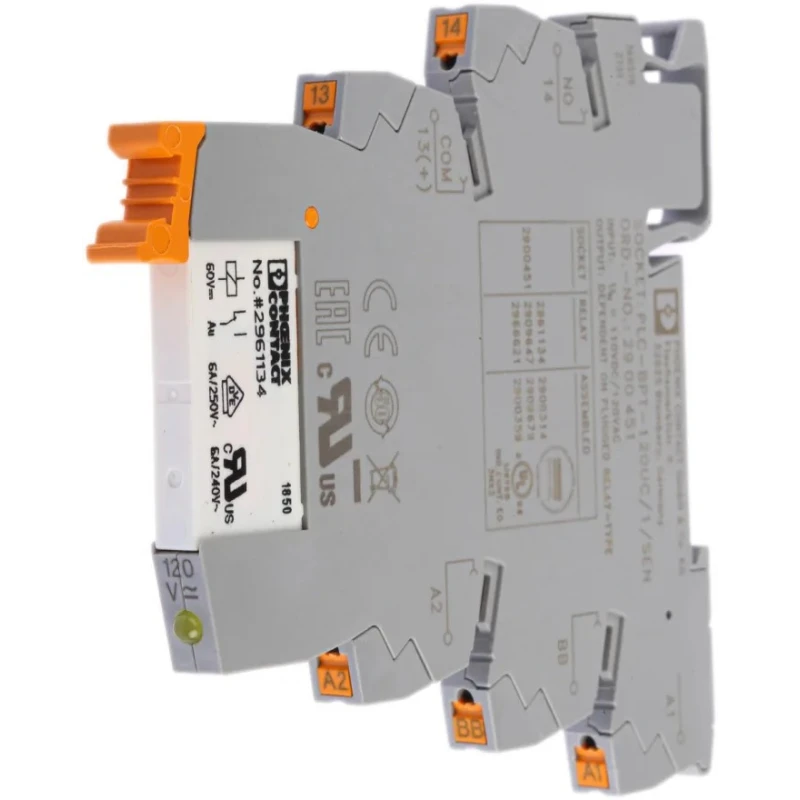

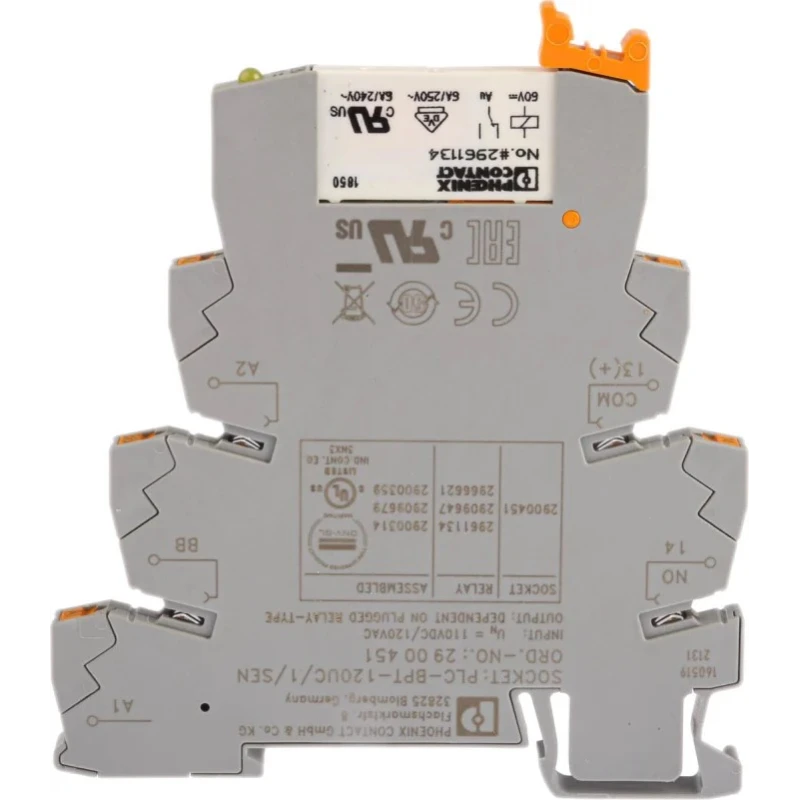

Phoenix Contact Interface Relay DIN Rail 110V AC/DC Coil SPST 3.5mA 10A Gold Plated 2900314

Phoenix Contact 2900314 Interface Relay is a DIN rail mount electromechanical relay with a 110V AC/DC coil voltage and SPST contact configuration intended for industrial automation, electrical control, and signal conditioning applications.

This miniature relay features a multi-layer contact system with a single Normally Open (N/O) contact, providing reliable switching capabilities suitable for both AC and DC loads. Its slim profile and yellow LED operating voltage display improve usability and monitoring.

The relay module integrates push-in connection terminal blocks and allows fast plug-in connection for system cabling, ensuring efficient and secure installation in control panels and industrial systems.

With a coil current of only 3.5mA, it operates efficiently with minimal power consumption. The relay contacts are gold-plated, which enhances contact reliability and durability under varying electrical loads up to 10A.

Designed for harsh industrial environments, it can operate across a wide temperature range from -40°C to 60°C, making it suitable for diverse industrial, manufacturing, HVAC, and automation use cases.

The product meets DIN and IEC standards, assuring compliance with industry safety and performance benchmarks. This relay is critical in controlling and protecting electrical circuits by enabling isolated switching functions and safeguarding against overloads and faults.

The relay features a 110V AC/DC coil voltage with a low coil current of 3.5mA. Single Pole Single Throw (SPST) contact configuration allows for on/off switching functionality. Capable of switching currents up to 10A and voltages of 24V DC and 110V AC.

Equipped with gold-plated contacts for enhanced conductivity and reliability. Compact DIN rail mount design with surface mount terminals for easy installation. Operating temperature range spans from -40°C to 60°C for versatile use.

Complies with DIN and IEC standards ensuring quality and safety. Dimensions include 94mm length, 80mm height, and 6.2mm width.

Suitable for use in industrial automation, power systems, manufacturing plants, and electrical signaling control panels. Browse the Electronics & Electricals category for more Phoenix Contact Interface Relay solutions at EnvMart.
