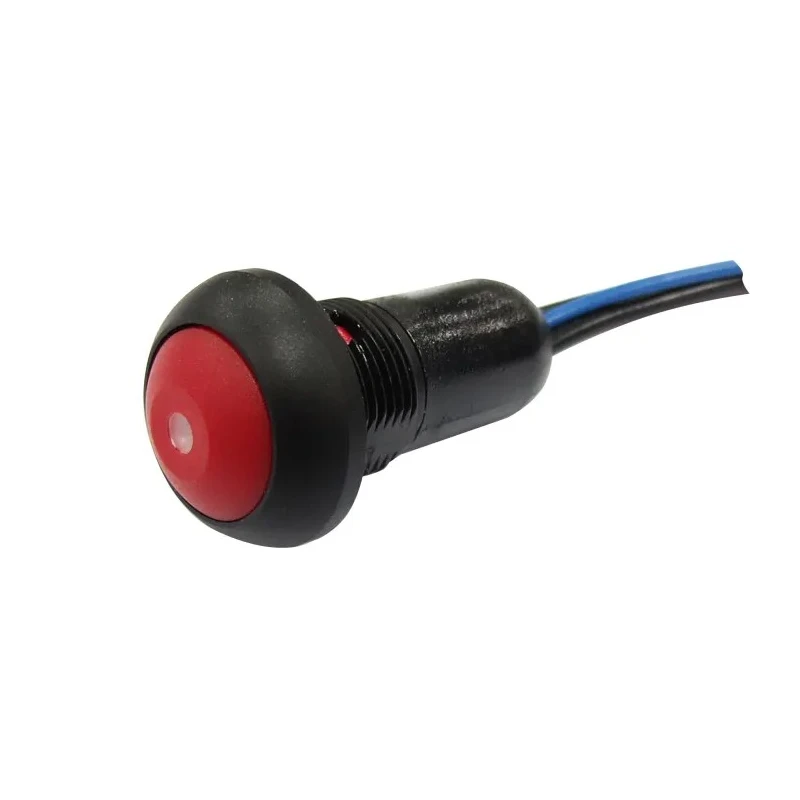

RS PRO Illuminated Push Button Switch Momentary Panel Mount 13.6 mm Cutout SPST Red LED IP67 36V DC 50V AC 209-9057

RS PRO 209-9057 Illuminated Push Button Switch is a high-quality, momentary panel mount switch featuring a 13.6 mm cutout size suitable for precise control in electrical and automation systems. This single-pole, single-throw (SPST) switch includes a flat black actuator and integrated red LED illumination, enhancing visibility in various operational environments.

Designed for demanding industrial applications, the switch construction uses durable polyamide 6/6 with an epoxy seal, providing excellent protection and mechanical reliability. The gold-over-silver contacts deliver low resistance and high reliability for signal transmission, complementing the IP67 rating that protects against dust and water ingress.

Operating voltage ratings of 36V DC and 50V AC, combined with a switch contact current rating of 125mA, make it suitable for a variety of low voltage control circuits. It can withstand temperatures from -35°C to 85°C, ensuring reliable performance in diverse environmental conditions.

This sub-miniature push button switch features a mechanical life expectancy up to one million cycles, supporting long-term applications such as test equipment, telecommunications, networking, and handheld appliances. The solder terminal type enables secure and stable connections for efficient assembly.

RS PRO's commitment to quality is evident in this product's compliance with UL, RoHS, and lead-free standards, adding confidence for use in industrial, laboratory, construction, and commercial settings. The 13.6 mm panel cutout provides easy integration into existing control panels.

The switch features a flat black actuator designed for precision control. Constructed with a polyamide 6/6 material offering durable epoxy sealing and gold-over-silver contacts. Rated for 36V DC and 50V AC operation, suitable for various industrial control applications.

IP67 rated for excellent resistance against dust and moisture ingress. Operates reliably within temperatures ranging from -35°C to 85°C. Mechanical life of up to 1,000,000 cycles ensures long-term durability. Designed for solder terminal type connections for secure mounting.

Typical use includes test equipment, telecommunications, networking, and handheld appliance controls. Explore more products in the Push Button Switch category on EnvMart to find the ideal switch solutions tailored to industrial and commercial requirements.
