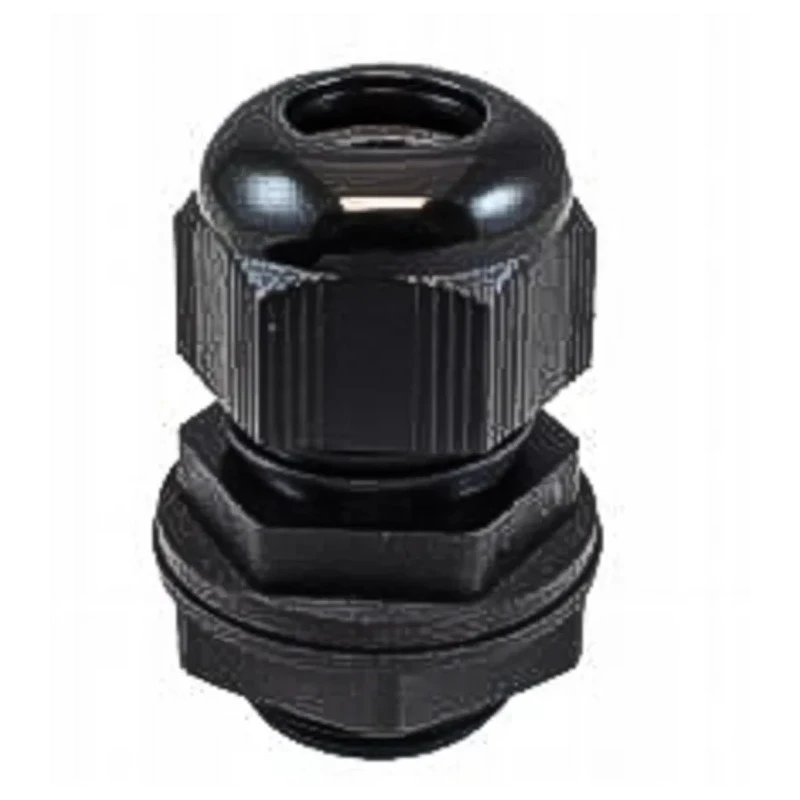

Alpha Wire FIT Wire Management Series Black Polyamide 6 Cable Gland PG11 Thread Size 5-10 mm IDC Range IP68 IP66

Alpha Wire PPC11 BK080 FIT Wire Management Series Cable Gland with PG11 Thread is engineered from robust Polyamide 6 material, designed for industrial and commercial cable management applications where environmental protection is critical. It supports cable diameters from 5 mm to 10 mm, providing reliable strain relief and sealing.

The cable gland features an IP68 ingress protection rating, safeguarding against water immersion up to 5 bar for 30 minutes, and an IP66 rating for dust tightness and protection from powerful water jets. Its flammability rating of V2 under UL94 ensures that the material self-extinguishes flames, enhancing operational safety in electrical installations.

Equipped with a chloroprene rubber O-ring and secured by a locknut, this gland ensures a watertight and durable seal around cables. The gland operates reliably across a wide temperature range from -30°C to 150°C, suitable for intermittent high-temperature industrial environments.

Thread specifications include an 8 mm length and an 18.6 mm diameter for compatibility with standard PG11 threaded holes. The product complies with UL and CSA standards, ensuring adherence to recognized quality and safety certifications.

This Alpha Wire cable gland is ideal for use in telecommunications, electrical power, instrumentation, and control systems where durable and water-resistant cable terminations are required. Its robust design and wide temperature tolerance make it suitable for demanding industrial, laboratory, manufacturing, water treatment, and HVAC applications.

Constructed from durable black Polyamide 6 material ensuring longevity and robustness. Suitable for cables with diameters ranging from 5 mm minimum to 10 mm maximum. Rated IP68 to protect against water ingress up to 5 bar for 30 minutes, and IP66 for dust resistance.

Flame retardant with V2 rating according to UL94 standards for enhanced safety. Includes locknut and chloroprene rubber O-ring for secure and watertight cable sealing. Temperature range up to 150°C intermittent, supporting industrial and commercial environments.

Thread diameter is 18.6 mm with an 8 mm thread length for reliable installation. Compliant with UL and CSA certifications ensuring quality and performance standards. Browse our comprehensive range of Cable Glands and fittings at EnvMart for high-quality cable management solutions.
