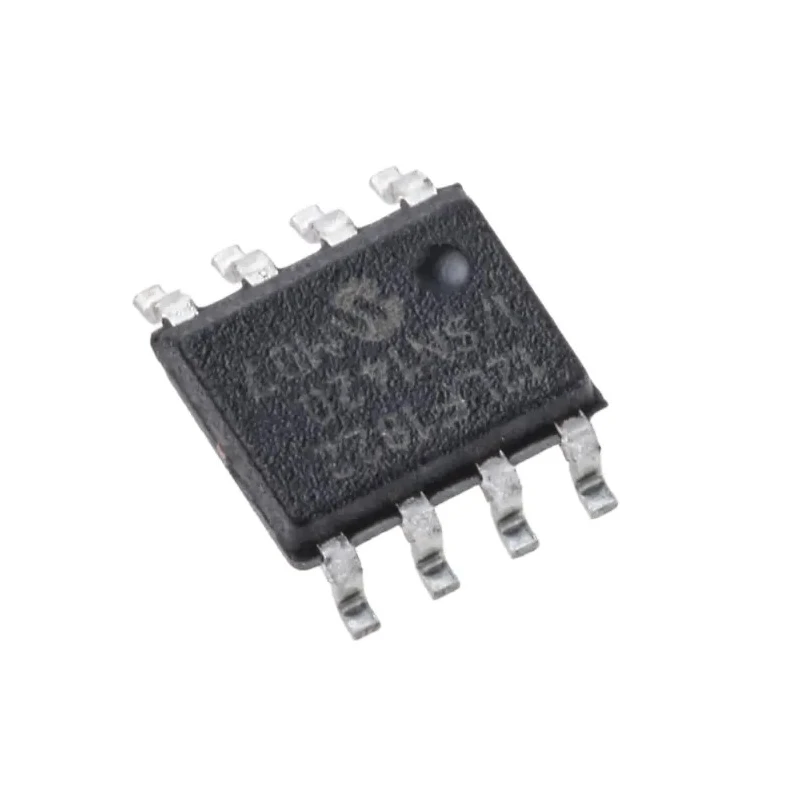

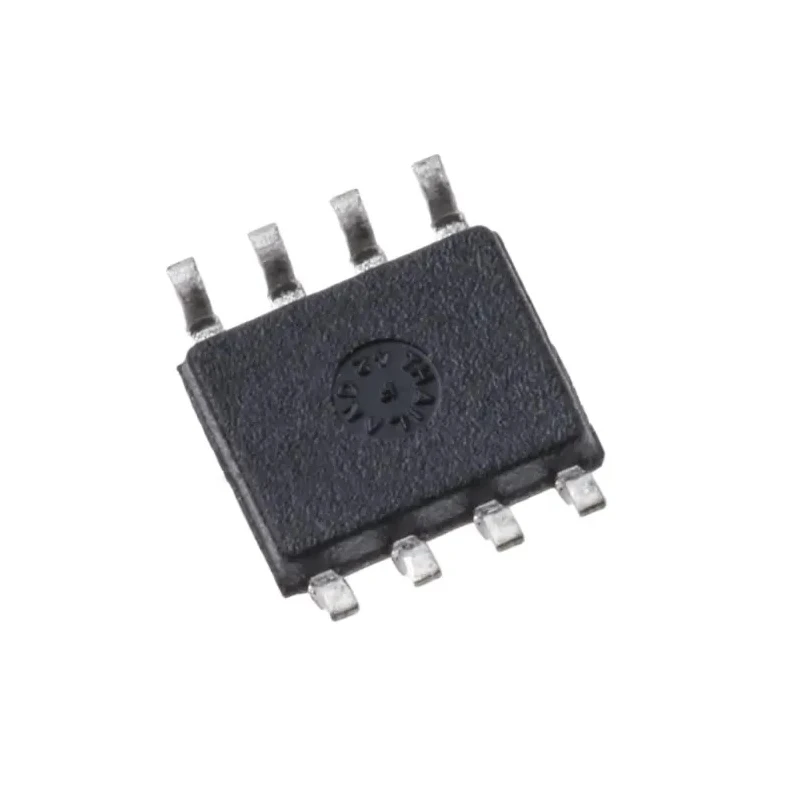

Microchip PIC12LF1822-I/SN 8-Bit PIC12F Microcontroller, 32 MHz Clock, 256B FLASH, 8-Pin SOIC Package
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Length | 4.9mm |
| Model | PIC12LF1822-I/SN |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | PIC12F |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 128bit |
| Pin Count | 8 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 256B |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 6 |
| Analogue Comparators | 1 |
| Maximum Expanded Memory Size | 8bit |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 4 x 10 Bit |
| Program Memory Type | FLASH |
| Microchip, 8 bit PIC, PIC12 Microcontroller, 32 MHz, 256B FLASH, 8-Pin SOICBrand | Microchip |
Key Features
- Operates up to 32 MHz maximum clock frequency.
- Offers 256 bytes of program memory using FLASH technology.
- Equipped with 8 pins in a compact SOIC surface mount package.
- Includes 6 programmable input/output pins for flexible interfacing.
- Features 4 channels of 10-bit ADC for analogue signal conversion.
- Integrated 1 analogue comparator and 3 timers for advanced control functions.
- Supports low voltage operation with supply voltage from 1.8V to 3.6V.
- Provides enhanced capture, compare, and PWM modules.
Product Description
Microchip PIC12LF1822-I/SN is a high-performance 8-bit PIC12F microcontroller featuring a 32 MHz maximum clock speed and 256 bytes of FLASH program memory. Encased in a space-saving 8-Pin SOIC surface mount package, this MCU is designed for compact embedded applications requiring low power consumption and high integration.
This microcontroller operates on supply voltages ranging between 1.8V to 3.6V, making it suitable for battery-powered and low-voltage industrial environments. It includes 6 programmable input/output pins which can interface with various external components and sensors.
The PIC12LF1822-I/SN integrates multiple peripherals such as a 4-channel 10-bit analogue-to-digital converter (ADC) facilitating precise sensor data acquisition, and one analogue comparator for threshold detection applications. Three on-chip timers (two 8-bit and one 16-bit) offer versatile timing and counting capabilities for complex tasks.
Featuring enhanced capture, compare, pulse-width modulation (PWM) modules, and a master synchronous serial port (MSSP) supporting SPI and I2C communication protocols, this MCU is well-suited for diverse embedded control applications.
Its instruction set architecture is reduced instruction set computing (RISC) based, optimized to execute 49 instructions efficiently with up to 8 million instructions per second (MIPS) throughput. The operating temperature range covers from -40°C to 85°C ensuring robustness in various industrial and commercial settings.
Microchip's PIC12 series was the first to offer compact 8-pin microcontrollers with an internal RC oscillator configurable up to 32 MHz, providing accuracy and flexibility. Operates up to 32 MHz maximum clock frequency. 256 bytes program memory with FLASH technology.
8-pin SOIC package suitable for surface mount applications. 6 programmable I/O pins for interfacing. 4-channel 10-bit ADC for high precision analogue inputs. One analogue comparator integrated. Includes two 8-bit timers and one 16-bit timer.
Supports SPI and I2C communication via MSSP. Wide operating voltage from 1.8V to 3.6V. Temperature range from -40°C to 85°C.
This microcontroller is ideal for embedded control, industrial automation, consumer electronics, and automotive sensor interfacing tasks requiring compact size and low power usage.
Explore similar Microcontrollers and components on EnvMart to meet your project demands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a maximum clock frequency of 32 MHz.
It offers 256 bytes of program memory using FLASH technology.
The operating supply voltage ranges from 1.8V to 3.6V.
This unit has a height of 1.5 mm, a length of 4.9 mm, and a width of 3.9 mm.
It supports SPI and I2C communication protocols via the master synchronous serial port (MSSP).
There are 6 programmable input/output pins for interfacing with external components.
The operating temperature range is from -40°C to 85°C.
It includes three timers: two 8-bit timers and one 16-bit timer.
Yes, it features a 4-channel 10-bit analogue-to-digital converter (ADC) and one analogue comparator.
This microcontroller has a pin count of 8.
It uses a reduced instruction set computing (RISC) architecture.
The country of origin for this microcontroller is India.
