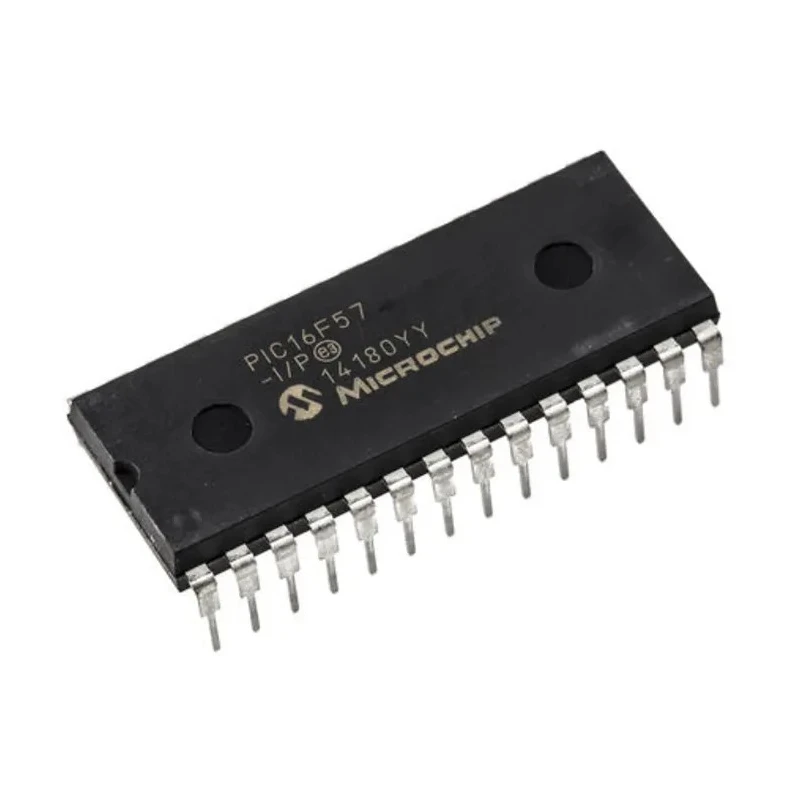

Microchip 8 bit PIC16F Microcontroller 3kB Flash 20 MHz 28-Pin PDIP PIC16F57-I/P
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 4.95mm |
| Length | 39.75mm |
| Model | PIC16F57-I/P |
| Width | 14.73mm |
| Mount Type | Through Hole |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 72bit |
| Interface Type | SPI |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 3kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 33 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
Key Features
- Operates with an 8-bit data bus interface for efficient processing.
- Equipped with 72-bit RAM and 33 programmable I/O pins for versatile functionality.
- Supports SPI interface for serial communications.
- Operating voltage ranges from 2 V to 5.5 V ensuring flexible power supply options.
- Functional within a temperature range of -40°C to 85°C suited for industrial environments.
- Incorporates 1 hardware timer and uses a RISC instruction set architecture for optimized performance.
- Flash type program memory supports in-circuit serial programming for ease of updates.
- Compact physical dimensions with 39.75mm length, 14.73mm width, and 4.95mm height.
Product Description
Microchip PIC16F57-I/P is a high-performance 8-bit PIC microcontroller from the PIC16F series featuring 3kB flash program memory and a maximum clock speed of 20 MHz. It is housed in a 28-pin Plastic Dual In-line Package (PDIP) suitable for through-hole mounting on printed circuit boards for durable and reliable electronic designs.
This microcontroller offers a data bus width of 8 bits and supports SPI interface communication which is ideal for embedded control and automation systems. It includes 33 programmable input/output pins allowing extensive interfacing capabilities.
Built with 72-bit RAM and a single 8-bit timer, it uses a Reduced Instruction Set Computing (RISC) architecture for efficient instruction execution. Its operating voltage varies from 2 volts minimum to a maximum of 5.5 volts with a maximum power dissipation of 1 watt, enabling it to be integrated into a variety of power environments.
Designed for robustness, it functions effectively under a wide temperature range from -40°C to 85°C, making it suitable for automotive and industrial applications. The device supports in-circuit serial programming (ICSP), facilitating firmware updates without hardware removal.
With compact physical dimensions measuring approximately 39.75 mm in length, 14.73 mm in width, and 4.95 mm in height, this microcontroller supports reliable integration in space-constrained applications.
8-bit data bus width supporting various embedded applications. 3kB FLASH memory with in-circuit serial programming capabilities. 33 programmable I/O pins for versatile interfacing. Operating voltage range of 2 V to 5.5 V for power flexibility.
Operating temperature range from -40°C to 85°C suited for challenging environments. Single 8-bit timer for internal timing functions. RISC instruction set architecture for higher efficiency. 28-pin PDIP package designed for through-hole mounting.
Maximum power dissipation rating of 1 watt ensuring thermal safety.
This microcontroller is ideal for applications in electronics manufacturing, embedded systems, automotive controls, and other industrial environments where reliability and performance are critical.
Explore more Microchip Microcontrollers and semiconductor solutions in the Electronics & Electricals section at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz.
It features a program memory size of 3kB.
The operating voltage ranges from 2 V to 5.5 V, allowing for flexible power supply options.
This model includes 33 programmable I/O pins for versatile interfacing capabilities.
It operates effectively within a temperature range of -40°C to 85°C, making it suitable for industrial environments.
It is housed in a 28-pin Plastic Dual In-line Package (PDIP) designed for through-hole mounting.
Yes, it supports the SPI interface for serial communications.
The RAM size of the PIC16F57-I/P is 72 bits.
This model incorporates a single 8-bit timer for internal timing functions.
The maximum power dissipation rating is 1 watt, ensuring thermal safety during operation.
It utilizes a Reduced Instruction Set Computing (RISC) architecture for optimized performance.
The country of origin for this microcontroller is Thailand.
