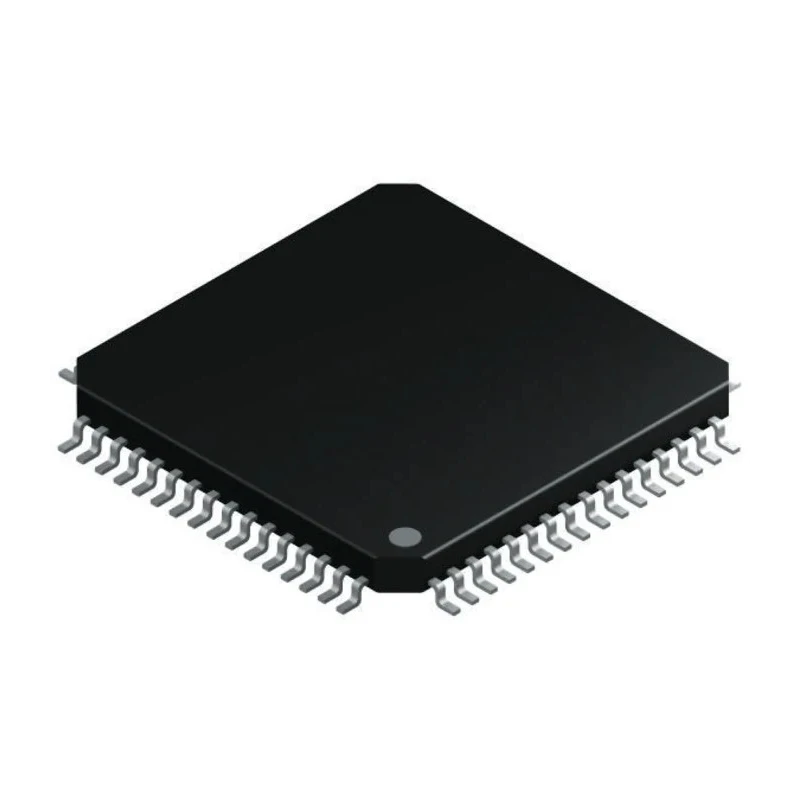

Microchip 16-Bit PIC Microcontroller 32 MHz, 256kB FLASH, 64-Pin TQFP PIC24FJ

Microchip PIC24FJ256DA206-I/PT is a 16-bit PIC microcontroller optimized for embedded system applications requiring moderate processing power and extensive memory resources. It features a maximum clock frequency of 32 MHz and 256kB of Flash program memory paired with 96kB of RAM.

Housed in a compact 64-pin Thin Quad Flat Package (TQFP), it supports surface mount assembly, enabling high-density PCB layouts. The microcontroller utilizes a RISC DSP instruction set architecture, which improves computational efficiency and application versatility.

This device has a data bus width of 16 bits and includes 3 analogue comparators alongside 16 channels of 10-bit ADC, allowing precise analog signal measurement and processing capabilities. Five timers integrated into the design facilitate accurate timing and control tasks essential for embedded control systems.

Electrical characteristics include an operating voltage range from 2.2 V to 3.6 V, making it suitable for various power environments. The device is rated for industrial temperature operation from -40°C to 85°C, ensuring stable performance in harsh environments.

Applications for this microcontroller range from industrial automation and consumer electronics to automotive systems and communication devices. Its robust feature set provides designers with the flexibility to implement complex control and signal processing algorithms effectively.

Package Dimensions: 10 mm length x 10 mm width x 1 mm height. This microcontroller is RoHS compliant, ensuring environmental safety in manufacturing and disposal. Operates on a 16-bit data bus width, enabling efficient processing.

Equipped with 96kB RAM to support complex applications. Includes 3 analogue comparators and 16 10-bit ADC channels for versatile signal processing. Supports five timers and RISC DSP instruction set architecture for advanced control.

Wide operating voltage range from 2.2 V minimum to 3.6 V maximum enhances flexibility. Compact 10 mm length, 10 mm width, and 1 mm height package size fits tight PCB layouts. Industrial grade temperature tolerance from -40°C to +85°C ensures reliability.

Surface mount package type (TQFP) with 64 pins for high-density designs.
