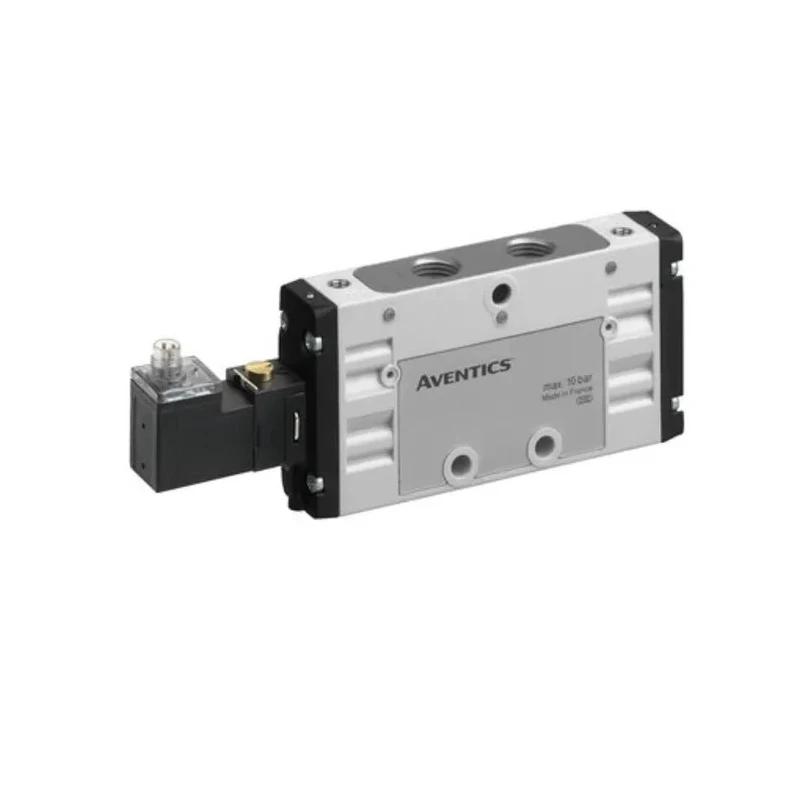

EMERSON ? AVENTICS Pneumatic Solenoid Valve Pilot/Spring G Series 24V DC 10 bar 5-Port 5/2 Function TC15

EMERSON AVENTICS TC15 Pneumatic Solenoid Valve Pilot/Spring G series (Model R422100989) is engineered to provide massive flow rates up to 1500 L/min through a 21 mm wide valve body for all 5/2 functions, optimized for manifold strip mounting. This valve is expertly constructed with a polyamide glass-fibre reinforced body that ensures durability in demanding industrial environments.

The valve employs a spool design that is non-overlapping, allowing precise fluid control and efficient operation. The actuation type is pilot/spring, operated by a 24V DC supply, with an M8 3-pin electrical connection rated at IP65, ensuring protection against dust and water ingress.

Seals made from Acrylonitrile Butadiene Rubber and Hydrogenated Nitrile Butadiene Rubber provide enhanced sealing reliability and chemical resistance. The valve supports a maximum operating pressure of 10 bar and a maximum pilot pressure of 10 bar, with a minimum pilot pressure of -0.9 bar, accommodating various pneumatic system requirements.

This solenoid valve is designed for continuous operation with a 100% duty cycle and includes a manual override with detent for operational versatility. The valve allows an external pilot option enabling vacuum applications and supports compressed air with oil content from 0 to 5 mg/m3. The valve can handle particles up to 5μm, ensuring performance and longevity.

Operating temperature range is from -10°C to 50°C, making it suitable for various industrial, manufacturing, HVAC, and fluid power applications. The valve provides 5 ports and 2 positions (5/2 valve function), enabling it to efficiently control pneumatic circuits.

Product origin is France, ensuring quality manufacturing standards. This product is ideal for industrial pneumatic control systems, automation setups, and fluid power management. Robust polyamide and fibreglass body construction offers durability.

Wide operating temperature and pressure ranges accommodate diverse applications. High flow capacity supports efficient pneumatic system performance. Manual override and external pilot options enhance operational flexibility.

Sealing materials ensure reliable and maintenance-friendly service. Explore more pneumatic valves and control solutions at EnvMart's Industrial Supplies section for fluid power and automation needs.
