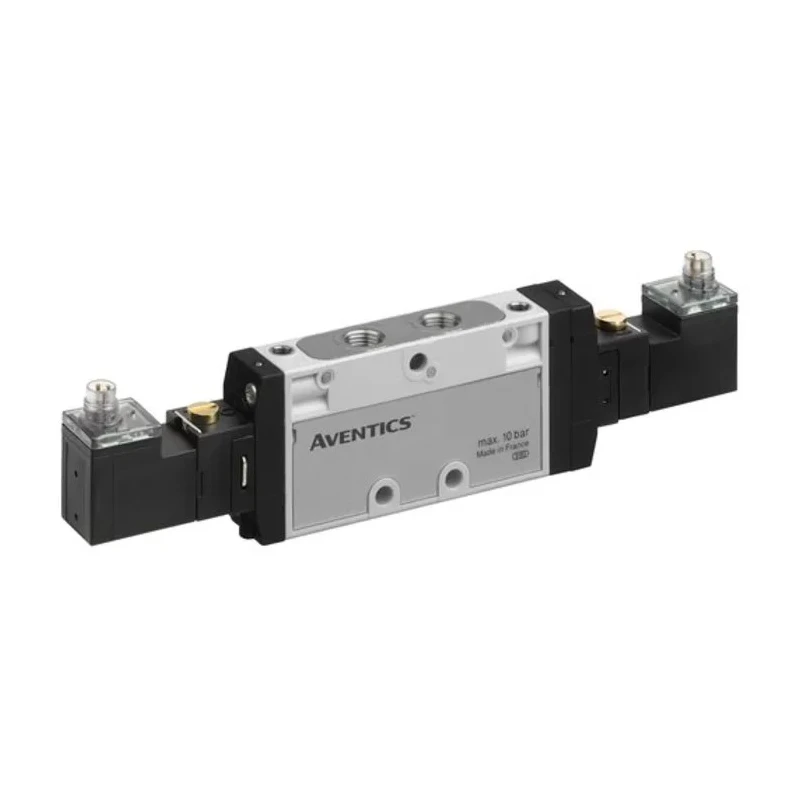

EMERSON ? AVENTICS Pneumatic Solenoid Valve Pilot, 24V DC, 5 Ports, 10 bar Pressure, TC08 Series R422100974
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 24V dc |
| Brand | EMERSON ? AVENTICS |
| Body Material | Fibreglass, Polyamide |
| Maximum Operating Pressure | 10 bar |
| Model | R422100974 |
| Mount Type | Manifold Strip |
| Series | TC08 |
| Number Of Ports | 5 |
| Maximum Operating Temperature | 50°C |
| Thread Size | 1/8 in |
| Number of Positions | 3 |
| Port Size | 1/8 in G |
| Minimum Operating Temperature | -10°C |
| Actuation Type | Pilot |
| Maximum Flow Rate | 700L/min |
| Minimum Pilot Pressure | 3bar |
| Valve Function | Directional Control |
Key Features
- The valve supports a maximum operating pressure of 10 bar for industrial pneumatic systems.
- Constructed with a reinforced fibreglass polyamide body for enhanced durability.
- Operates within a temperature range from -10°C to 50°C suitable for various environments.
- Features 3 valve positions and manifold strip mount type for flexible installation.
- Maximum flow rate of 700 liters per minute ensures efficient air flow control.
- Supports minimum pilot pressure of 3 bar and maximum pilot pressure of 10 bar.
- Includes spool valve with non-overlapping design and manual override with detent.
- Compatible with form 'C' or M8 electrical connections and external pilot vacuum applications.
Product Description
EMERSON AVENTICS R422100974 pneumatic solenoid valve pilot from the TC08 Series is designed for reliable directional control in pneumatic fluid power systems. It operates at 24V DC and features a manifold strip mount with 5 ports and 3 valve positions to support diverse application requirements. Its robust construction uses fibreglass reinforced polyamide providing resistance against wear and extending operational life.
The valve supports a maximum operating pressure of 10 bar and a flow rate of up to 700 liters per minute. It functions effectively in environments with temperatures ranging from -10°C to 50°C, making it suitable for industrial, manufacturing, and automation uses.
With a minimum pilot pressure of 3 bar and maximum pilot pressure of 10 bar, it facilitates precise actuation. The spool valve is non-overlapping to reduce wear and features manual override capabilities with detent for operational flexibility. Electrical connection options include form 'C' or M8 connection types.
The valve construction includes an external pilot option allowing use in vacuum applications. Its compressed air specifications allow an oil content of 0 to 5 mg/m3 and particulate maximum size of 5 microns, assuring clean and efficient performance. The product is rated for continuous 100% duty cycle ensuring dependable long-term usage.
The valve’s reinforced polyamide body ensures durability while maintaining a lightweight profile. Suitable for manifold mounting enabling streamlined pneumatic system configurations. Offers high flow capacity from a compact 17mm wide body for efficient system design.
Designed for industrial, manufacturing, laboratory, and automation fluid power applications.
Originating from France, this EMERSON AVENTICS Pneumatic Solenoid Valve combines reliability and precision suited to rigorous pneumatic control environments. The TC08 Series reputation ensures component quality and operational excellence.
Explore more pneumatic valve solutions in the Industrial Supplies section on EnvMart for compatible components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar.
It operates at a voltage of 24V DC.
This valve features 5 ports.
The maximum flow rate is 700 liters per minute.
It operates effectively within a temperature range of -10°C to 50°C.
The body is constructed from fibreglass reinforced polyamide.
This model is designed for manifold strip mounting.
The minimum pilot pressure for this valve is 3 bar.
It uses pilot actuation for its operation.
Yes, it features a manual override with detent for operational flexibility.
The port size is 1/8 inch G.
This product originates from France.
