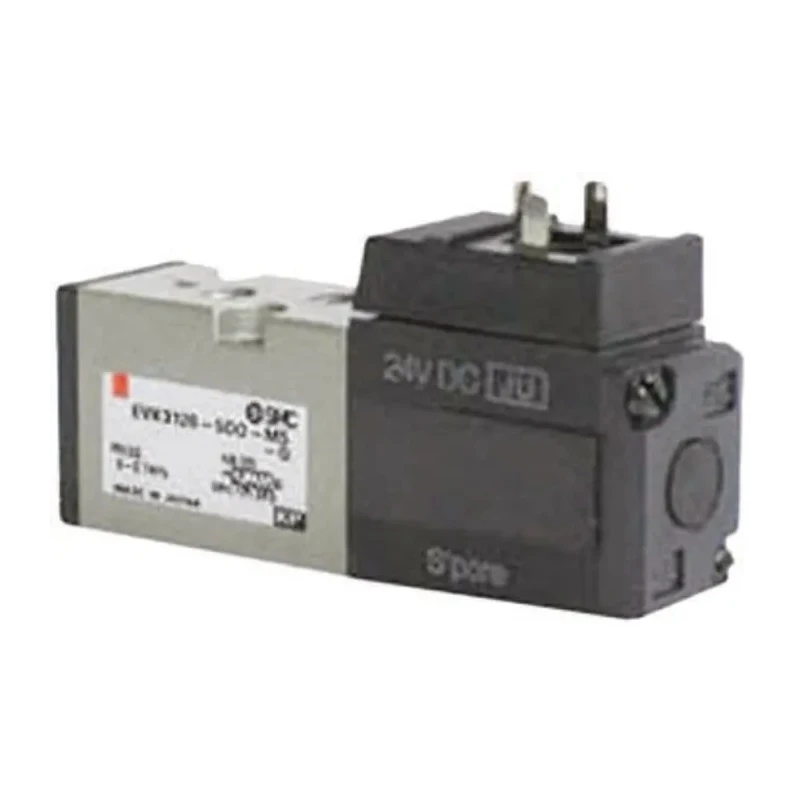

SMC Pneumatic Solenoid Valve 5/2 Solenoid Metric VK3000 Series 24V dc

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 5/2 Solenoid Metric VK3000 Series 24V dc



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	0.7 Mpa
Length	68mm
Model	VK3000
Width	18mm
Mount Type	Stand Alone
Series	VK3000
Number Of Ports	5
Maximum Operating Temperature	50°C
Number of Positions	2
Port Size	M5
Seal Material	Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Maximum Flow Rate	147NL/min
Standards/Approvals	RoHS
Connection Thread Standard	Metric
Minimum Pilot Pressure	0MPa
Valve Function	5/2
Electrical Connection Type	DIN Connector
Solenoid Type	Single
Solenoid Power Consumption	4W

Key Features

This valve has a 5-port, 2-position design suitable for pneumatic control systems.
Operates at 24 volts DC with a solenoid power consumption of 4 watts.
Constructed with a die cast aluminium body and rubber seals ensuring durability.
The valve supports a maximum operating pressure of 0.7 MPa and maximum flow rate of 147 NL/min.
Features metric M5 connection threads with DIN electrical connector for reliable installation.
Maximum operating temperature is 50°C with a minimum operating temperature of -10°C.
Valve length is 68 mm and width is 18 mm, compatible with various system sizes.
Designed as a stand-alone mount type with RoHS compliance and no hazardous area certification.

Product Description

SMC EVK3120-5DO-M5-Q Pneumatic Solenoid Valve 5/2 Solenoid Metric VK3000 Series 24V dc is engineered for reliable automation in pneumatic control systems across industrial, manufacturing, and fluid power sectors.

This valve features a 5-port, 2-position function allowing precise directional control of air flow in pneumatic circuits. It operates efficiently at 24 volts DC with a solenoid power consumption of only 4 watts, ensuring energy-efficient performance.

Manufactured with a durable die cast aluminium body and rubber seal material, the valve is resistant to wear and provides longevity under rigorous operating conditions. Its metric M5 port size and connection threads facilitate seamless integration in standard pneumatic assemblies.

The valve supports a maximum operating pressure of 0.7 MPa with a maximum flow rate of 147 NL/min, making it ideal for moderate-pressure pneumatic applications. The operating temperature range from -10°C to 50°C covers typical industrial environments.

The valve is designed with a DIN electrical connector for secure electrical connections and has a stand-alone mount type for flexible installation. It complies with RoHS environmental standards but does not hold hazardous area certification.

This valve offers a 5-port, 2-position pneumatic control solution. Operates at 24 V dc with 4 W solenoid power consumption. Constructed with die cast aluminium body and rubber seals. Supports maximum pressure of 0.7 MPa and flow rate of 147 NL/min.

Equipped with metric M5 ports and DIN connector. Operates in temperature range -10°C to 50°C. Compact dimensions: 68 mm length and 18 mm width. Stand-alone mount type with RoHS compliance.

This Pneumatic Solenoid Valve is suitable for pneumatic automation, manufacturing equipment, fluid power control, and industrial processes requiring reliable 5/2 valve operation. Explore more SMC pneumatic valves and components on EnvMart for integrated system solutions.
