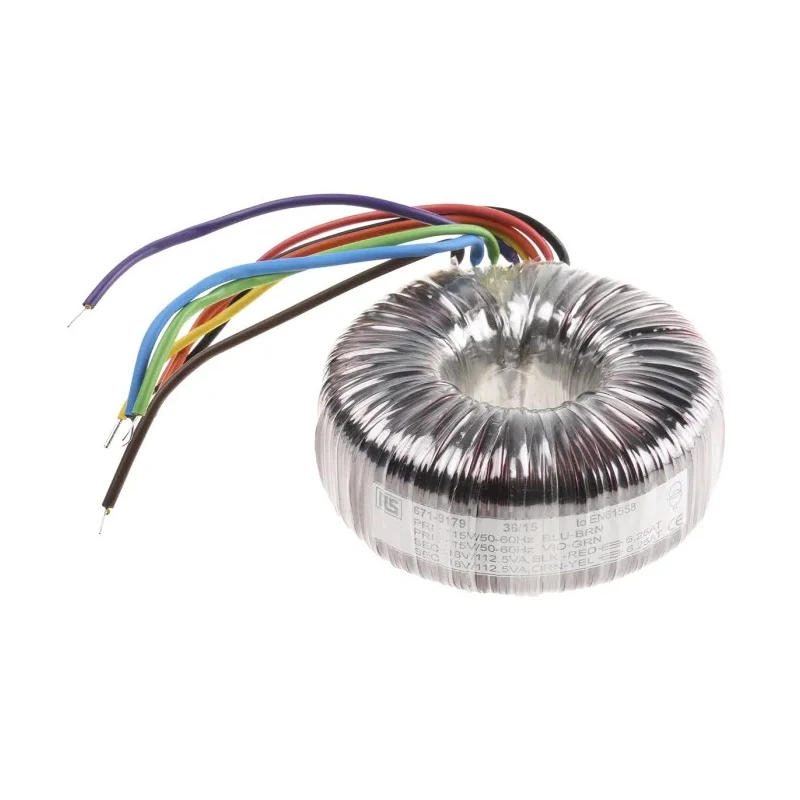

RS PRO Toroidal Transformer 230 V ac Primary, 2 x 18 V ac Secondary, 225 VA Power 671-9179

RS PRO 671-9179 Toroidal Transformer provides reliable voltage conversion with a primary voltage of 230 V ac and dual secondary voltages of 2 x 18 V ac delivering 225 VA power capacity. This transformer is designed with an open wound toroidal core having dual 115V primary windings suitable for 50/60 Hz operation frequency. It features twin secondary windings that can be connected in series, parallel, or used independently to offer versatile electrical outputs.

The transformer is compact and lightweight, boasting a diameter of 120 mm and height of 50 mm, with a total weight of 2.3 kg. The termination type uses high-quality copper conductor for optimal electrical connections. Its design ensures an extremely low radiated magnetic field, minimal hum noise, and low iron loss, contributing to efficient operation and less heat generation during use.

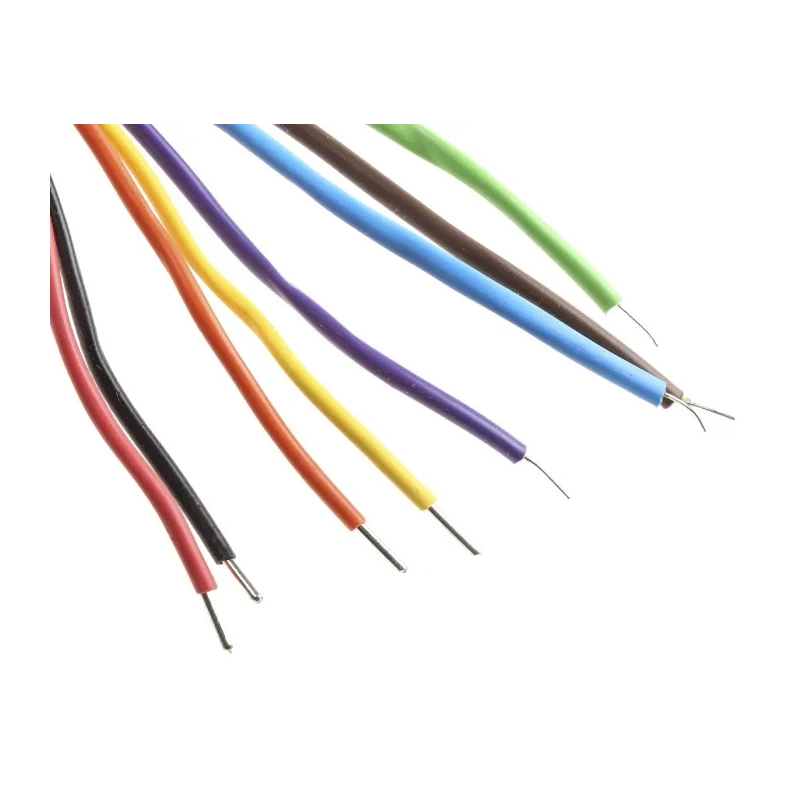

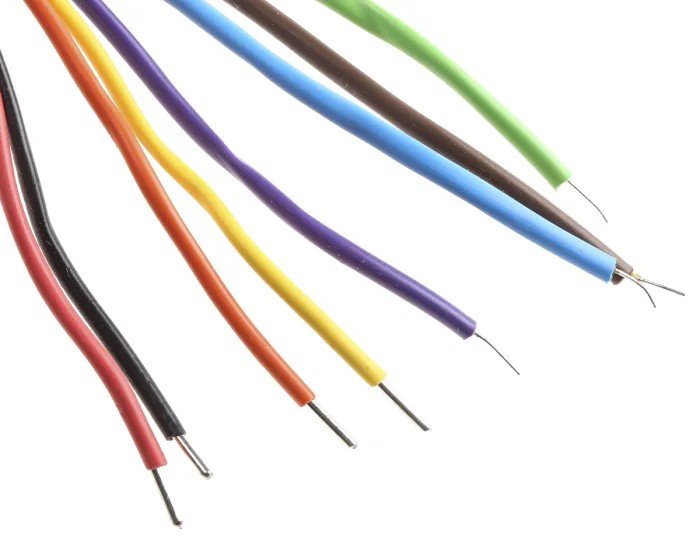

Double insulation on the primary leads enhances user safety and equipment protection. The unit is appropriate for industrial, laboratory, electronic components, and power supply applications where stable and efficient voltage transformation is required.

Note that mounting hardware is not provided and should be acquired separately. Care must be taken to ensure no electrical short circuits caused by mounting bolts contacting metal chassis parts simultaneously. This product is RoHS compliant and complies with relevant quality standards.

Dual 115V primary windings for flexible operation. Two secondary outputs at 18 V ac each with 6.25 A current rating. Compact dimensions allow easy installation in constrained spaces. Copper conductor termination for reliable electrical contact.

Operates at standard frequencies (50-60 Hz) ensuring wide compatibility. Low noise and low iron loss design enhance efficiency. Double insulated primary leads increase safety standards. Suitable for electronic components, power supplies, industrial and laboratory environments.

Lightweight construction improves handling and mounting convenience. Explore more RS PRO electrical transformers and related industrial components on EnvMart for comprehensive solutions.
