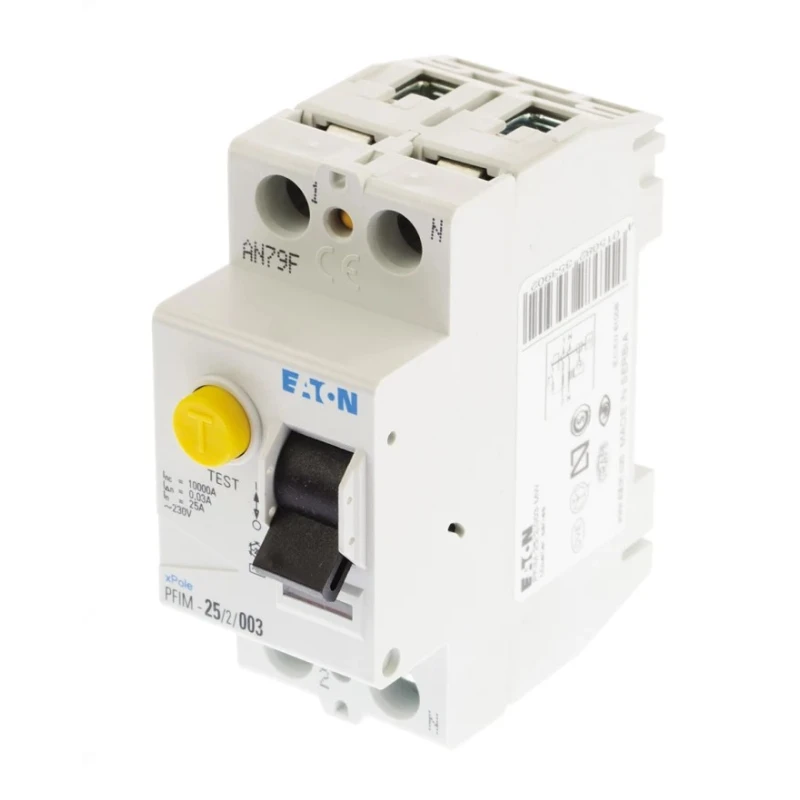

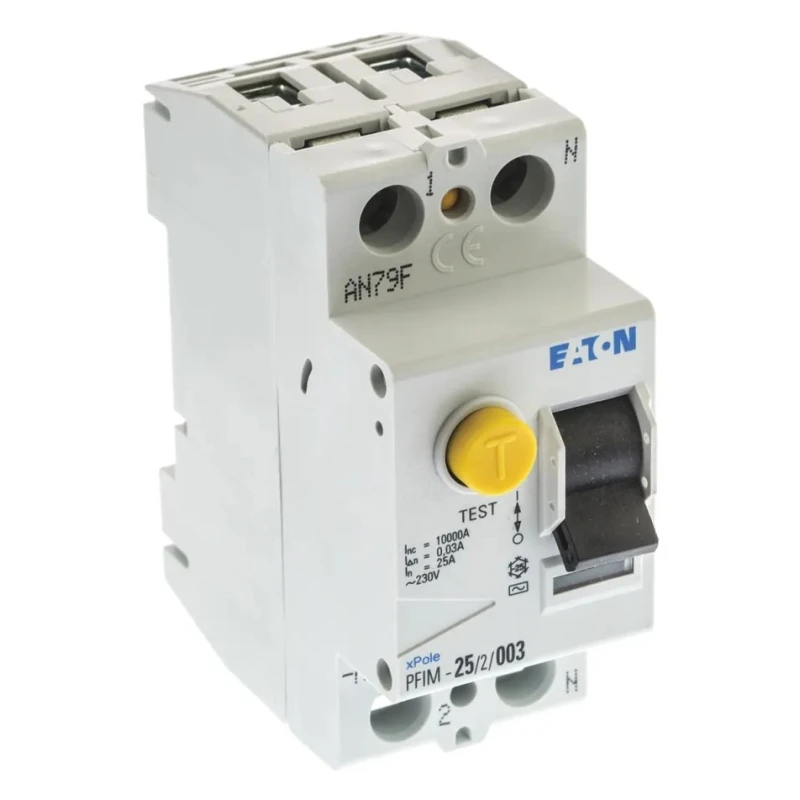

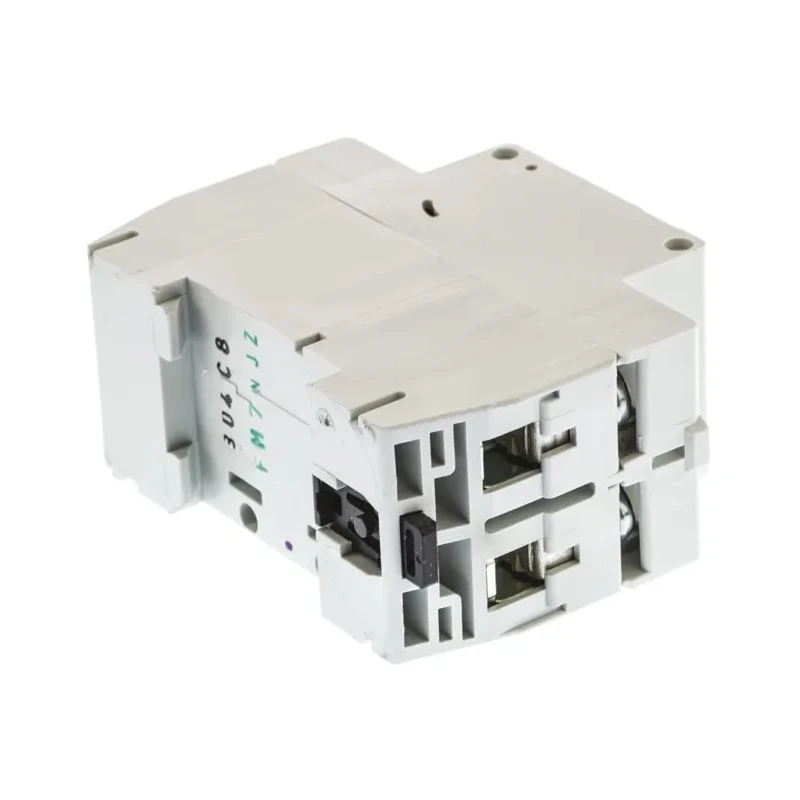

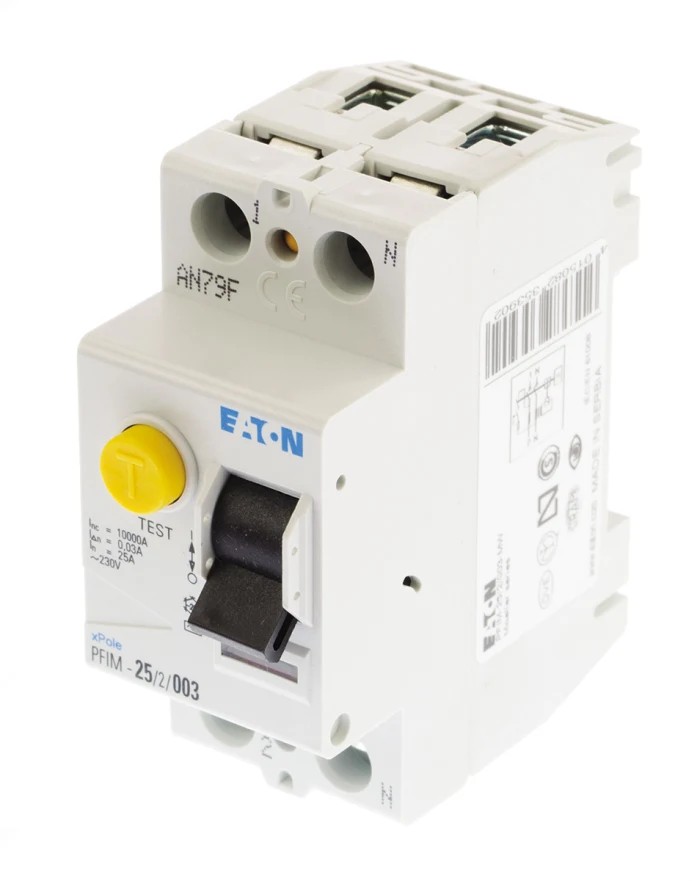

Eaton Xboard Series Residual Current Circuit Breaker 25A 1-Pole 30 mA Type AC 500A 230V AC 235390 PFIM-25/2/003-MW

Eaton 235390 PFIM-25/2/003-MW Residual Current Circuit Breaker (RCCB) is designed for high-performance earth leakage protection in residential, commercial, and light industrial environments. Operating at 230V AC with a 25 amp current rating, this 1-pole device features a 30 mA trip sensitivity with Type AC characteristics, protecting users from AC residual currents and potential electric shocks.

The RCCB features a DIN rail mount type and screw terminal connections, facilitating easy and reliable installation in consumer units and switchboards. Its compact size of 80mm (H) x 70.5mm (D) x 35mm (W) ensures efficient use of space in electrical panels.

This model offers instantaneous break time with a high breaking capacity of 500 amps, ensuring rapid fault clearance and protection against short circuits. The lever reset actuator enables quick manual resetting after fault disconnection, increasing operational convenience.

Constructed to meet IEC/EN 61008 standards, the Eaton RCCB guarantees compliance with international safety and performance requirements. It carries an IP20 protection rating, making it touch-proof and resistant to solid objects larger than 12 mm.

Additional features include an electrical lifespan exceeding 4000 operations and a convenient front-facing test button allowing users to verify functionality before deployment. Operating temperature ranges from -25°C to +40°C, making it suitable for varying environmental conditions in industrial or commercial installations.

25A current rating for heavy-duty protective applications. 1-pole type ensures single-phase protection. 30 mA trip sensitivity for effective earth leakage detection. DIN rail mounting designed for standard electrical panels.

500A breaking capacity for high short-circuit tolerance. IEC/EN 61008 certified for quality and safety assurance. Screw terminals provide secure and straightforward wiring. Compact design optimized for panel space efficiency.

Front test button for simple functionality checks. Wide operating temperature for reliable use in harsh environments.

This Eaton Residual Current Circuit Breaker is ideal for applications requiring precise and reliable earth fault protection in industrial, commercial, and residential electrical systems. Browse related protective devices and circuit breakers in the EnvMart catalog for comprehensive electrical safety solutions.
