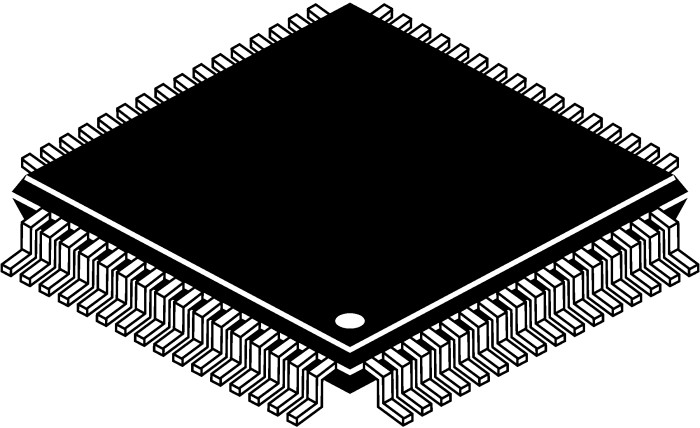

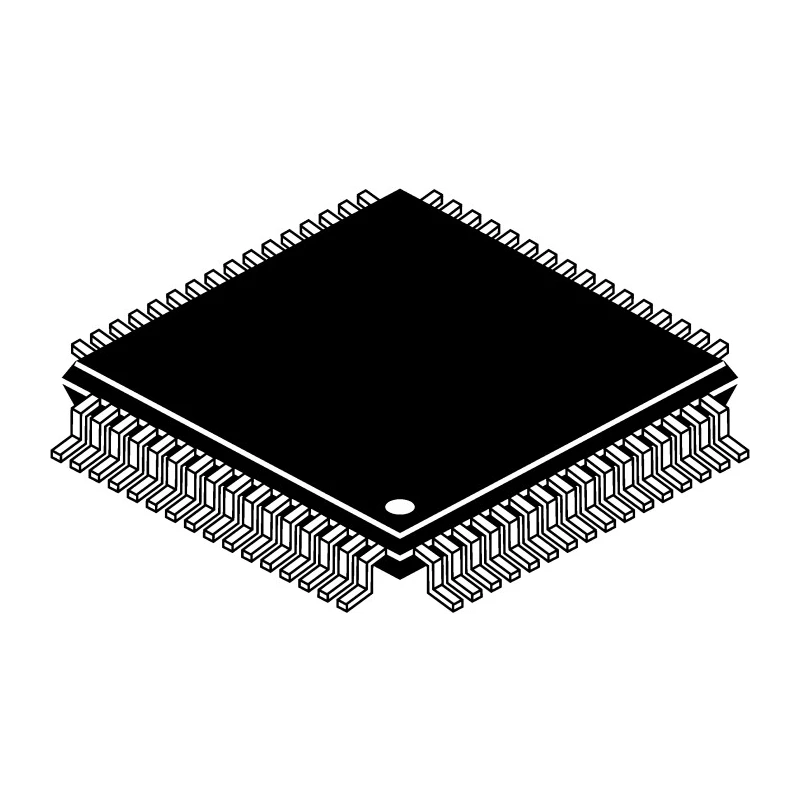

NXP 32 bit ARM7TDMI-S LPC21 Microcontroller 60 MHz 512kB FLASH 64-Pin LQFP LPC2138FBD64/01,11
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | NXP |
| Height | 1.45mm |
| Length | 10.1mm |
| Model | LPC2138FBD64/01,11 |
| Width | 10.1mm |
| Mount Type | Surface |
| Series | LPC21 |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 32kB |
| Interface Type | MSI |
| Standards/Approvals | RoHS |
| Pin Count | 64 |
| Maximum Supply Voltage | 3.6V |
| Maximum Power Dissipation Pd | 1.5W |
| Minimum Supply Voltage | 3V |
| Device Core | ARM7TDMI-S |
| Program Memory Size | 512kB |
| Maximum Clock Frequency | 60MHz |
| Number of Programmable I/Os | 47 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 8 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 10 Bit |
Key Features
- Features a 32-bit ARM7TDMI-S CPU core for efficient processing.
- Equipped with 64-pin LQFP surface mount package.
- Includes 512kB of high-speed embedded FLASH memory.
- Operates at a maximum clock frequency of 60 MHz ensuring responsive performance.
- Offers 47 programmable input/output lines for flexible use.
- Includes 32kB RAM for data storage during operations.
- Supports multiple interface types including MSI for versatile connectivity.
- Designed for reliable operation in temperature range from -40°C to 85°C.
Product Description
The NXP LPC2138FBD64/01,11 is a robust 32-bit ARM7TDMI-S microcontroller tailored for embedded systems requiring high performance and reliability. Featuring a 64-pin LQFP package and operating at 60 MHz, it combines efficient processing power with ample 512kB FLASH memory along with 32kB RAM.
This microcontroller supports a rich set of features including 47 programmable I/O lines, versatile interface options such as MSI, and integrated peripherals like 8-channel 10-bit ADCs and 2 timers. Its maximum supply voltage is 3.6V, with operation supported down to 3V, and it has a maximum power dissipation of 1.5W.
Designed for operation in a wide temperature range of -40°C to 85°C, the LPC2138 suits industrial control, medical systems, and embedded real-time applications. The device is compliant with RoHS standards and originates from Taiwan, Province Of China.
32-bit ARM7TDMI-S CPU core offering efficient processing capabilities. 512 kB high-speed FLASH memory for program storage. 32 kB on-chip RAM for data handling. MSI interface type supporting flexible communications. Up to 60 MHz clock frequency for responsive performance.
64-pin LQFP package with surface mount technology. 47 programmable I/O lines for versatile application design. 8 x 10 bit ADC channels and 2 timers for precise control tasks. Wide operating temperature range from -40°C to 85°C.
RoHS compliant for environmental safety.
This microcontroller is ideal for use in industrial control systems, embedded medical devices, and other real-time applications that demand reliable and high-performance operation. Its compact LQFP package supports surface mounting for efficient PCB layout.
Explore the extensive range of Microcontrollers and industrial electronic components available at EnvMart for your next project or commercial application.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the LPC2138FBD64/01,11 is 60 MHz, ensuring responsive performance for various applications.
It includes 512kB of high-speed embedded FLASH memory for program storage.
The LPC2138FBD64/01,11 operates within a temperature range of -40°C to 85°C, making it suitable for industrial environments.
This model features 47 programmable input/output lines for flexible application design.
It comes in a 64-pin LQFP (Low-Profile Quad Flat Package) suitable for surface mounting.
The microcontroller includes 32kB of on-chip RAM for data handling during operations.
It supports multiple interface types, including MSI, for versatile connectivity options.
The dimensions of this model are 10.1mm in length, 10.1mm in width, and 1.45mm in height.
The maximum supply voltage is 3.6V, with operation supported down to a minimum of 3V.
It features 8 channels of 10-bit ADCs for precise control tasks.
The maximum power dissipation is 1.5W, allowing for efficient operation under specified conditions.
Yes, the LPC2138FBD64/01,11 is compliant with RoHS standards for environmental safety.
