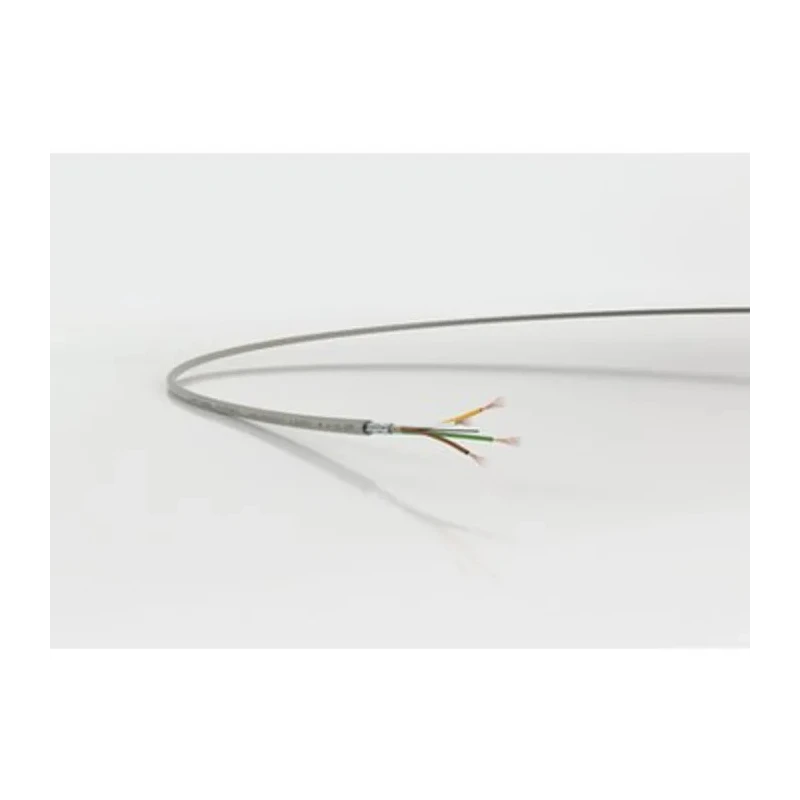

Lapp UNITRONIC LiYCY Series Data Cable 25 Pairs 25 Cores 0.34 mm² 50 m Grey Sheath Polyvinyl Chloride 0034525
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250V |
| Brand | Lapp |
| CROSS SECTIONAL AREA | 0.34 mm² |
| Model | 0034525 |
| Cable Length | 50m |
| Series | UNITRONIC LiYCY |
| Outside diameter | 11.9mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 25 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, RoHS |
| Jacket Colour | Grey |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.25mm |
| Size of Strands | 0.25mm |
| • Operating temperature with occasional flexing | -5°C to +70°C |
| Number of Pairs | 25 |
| • Operating temperature with fixed installation | -40°C to +80°C |
Key Features
- The cable is constructed with stranded bare copper conductors for reliable data transmission.
- It has a compact outer diameter of 11.9 mm, suitable for slim enclosures and wall cavities.
- The polyvinyl chloride outer sheath provides impact, wear, and chemical resistance.
- The screened design with tinned copper braided shield minimizes electromagnetic interference.
- It is flame retardant according to IEC 60332-1-2 ensuring safety in fire conditions.
- The cable supports an operating voltage of 250 V and temperature range from -40°C to +80°C for fixed installation.
- The core strands are 7 x 0.25 mm each with DIN colour coding for easy identification.
- Suitable applications include medical equipment, office networks, data collection instruments, and control systems.
Product Description
Lapp 0034525 UNITRONIC LiYCY Series Data Cable is a 25 pairs, 25 cores cable with a cross-sectional area of 0.34 mm² and a length of 50 meters. Featuring a grey polyvinyl chloride outer sheath, this screened cable combines high performance with durability and compactness with an outside diameter of 11.9 mm, making it ideal for installations requiring space saving.
Constructed with stranded bare copper conductor material and shielded by a tinned copper braided shield, it ensures reliable and low-noise signal transmission in harsh industrial and commercial environments. The cable's polyvinyl chloride jacket protects against impact, wear, and chemical exposure, extending service life.
The UNITRONIC LiYCY cable supports a voltage rating of 250 V and operates safely over a wide temperature range from -40°C (minimum) to +80°C (maximum) under fixed installations. It is flame retardant, compliant with IEC 60332-1-2 and EN standards, contributing to enhanced safety in case of fire. Its stranded conductor cores are DIN colour coded for ease of wiring and maintenance.
This Data Cable is widely used in industries such as medical equipment manufacturing, data collection instruments, office networks, communications, and process control applications. Its screened design also suits environments with significant electromagnetic interference (EMI).
The cable uses a tinned copper braided shield for EMI protection. The polyvinyl chloride sheath offers robust protection against mechanical and chemical stress. The cable flame retardant rating enhances safety compliance.
The technical construction includes 7 strands of 0.25 mm per core for flexibility and durability. The DIN colour coding facilitates identification of the 25 pairs and 25 cores. Its operating temperature range ensures reliability across different environmental conditions.
The product is manufactured in Germany, meeting CE and RoHS standards.
Choose Lapp UNITRONIC LiYCY cable for reliable, safe, and efficient data transmission in industrial, laboratory, commercial, and HVAC environments. Explore EnvMart's full range of industrial cables and related products for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this data cable is 80°C.
This model has a voltage rating of 250 V.
It features 25 cores.
The outside diameter of this cable is 11.9 mm.
The cable is constructed with stranded bare copper conductors and has a polyvinyl chloride outer sheath.
Yes, it is flame retardant according to IEC 60332-1-2, ensuring safety in fire conditions.
The cable is 50 meters long.
It features a screened design with a tinned copper braided shield to minimize electromagnetic interference.
It is suitable for applications such as medical equipment, office networks, data collection instruments, and control systems.
The minimum operating temperature for fixed installation is -40°C.
Each core consists of 7 strands of 0.25 mm.
This cable complies with CE and RoHS standards.
