Nuvotem Talema 230 V AC 2 x 15 V AC Toroidal Transformer 2 Output 5 VA 60023

Nuvotem Talema 60023 Toroidal Transformer is a high-quality mini open style transformer designed for voltage conversion and electrical isolation with 230 V AC primary and dual 2 x 15 V AC secondary outputs providing 5 VA power.

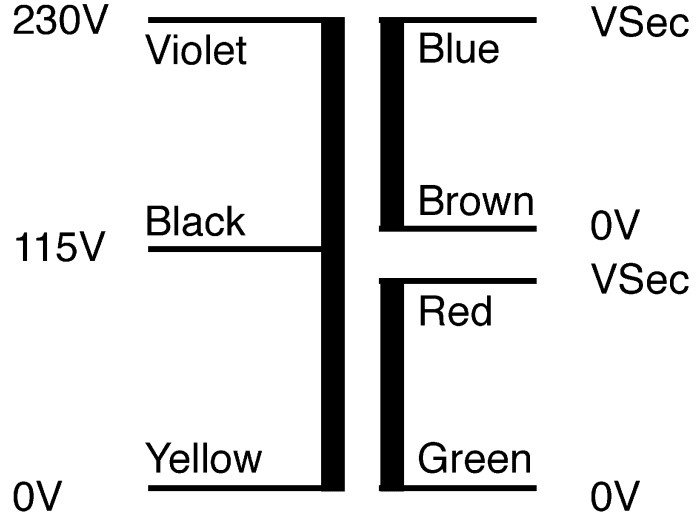

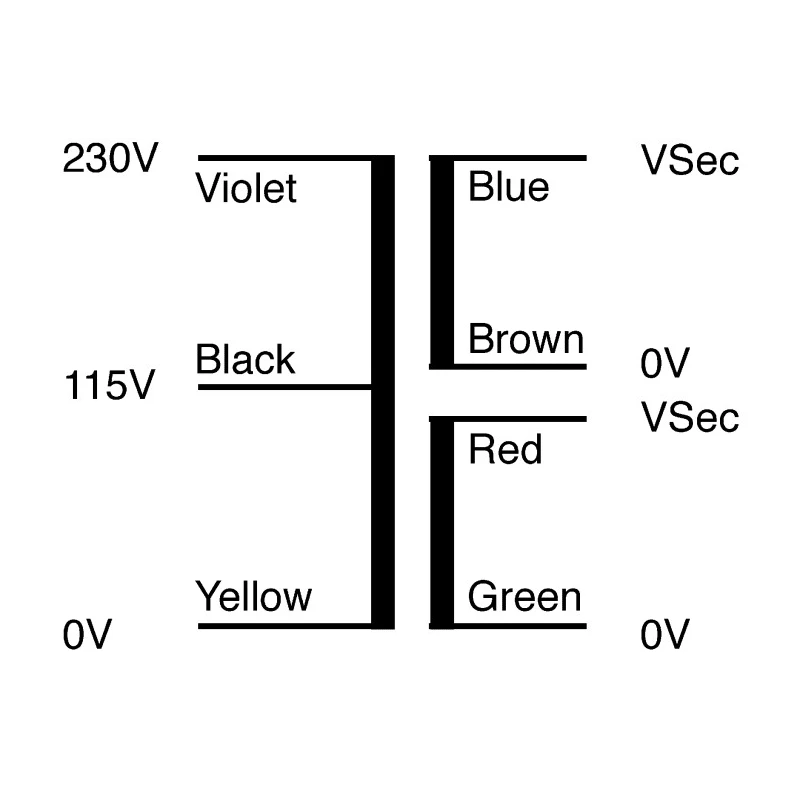

This toroidal transformer features a dual standard tapped primary winding compatible with 115/230 V AC inputs at 50/60 Hz frequency, allowing versatile use in various power supply and electronic applications.

It includes twin secondary windings which may be connected in series, parallel, or used independently depending on application requirements. The compact and lightweight design with dimensions of 49 mm diameter and 19 mm height facilitates convenient mounting via a potted centre with an M4 fixing hole.

The transformer offers low radiated magnetic fields and very low induced electrical noise, ensuring minimal interference in sensitive electronic circuits. Primary leads are double insulated for enhanced electrical safety.

Constructed to withstand maximum operating temperatures of up to 180°C, it is compliant with rigorous international standards including UL506 (E145880), EN60742 Class II, VDE0551 Class II, EN60065 Class II (IEC65), VDE0550 Class II, EN60950 Class II, and BS415 Class II, certifying its safety and quality.

This product is ideally suited for industrial and electronic component applications, power supplies, and other environments requiring reliable and safe low-power voltage transformation. It is manufactured in India and offers a robust performance under demanding operating conditions.

High quality mini open style Toroidal Transformer with lightweight and compact design. Dual standard tapped primary winding compatible with 115/230 VAC input. Two secondary windings with independent outputs that can be connected in series or parallel.

Constructed with potted centre and low radiated magnetic field for minimal interference. Double insulated primary leads ensuring safe electrical usage. Rated for operating frequencies between 50 Hz and 60 Hz. Maximum operating temperature of 180°C for durable performance under thermal stress.

Complies with multiple international standards including UL506, EN60742 Class II, VDE0551, IEC65 and BS415. Ideal for industrial, electronic component, and power supply applications requiring low noise and high electrical safety.

Compact dimensions with 49 mm diameter and 19 mm height facilitating easy mounting. Explore the Electronics & Electricals category for more transformers and components at EnvMart.
