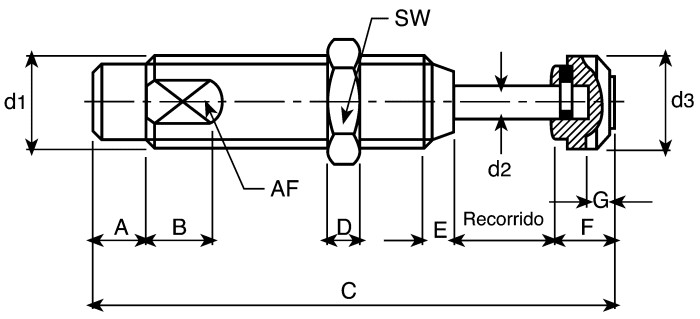

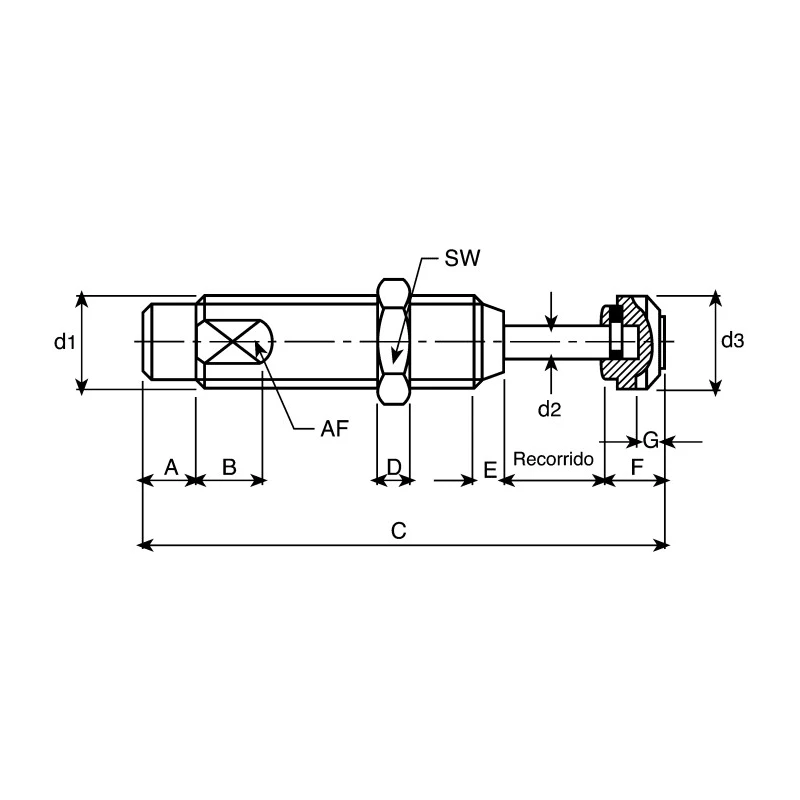

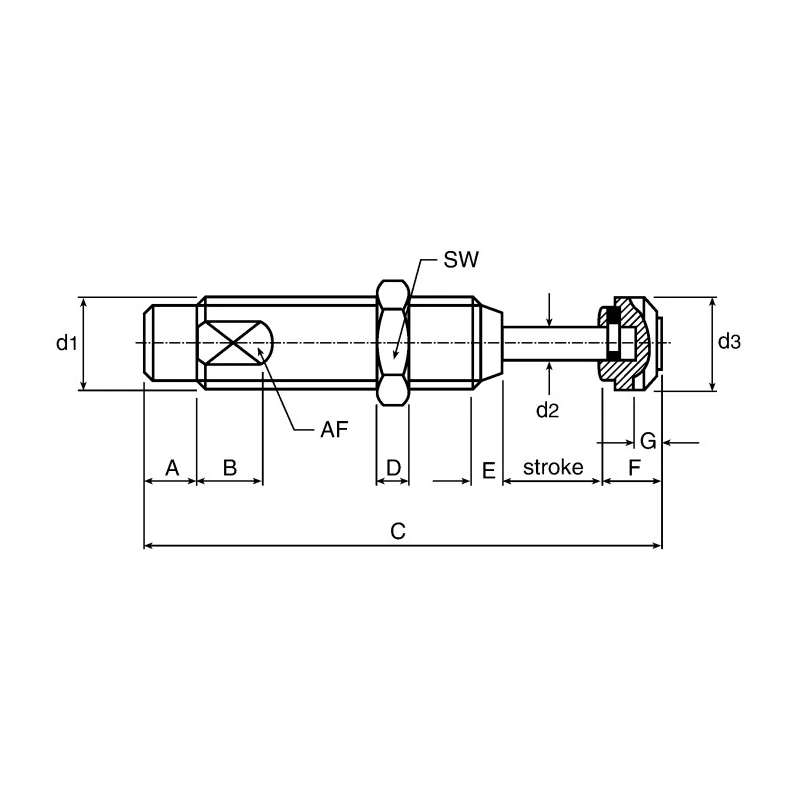

ACE Shock Absorber, 87.7 mm Body Length, 114.7 mm Overall Length, 11.9 mm Stroke Length, M14 x 1.5 Thread Size SC190EUM-2

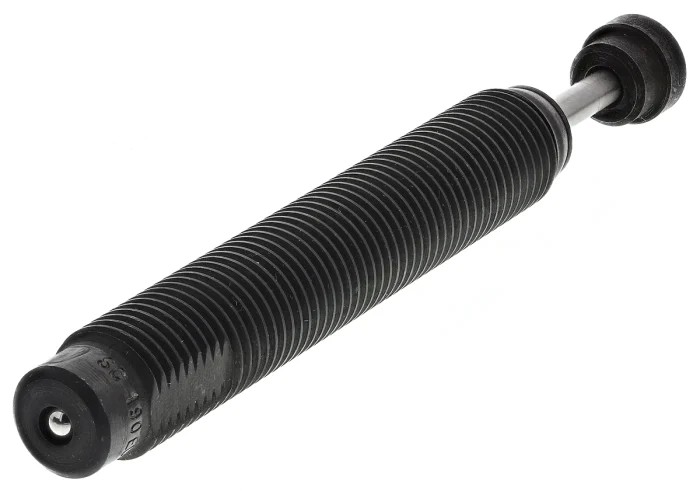

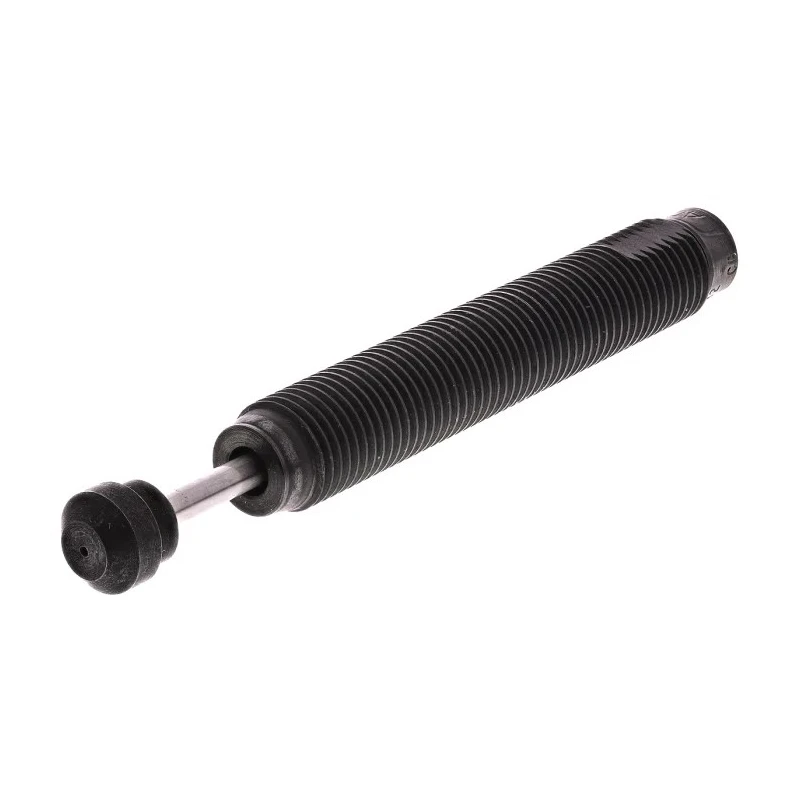

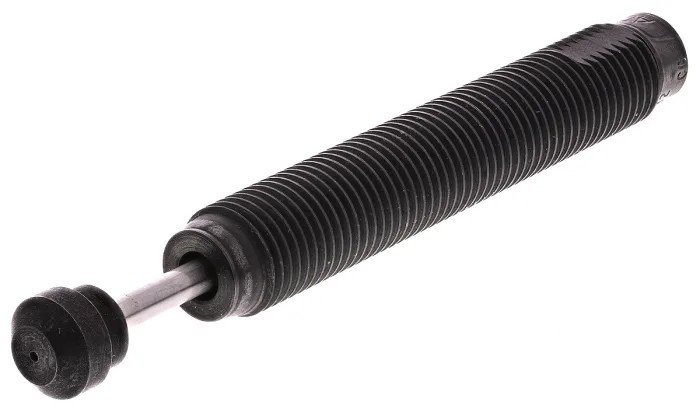

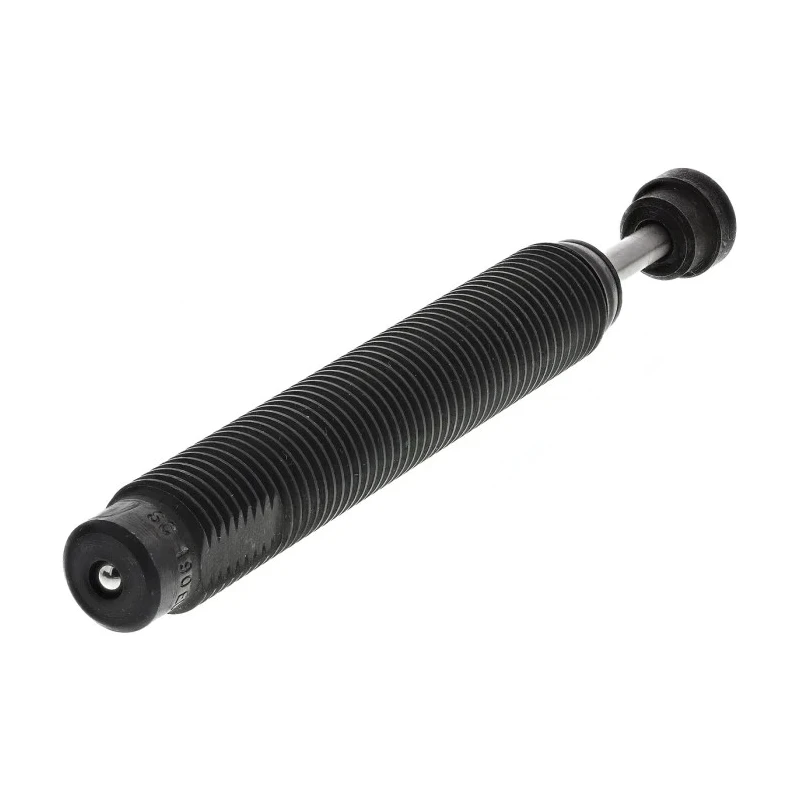

ACE SC190EUM-2 Shock Absorber features a robust design with a body length of 87.7 mm, overall length of 114.7 mm, and stroke length of 11.9 mm. It incorporates a steel body treated with Weartec-Plus finish for harsh environments and a hardened stainless steel piston rod for durability. This self compensating shock absorber offers soft contact to minimize initial impact forces, making it ideal for sensitive mechanical and pneumatic applications.

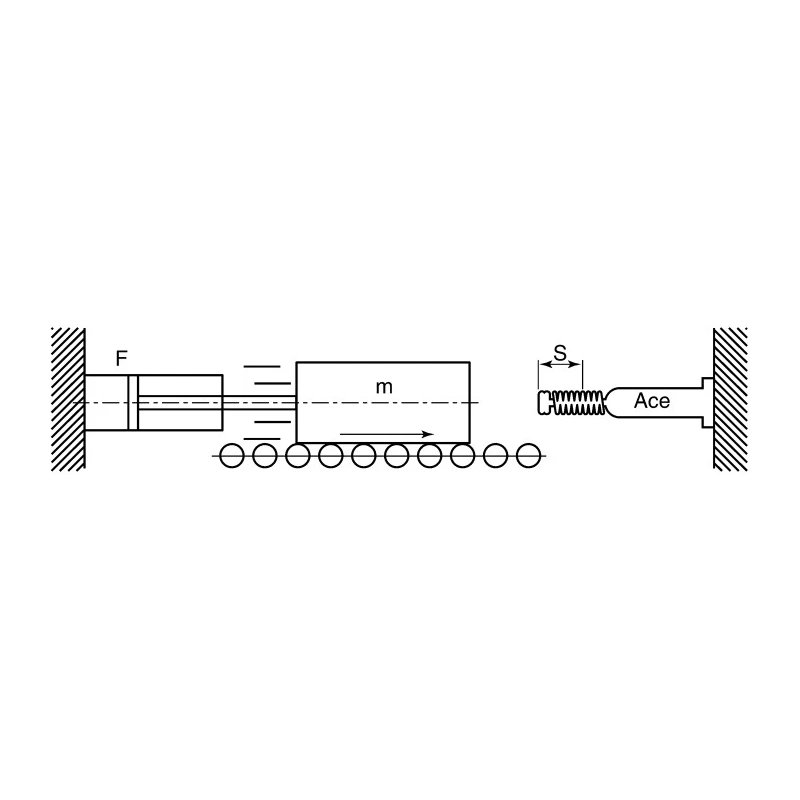

It is engineered to handle effective weights from 1.4 kg up to 2088 kg, suitable for a wide range of industrial uses including mechanical equipment, fluid power systems, and manufacturing machinery. The unit operates efficiently within temperatures ranging from 0°C to 66°C and supports impact velocities between 0.15 m/s and 3.7 m/s.

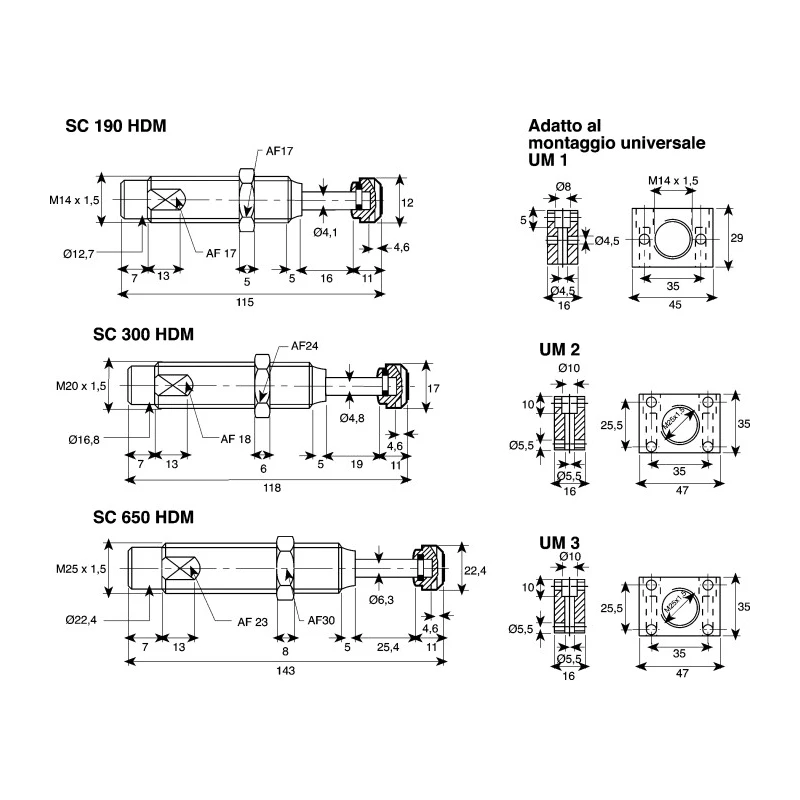

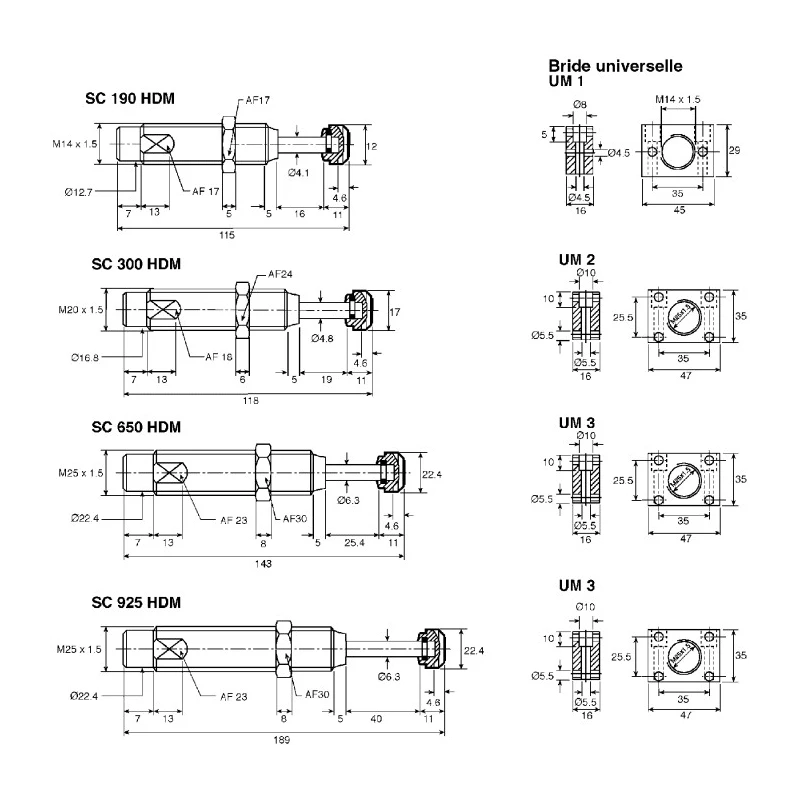

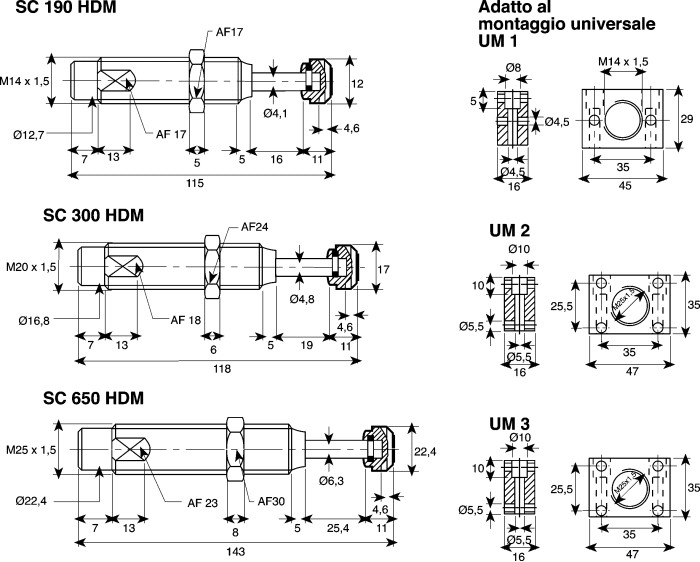

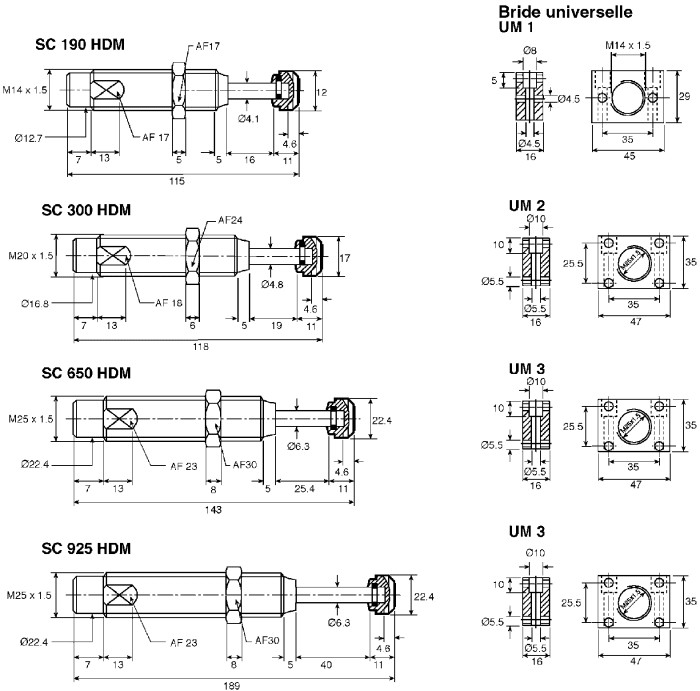

The maximum energy capacity is 34000 Nm per hour and 25 Nm per cycle, with a maximum return force of 9 N ensuring reliable performance. The shock absorber's M14 x 1.5 thread size and universal mounting attachments offer flexible installation options. Optional stop collars enhance functionality for specific applications requiring precise shock absorption.

The hardened steel rod end button includes an insert designed for noise suppression, reducing operational noise in industrial environments. This product is interchangeable with the MA series adjustable range, providing compatibility for various systems.

Engineered in the United States, the ACE SC190EUM-2 is widely used in industrial, manufacturing, automation, and mechanical fluid power applications. The product’s high-performance capabilities and durable construction make it an essential component for equipment requiring shock absorption and impact control.

Self compensating with soft contact reduces shock impact. Steel body with Weartec-Plus finish for harsh environments. Hardened stainless steel piston rod ensures durability. Noise suppression insert included to lower operational noise.

Operates in temperatures from 0°C to 66°C. Maximum energy capacities of 34000 Nm/hr and 25 Nm per cycle. M14 x 1.5 thread size with universal mounting attachments. Interchangeable with MA series adjustable range. Explore more ACE Shock Absorbers and pneumatic cylinders on EnvMart for reliable hydraulic and pneumatic solutions.
