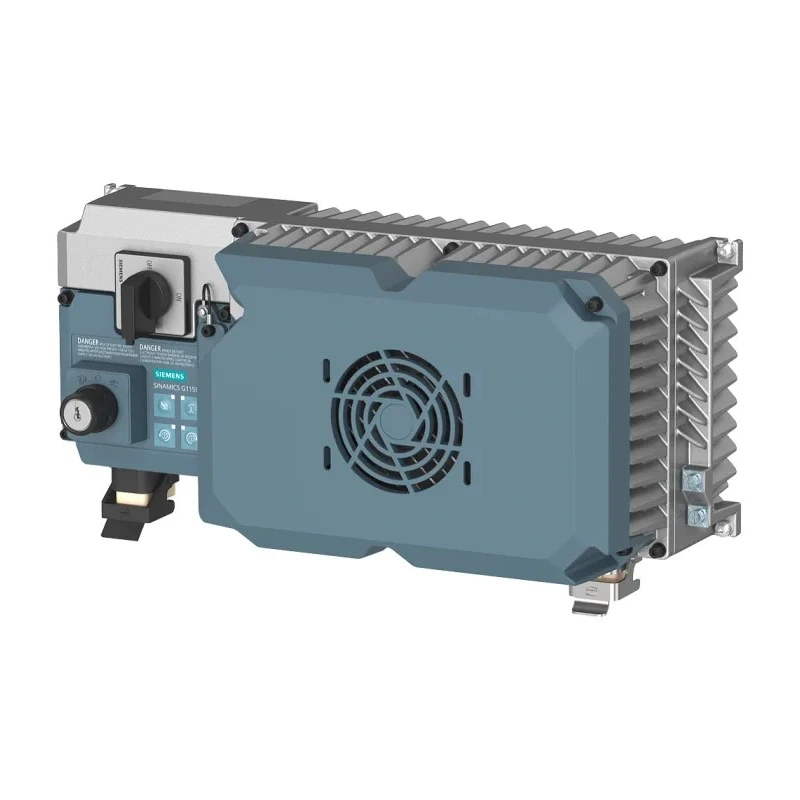

Siemens SINAMICS G115D Series Inverter Drive 7.5 kW 3 Phase 380-480 V 19 A 6SL3520-2XM07-5AA0
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Siemens |
| Model | 6SL3520-2XM07-5AA0 |
| IP Rating | IP66, IP65 |
| Mount Type | Wall |
| Overall Length | 180mm |
| Series | SINAMICS G115D |
| Overall Width | 425mm |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 55°C |
| Output Frequency | 550Hz |
| Minimum Operating Temperature | -30°C |
| Number of Phases | 3 |
| Maximum Output Current | 19A |
| Standards/Approvals | RoHS, IEC, EAC, UCKA, cULus, CE, UL |
| Maximum Supply Voltage | 480V |
| Overall Depth | 169mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Asynchronous Motor |
Key Features
- Wall mount type with compact dimensions of 425mm width, 169mm depth, and 180mm length.
- High ingress protection with IP66 and IP65 ratings ensures reliable operation in harsh environments.
- Supports output frequency up to 550 Hz for versatile motor speed control.
- Operates efficiently in temperature range from -30°C to 55°C.
- Compliant with standards including RoHS, IEC, EAC, cULus, CE, and UL certifications.
- Integrated 24V DC power supply unit and local remote control option enhances flexibility.
- Connector variant without daisy chain (MQ15) designed for industrial automation applications.
- Manufactured in the United Kingdom, delivering quality assured performance.
Product Description
Siemens 6SL3520-2XM07-5AA0 SINAMICS G115D Series inverter drive offers 7.5 kW power output tailored for controlling 3-phase asynchronous motors, with operating voltage from 380 to 480 V and maximum output current of 19 A. Designed for wall mounting, it provides compact installation with dimensions of 425mm width, 169mm depth, and 180mm length while maintaining high ingress protection levels IP66 and IP65 for harsh industrial environments.
This inverter drive supports output frequencies up to 550 Hz enabling precise motor speed adjustments for diverse industrial applications. The drive can operate reliably in temperature conditions ranging from -30°C up to 55°C, ensuring robust performance across climates.
The SINAMICS G115D includes an integrated 24V DC power supply unit along with a local remote control option, improving operational flexibility. The connector variant does not include a daisy chain (MQ15), making it suitable for dedicated industrial automation setups.
Compliance with global safety and environmental standards such as RoHS, IEC, EAC, cULus, CE, and UL confirms the product’s safety and energy efficiency credentials. Manufactured in the United Kingdom, this inverter drive is ideal for industrial, manufacturing, automation, and HVAC control systems requiring reliable motor speed regulation and energy savings.
Wall mount type with compact dimensions of 425mm width, 169mm depth, and 180mm length. High ingress protection with IP66 and IP65 ratings ensures reliable operation in harsh environments. Supports output frequency up to 550 Hz for versatile motor speed control.
Operates efficiently in temperature range from -30°C to 55°C. Compliant with standards including RoHS, IEC, EAC, cULus, CE, and UL certifications. Integrated 24V DC power supply unit and local remote control option enhances flexibility.
Connector variant without daisy chain (MQ15) designed for industrial automation applications. Manufactured in the United Kingdom, delivering quality assured performance. Explore more Inverter Drives and Siemens automation products in EnvMart’s extensive industrial catalog to enhance your control systems with premium quality and performance.
