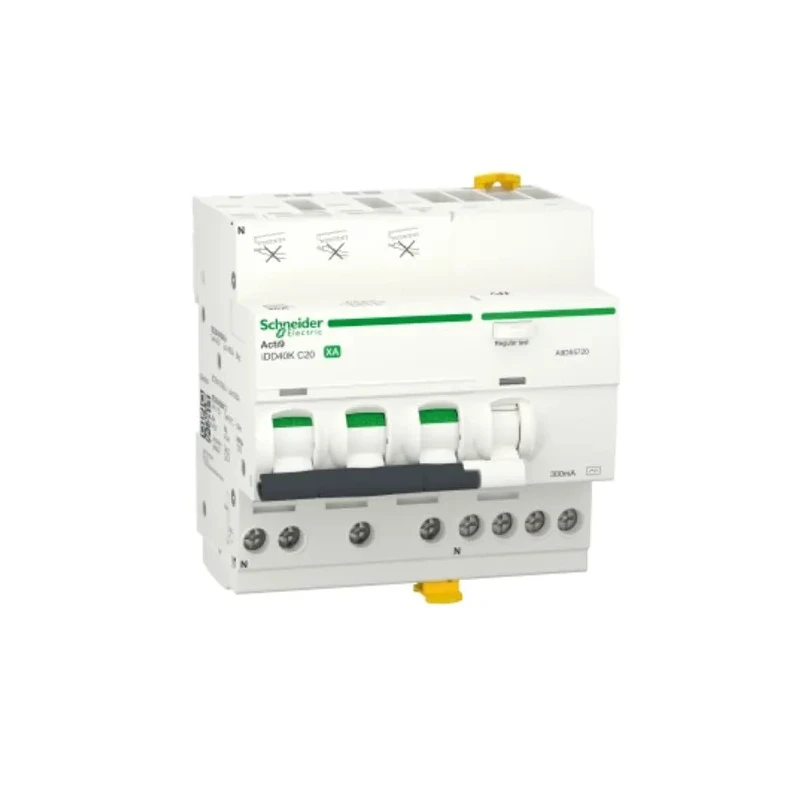

Schneider Electric Residual Current Circuit Breaker with Overload Protection 20A 3-Pole 300mA Trip A9DS5720

Schneider Electric A9DS5720 residual current circuit breaker integrates overload protection with a 20A current rating and 3-pole configuration, designed for both industrial and residential electrical systems. This device features advanced thermal-magnetic trip unit technology that ensures fast and reliable protection against short circuits and earth leakage faults with a time delay for instantaneous response.

The breaker is equipped with a robust toggle switch actuator providing clear ON/OFF operation and trip indication for ease of use and maintenance. It conforms to the EN/IEC 60947-2 and RoHS standards, guaranteeing compliance with international safety and environmental requirements.

Rated for 400V AC voltage, the breaker supports a breaking capacity of 4.5 kA, making it suitable for low-voltage electrical distribution and protection. The DIN rail mounting system and tunnel terminal type facilitate quick installation and secure wiring in control panels or distribution boards.

The earth leakage protection type AC with a trip sensitivity of 300 mA protects users and equipment by detecting leakage currents efficiently. Its compact design with dimensions of 93mm in height, 90mm in width, and 73mm in depth fits standard electrical enclosures.

This model is ideal for applications including overcurrent protection, electrical distribution, and residential electrical safety systems. The product is manufactured in Spain, reflecting international manufacturing standards in quality and reliability.

Incorporates thermal-magnetic trip technology with instantaneous earth-leakage protection time delay. Toggle switch actuator provides reliable manual control with trip indication. Complies with EN/IEC 60947-2 and RoHS certifications for safety and environmental standards.

Rated for 400V AC with 4.5 kA breaking capacity suitable for industrial and residential use. DIN rail mountable with tunnel terminal type for secure wiring. Earth leakage protection type AC with 300mA trip sensitivity for fault detection.

Compact dimensions: 93mm height, 90mm width, 73mm depth for space-efficient installation.
