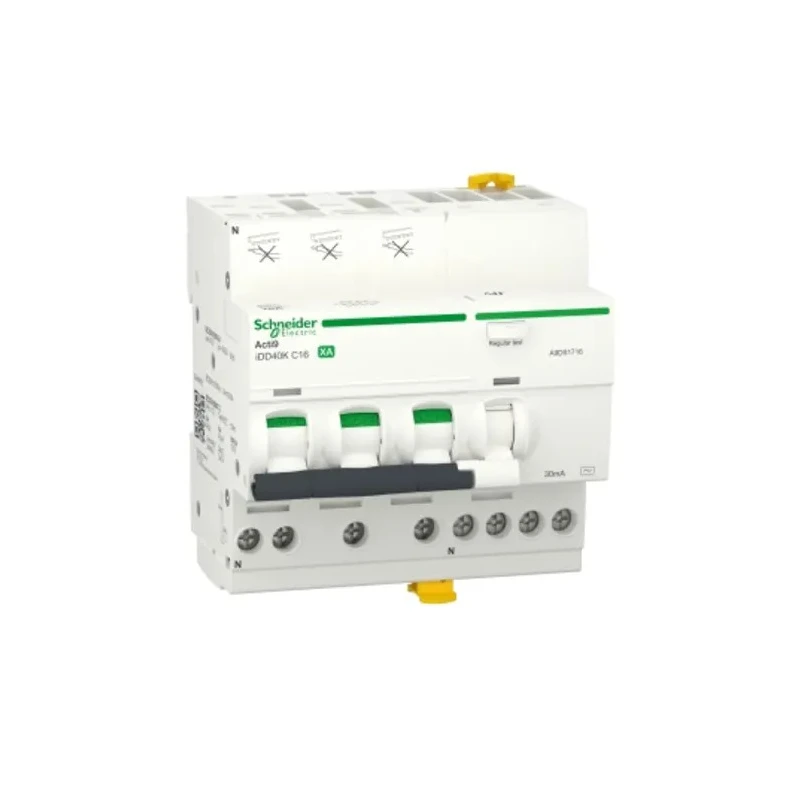

Schneider Electric Residual Current Circuit Breaker with Overload Protection 16A 3-Pole 30mA Trip 400V AC Thermal A9DS1716
Specifications
| Country of Origin | Spain |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Height | 93mm |
| Model | A9DS1716 |
| Depth | 73mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Current Rating | 16A |
| Series | ACTI9 iDD40K XA |
| Terminal type | Tunnel |
| Breaking Capacity | 4.5kA |
| Number of Poles | 3 |
| Standards/Approvals | RoHS, EN/IEC 60947-2 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Trip Sensitivity | 30mA |
| Earth Leakage Protection Type | AC |
Key Features
- Thermal magnetic tripping mechanism provides precise overcurrent and earth leakage protection.
- Type C tripping characteristics suitable for residential and distribution applications.
- DIN Rail mountable for easy installation in electrical panels.
- Rated for 400V AC operation with a breaking capacity of 4.5kA.
- Toggle switch reset actuator with ON/OFF and trip indicator functionality.
- Designed to meet RoHS and EN/IEC 60947-2 standards for safety and compliance.
Product Description
Schneider Electric A9DS1716 Residual Current Circuit Breaker with Overload Protection is a 3-pole, 16A current rating device engineered for robust electrical circuit protection in residential and distribution installations. It features a thermal magnetic tripping mechanism combined with instantaneous earth-leakage protection with a 30mA trip sensitivity, ensuring efficient response to overloads and earth faults.
The product is part of the Acti9 iDD40K XA series and offers a breaking capacity of 4.5kA, operation up to 400V AC, and is designed for DIN rail mounting, facilitating quick and secure installation.
Its toggle switch actuator includes ON/OFF and trip indicator features for clear operational status, with a compact form factor measuring 93mm in height, 90mm width, and 73mm depth. This circuit breaker supports padlockable functionality for additional safety measures.
Conforming to RoHS directives and the EN/IEC 60947-2 standard, the device guarantees high quality and safety in electrical protection applications. The breaker is manufactured in Spain with an electrical durability rated at 20,000 cycles and is suitable for operating environments with ambient temperatures between -5°C and 60°C and relative humidity up to 95% at 55°C.
Thermal magnetic trip unit technology offers reliable overload and short-circuit protection. Instantaneous earth-leakage detection enhances safety for users and equipment. Toggle control with clear ON/OFF and trip indication function.
Compact and DIN rail mountable design for versatile panel integration. Designed for residential, industrial, and distribution electrical applications. Padlockable feature adds extra protection to prevent unauthorized operation.
Manufactured under strict compliance with international safety standards.
This Schneider Electric Residual Current Circuit Breaker is ideal for electrical distribution systems requiring combined overload and earth leakage protection. Available for various industrial, residential, and commercial use cases in electrical panels and distribution boards.
Explore additional Schneider Electric circuit protection devices and components on EnvMart for comprehensive electrical safety solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 16A, making it suitable for various electrical applications.
The breaking capacity of this circuit breaker is 4.5kA, providing robust protection against overloads.
It is rated for operation at 400V AC, suitable for standard electrical systems.
This unit features a 3-pole design, allowing it to protect three-phase circuits.
It has Type C tripping characteristics, which are suitable for residential and distribution applications.
The trip sensitivity for earth leakage protection is 30mA, ensuring quick response to faults.
It is designed for DIN rail mounting, facilitating easy installation in electrical panels.
This circuit breaker measures 93mm in height, 90mm in width, and 73mm in depth.
It conforms to RoHS directives and the EN/IEC 60947-2 standard for safety and compliance.
It operates effectively in ambient temperatures ranging from -5°C to 60°C.
This circuit breaker utilizes a thermal magnetic tripping mechanism for reliable overload protection.
Yes, it includes a padlockable feature to prevent unauthorized operation, enhancing safety.
