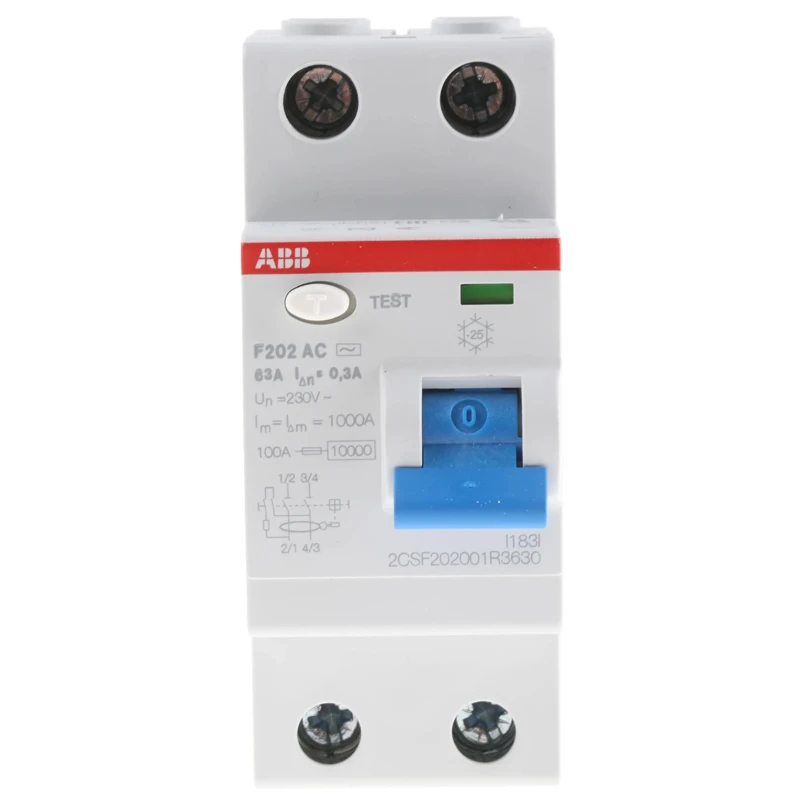

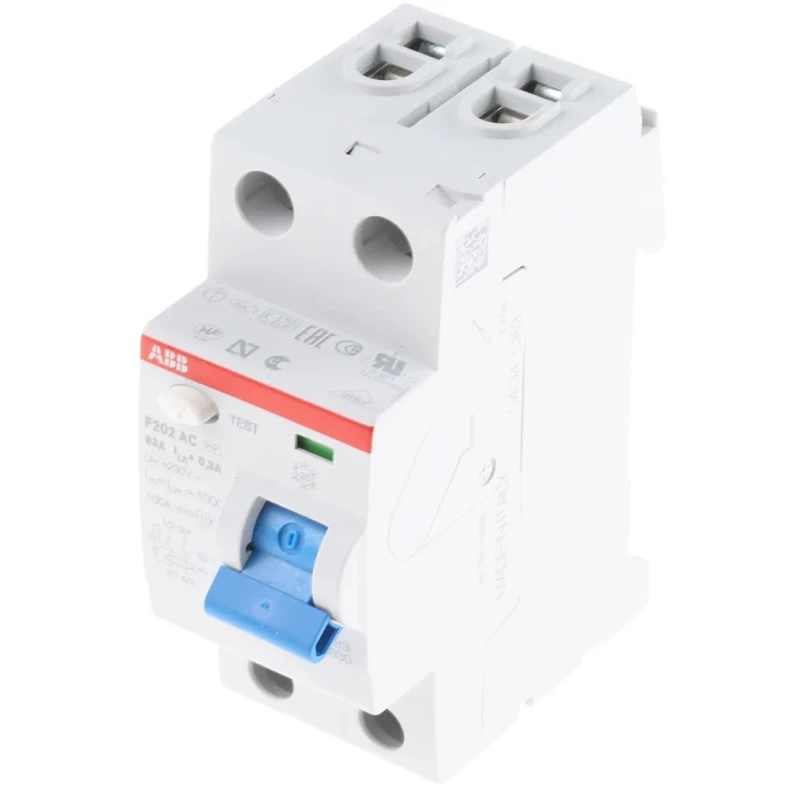

ABB Residual Current Circuit Breaker, 63A, 2-Pole, 300 mA Trip Sensitivity, Type AC, 400V AC 2CSF202001R3630 F202 AC-63/0,3

ABB 2CSF202001R3630 F202 AC-63/0,3 Residual Current Circuit Breaker (RCCB) is a high-quality electrical safety device designed for protecting electrical installations by detecting ground faults and interrupting power supply instantly to prevent electric shock and fire hazards. It is engineered for commercial and industrial applications requiring reliable earth leakage protection.

This RCCB has a current rating of 63A and features a 2-pole design that supports connection with standard Miniature Circuit Breakers (MCBs) on DIN rail mounting systems. Its trip sensitivity of 300 mA ensures effective detection of residual currents, while the Type AC tripping characteristic is suitable for alternating current (AC) earth leakage applications.

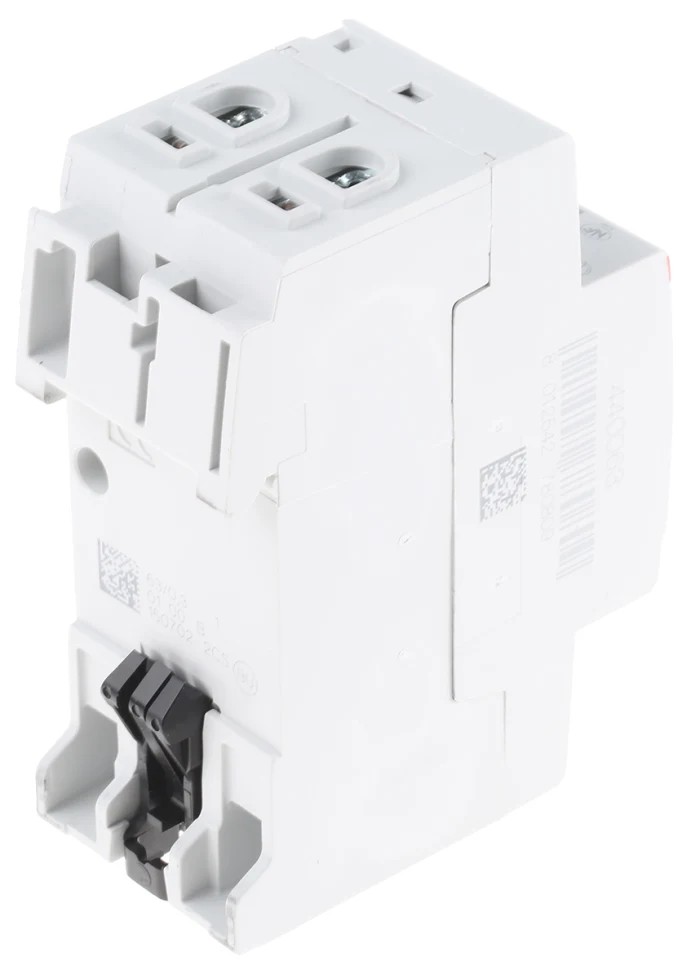

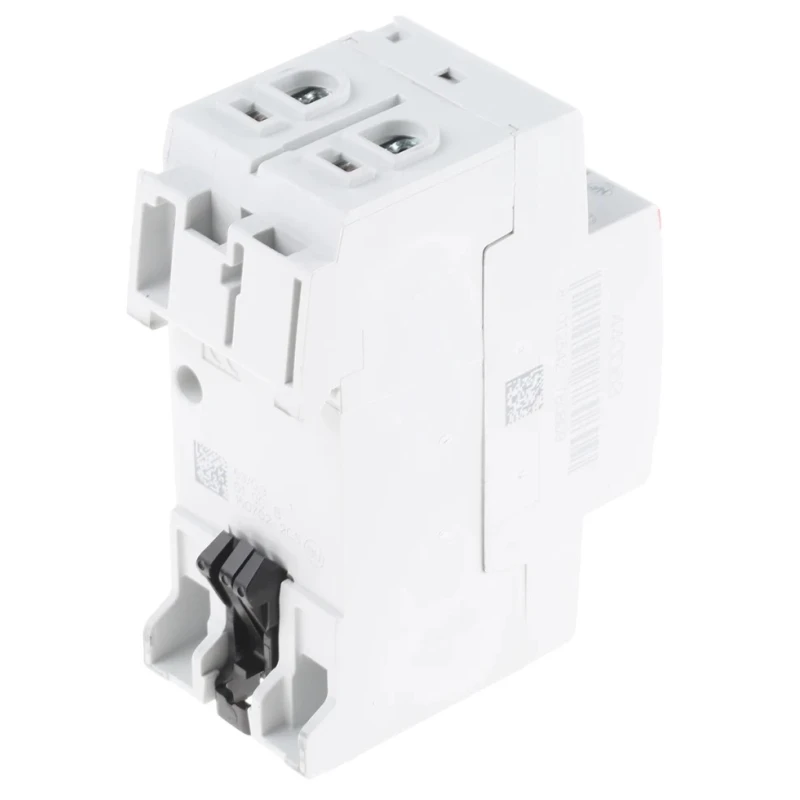

The compact and robust unit measures 85 mm in height, 85 mm in depth, and 35 mm in width, making it ideal for space-constrained electrical panels. It uses screw-type terminals for secure wire connections and includes a toggle switch reset actuator that allows easy manual resetting after tripping events. The RCCB complies with CE and RoHS standards, ensuring adherence to international safety and environmental regulations.

Key features include an instantaneous break time for rapid circuit disconnection upon leakage detection and a breaking capacity of 0.3 A. The device operates reliably within an ambient temperature range of -25°C to +55°C and an optimum frequency range of 50 to 60 Hz. Its DIN rail mount design facilitates streamlined installation and maintenance in industrial and commercial electrical distribution setups.

63A rated 2-pole Residual Current Circuit Breaker. 300 mA trip sensitivity with Type AC tripping characteristic. Compact DIN rail mount enclosure with toggle switch reset. CE and RoHS compliant for enhanced safety and environmental standards.

Instantaneous break time for rapid fault clearance. Screw-type terminal connections for reliability. Operating temperature range from -25°C to +55°C. Optimized frequency range of 50 to 60 Hz. Physical dimensions: 85mm (H) x 85mm (D) x 35mm (W).

This ABB RCCB is essential for ensuring electrical safety in industrial, commercial, and residential environments by preventing potential electric shocks and fire risks associated with earth leakage currents. Browse EnvMart's extensive range of circuit breakers and electrical protection devices for your applications.
