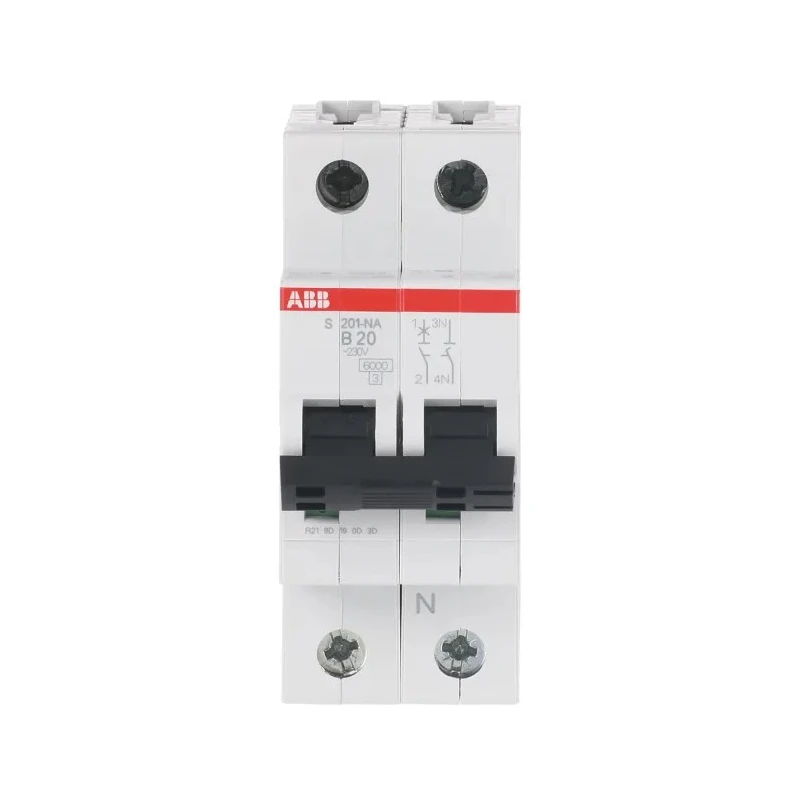

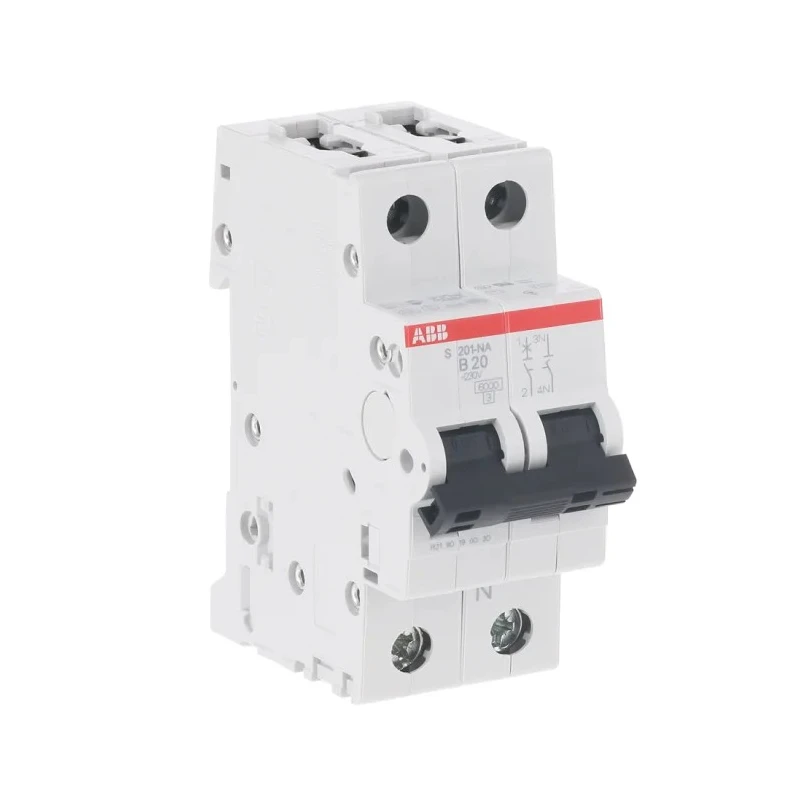

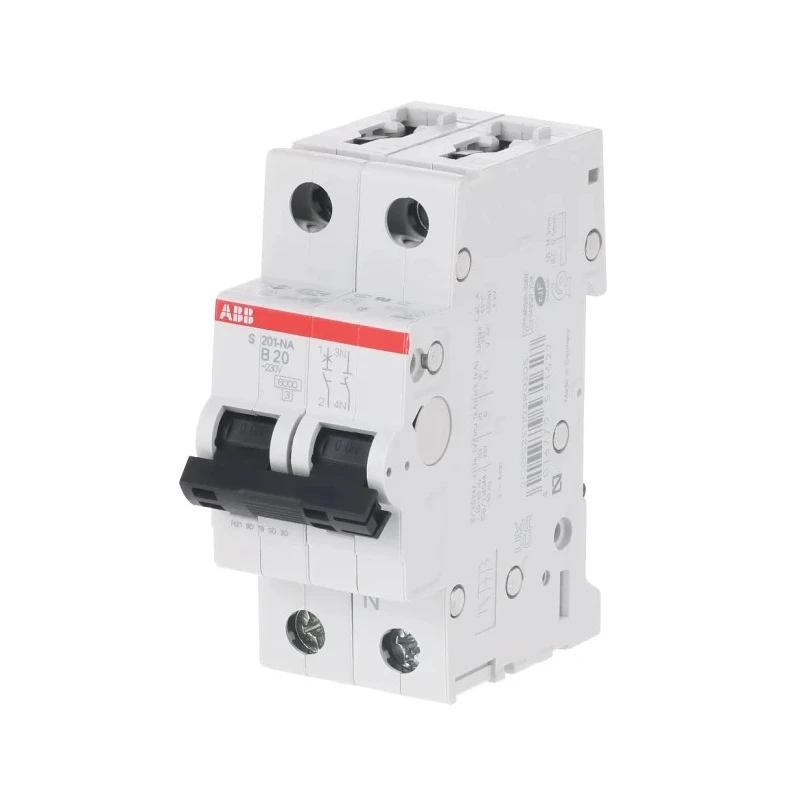

ABB System Pro M Compact S200 Miniature Circuit Breaker 1-Pole 20A Type B 400V AC 12V DC 2CDS251103R0205+N S201 B 20A NAD
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 88mm |
| Model | 2CDS251103R0205+N S201 B 20A NAD |
| Depth | 69mm |
| IP Rating | IP40, IP20 |
| Width | 35mm |
| Mount Type | DIN Rail |
| Current Rating | 20A |
| Series | S200 |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 1 |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 12V |
| Tripping Characteristics | Type B |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Electromagnetic, Thermomagnetic |
| Reset Actuator Type | Toggle Switch |
Key Features
- Type B tripping characteristic suitable for resistive loads such as lighting and heating.
- Supports dual voltage applications with 400V AC and 12V DC ratings.
- 1+N pole configuration ensures protection for both live and neutral conductors.
- Breaking capacity rating of 6 kA offers robust fault condition safety.
- DIN Rail mount design facilitates easy installation in compact distribution boards.
- IP40 and IP20 rated for protection against ingress and suitable for indoor use.
- Features a toggle switch actuator for manual reset and easy operation.
- Thermal and electromagnetic tripping mechanisms enable precise protection against overloads and short circuits.
Product Description
ABB 2CDS251103R0205+N S201 B 20A NAD Miniature Circuit Breaker is part of the System Pro M Compact S200 series, designed for effective electrical protection in both commercial and residential applications. Rated at 20 amperes with a Type B tripping characteristic, this MCB offers precise interruption for resistive and inductive loads such as lighting, heating, and low-voltage control circuits.
Supporting dual voltage operation, it handles up to 400V AC and 12V DC, suitable for installations requiring AC and DC circuit protection. The 1+N pole configuration protects both live and neutral lines, ensuring enhanced safety and compliance with wiring standards.
The device's breaking capacity is rated at 6 kA, guaranteeing secure disconnection during fault conditions and minimizing electrical hazards. Its DIN Rail mounting type ensures straightforward integration into distribution boards and control panels.
Constructed with high-quality materials, the circuit breaker boasts an IP40 and IP20 ingress protection rating, making it appropriate for use in typical indoor environments. The toggle switch actuator offers a manual reset feature, facilitating ease of use during maintenance or after tripping events.
The tripping mechanism incorporates both thermal and electromagnetic functions, providing comprehensive protection against sustained overloads and sudden short circuits. Manufactured in Germany under IEC/EN 60898-1 and IEC/EN 60947-2 standards, it meets stringent quality and safety requirements.
Type B tripping type for resistive and mixed loads. Dual rated for 400V AC and 12V DC operations. 1+N pole configuration enhances protection safety. Breaking capacity of 6 kA ensures fault protection. DIN Rail mounting for installation convenience.
IP40 and IP20 ratings for ingress protection. Toggle switch actuator for manual reset functionality. Thermic and electromagnetic trip mechanisms for comprehensive overload and short circuit protection.
This Miniature Circuit Breaker is ideal for various applications including residential distribution boards, commercial electrical installations, industrial control panels, and compact switchboards. Its compact size, measuring 88mm height, 69mm depth, and 35mm width, allows for space-efficient panel design.
The ABB System Pro M Compact S200 series ensures trusted circuit protection with a focus on sustainability and easy disassembly for recycling. Perfect for electrical contractors, engineers, and facility managers seeking reliable, standards-compliant circuit protection solutions.
Explore the full range of ABB circuit breakers on EnvMart for comprehensive electrical protection components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 20A.
The breaking capacity is rated at 6 kA, providing secure disconnection during fault conditions.
It supports dual voltage applications with ratings of 400V AC and 12V DC.
It features a Type B tripping characteristic, suitable for resistive loads such as lighting and heating.
This unit is designed for DIN Rail mounting, facilitating easy installation in compact distribution boards.
The dimensions are 88mm in height, 69mm in depth, and 35mm in width.
It has an IP40 and IP20 ingress protection rating, suitable for indoor use.
It features a toggle switch actuator for manual reset functionality.
It is manufactured under IEC/EN 60898-1 and IEC/EN 60947-2 standards, ensuring compliance with safety requirements.
The tripping mechanism incorporates both thermal and electromagnetic functions for protection against overloads and short circuits.
This model has a 1+N pole configuration, which protects both live and neutral conductors.
It is manufactured in Germany.
