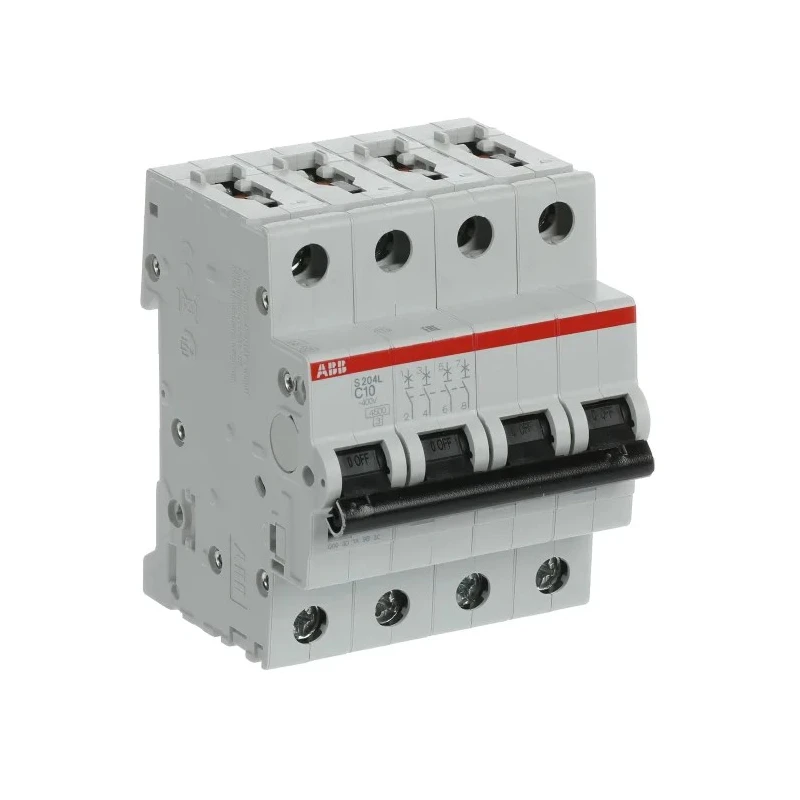

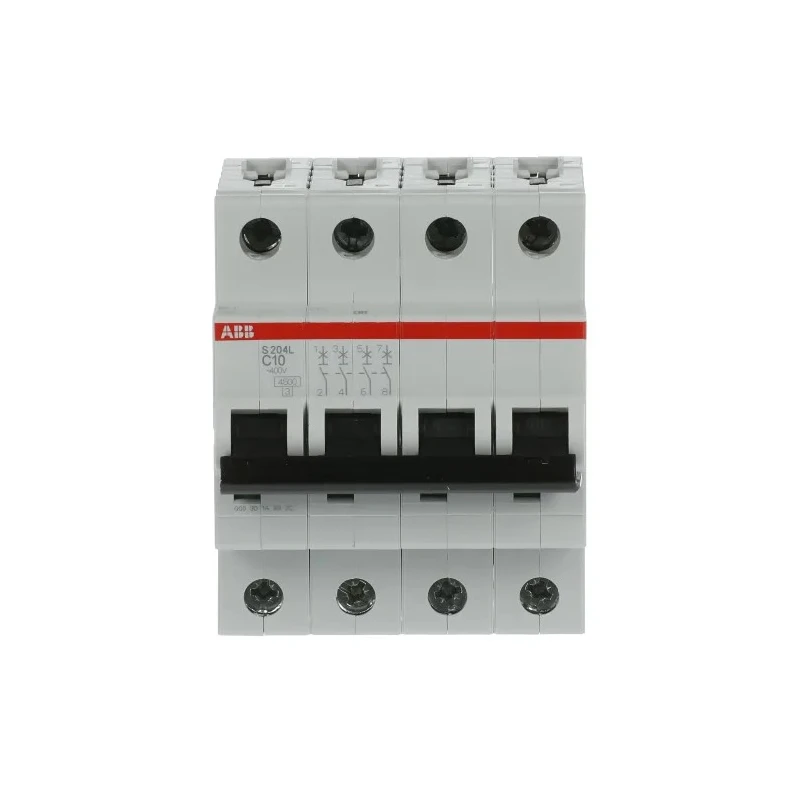

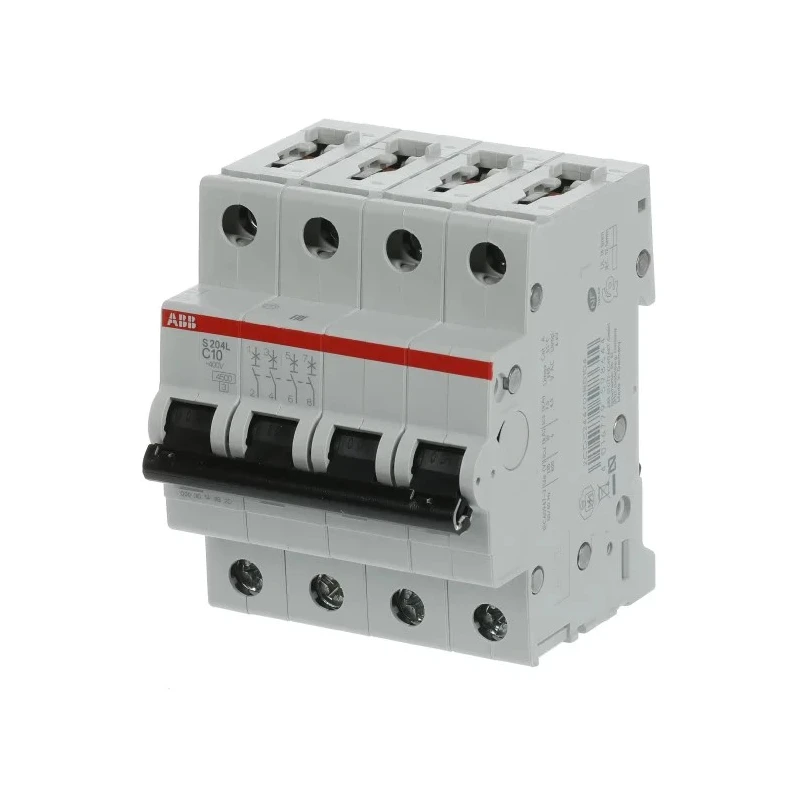

ABB System Pro M Compact Miniature Circuit Breaker, 4-Pole, 10A, Type C, 400V AC, 6 kA Breaking Capacity 2CDS244701R0104

ABB 2CDS244701R0104 System Pro M Compact Miniature Circuit Breaker offers advanced circuit protection with a 4-pole configuration rated at 10A. Providing Type C tripping characteristics, it is optimized for managing inductive loads and high inrush currents typical in motor protection and industrial automation systems.

Designed for DIN rail mounting, the compact breaker measures 85mm in height, 69mm in width, and 88mm in depth, making it ideal for integration into electrical panels and control systems where space is critical.

The circuit breaker features a robust breaking capacity of 6 kA at 400V AC to ensure rapid disconnection during fault conditions, protecting equipment and wiring from damage. The thermomagnetic and electromagnetic tripping mechanisms provide reliable performance under varying load and fault conditions.

Its toggle switch actuator offers simple manual operation and clear indication of the circuit breaker status. The device supports a variety of conductor types and sizes, including flexible ferrule and rigid cables from 0.75 mm² up to 25 mm², offering installation flexibility.

With IP40 and IP20 ingress protection ratings, this MCB suits electrical installations requiring reliable dust and touch protection. It operates efficiently within a -25°C to +55°C ambient temperature range, suitable for diverse industrial, commercial, and residential environments.

Certified under IEC/EN 60898-1 standards, the System Pro M Compact series ensures compliance with international safety and performance criteria for miniature circuit breakers. Suitable for inductive loads with Type C tripping characteristic.

Rated for 400V AC voltage ensuring compatibility with industrial systems. 6 kA breaking capacity effectively handles short-circuit faults. Thermomagnetic and electromagnetic tripping mechanism for precise protection. Compact dimensions with DIN rail mounting for efficient panel integration.

Toggle switch actuator allows easy operation and status visibility. Supports conductor sizes from 0.75 mm² to 25 mm² including flexible and rigid cables. Reliable operation in ambient temperatures ranging from -25°C to +55°C.

Protection ratings IP40 and IP20 provide dust and touch resistance. Complies with IEC/EN 60898-1 safety standards.

This Miniature Circuit Breaker is commonly used in industrial control panels, commercial electrical installations, residential circuit protection, and automation systems requiring dependable circuit protection with compact size and easy mounting.
