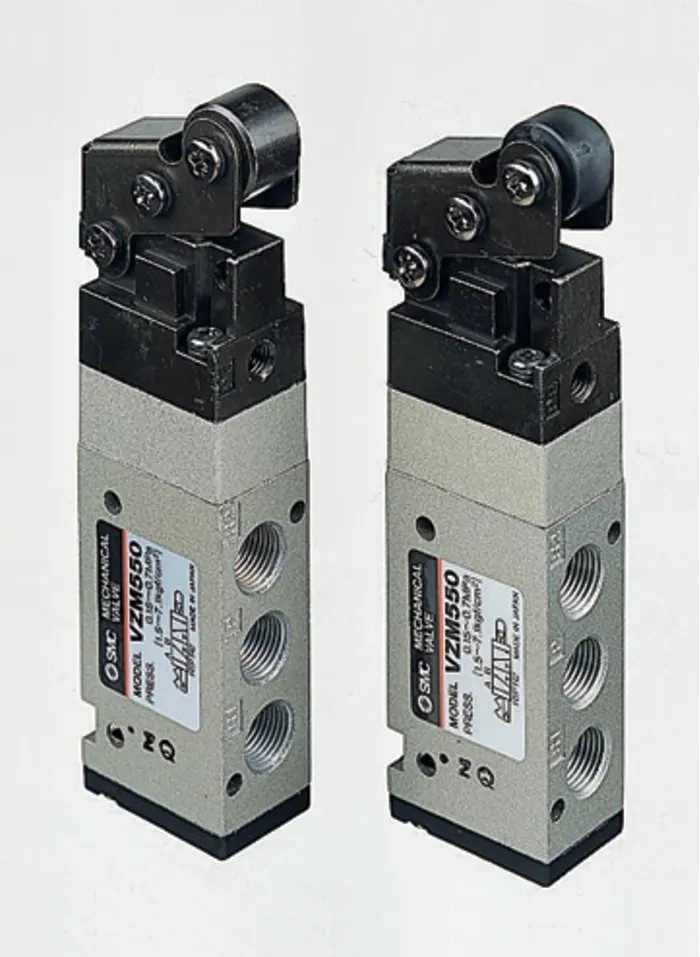

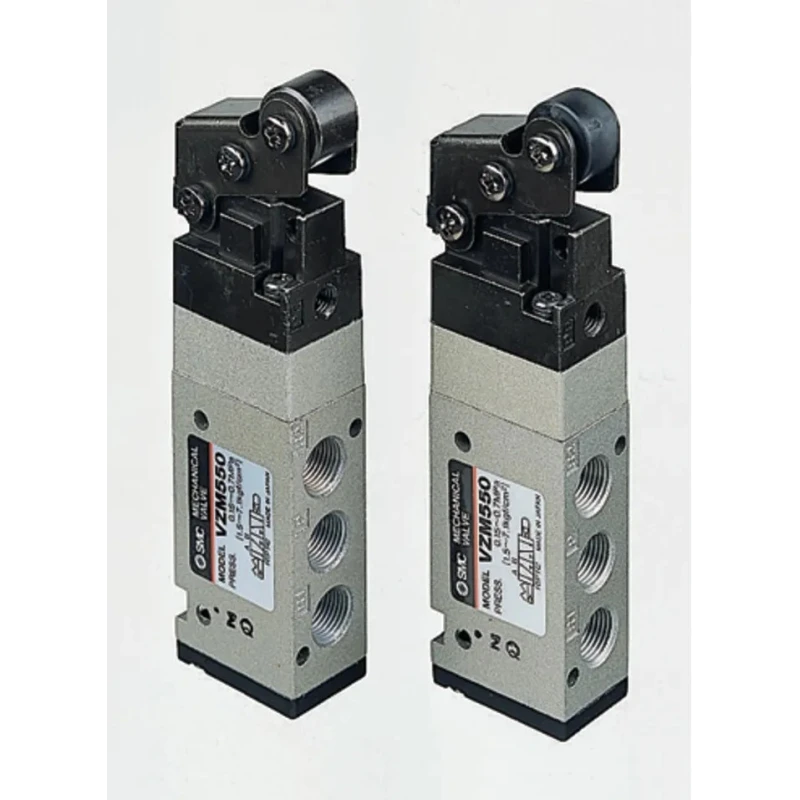

SMC Pneumatic Solenoid Valve 5/2 Pilot G 1/8 Aluminium Alloy Body Panel Mount EVZM550

SMC EVZM550 Pneumatic Solenoid Valve 5/2 Pilot G 1/8 is a compact and efficient valve designed for industrial pneumatic control systems. With a panel mount type and aluminium alloy body, it ensures durability and reliable performance even under demanding conditions.

This valve features a 5-port, 2-position design controlled by a pilot actuation method, providing precise directional control in pneumatic circuits. It uses nitrile rubber (NBR) seals to maintain airtight operation and prevent leaks.

Operating within a pressure range up to 0.7 MPa and a pilot pressure minimum of 0.15 MPa, this valve is capable of handling significant pneumatic loads. The valve maintains its performance across a temperature range from -5°C to 60°C, making it suitable for various industrial environments.

The connection ports are female with a G 1/8 threaded size, facilitating compatibility with standard pneumatic fittings. The valve’s compact dimensions of 70.6 mm length, 18 mm width, and 28 mm height enable easy integration into space-constrained setups.

Mounting is secured using a DIN mount pattern designed for panel mounting, offering a stable installation. The valve is capable of a maximum flow rate of 534.9 NL/min, supporting efficient air flow for pneumatic systems.

Manufactured in Japan by SMC, this solenoid valve represents quality craftsmanship expected in fluid power applications. It is ideal for use in industrial automation, manufacturing equipment, robotics, and pneumatic control panels.

Operates with a 5-port, 2-position valve function for controlling airflow. Features a 1/8 inch G threaded female port for easy connection integration. Constructed with a durable aluminium alloy body and nitrile rubber seals.

Supports a maximum operating pressure of 0.7 MPa and minimum pilot pressure of 0.15 MPa. Designed to operate in temperatures from -5°C up to 60°C for reliable performance. Compact dimensions measuring 70.6 mm length, 18 mm width, and 28 mm height.

Mounting is done via a panel with a DIN mount pattern for secure installation. Capable of a maximum flow rate of 534.9 NL/min, suitable for varied pneumatic systems. Manufactured in Japan assuring high quality and precision engineering.
