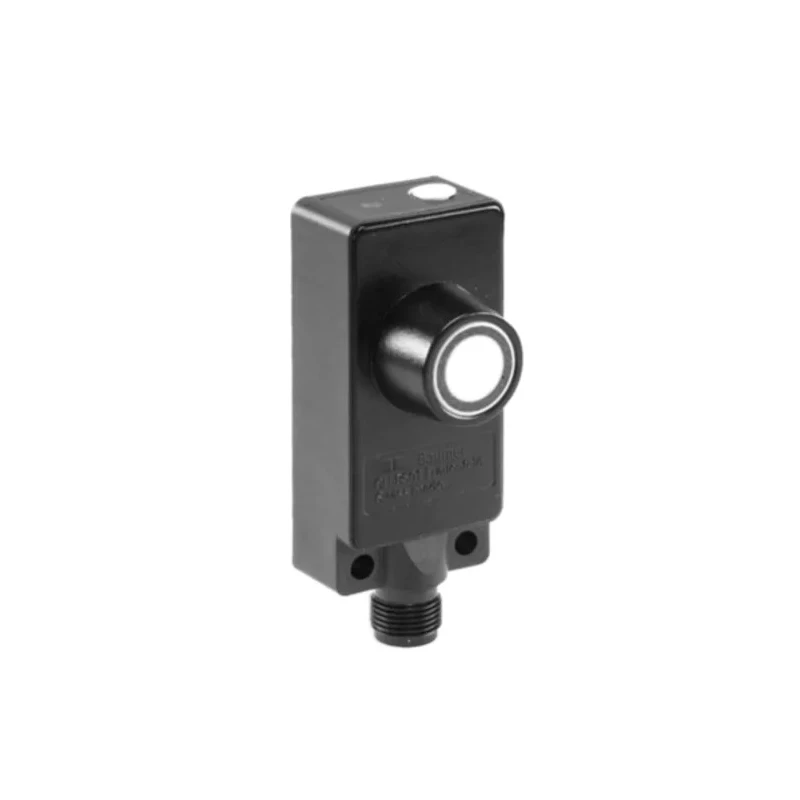

Baumer Block Ultrasonic Proximity Sensor M12 Thread, 400 mm Detection, 20mA Switching Current, 0/10 V UNDK 30U9112/S14
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | Baumer |
| Response time | 60ms |
| Length | 65mm |
| Model | UNDK 30U9112/S14 |
| Depth | 31mm |
| IP Rating | IP67 |
| Width | 30mm |
| Housing Material | Die Cast Zinc, Polyester |
| Output type | 0/10 V |
| Series | UNDK 30U9112/S14 |
| Maximum Operating Temperature | 60°C |
| Thread Size | M12 |
| Minimum Operating Temperature | -10°C |
| Switching Current | 20mA |
| Terminal type | 3-Pin M12 |
| Body Style | Block |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | CE |
| Maximum Supply Voltage | 30V |
| Maximum Detection | 400mm |
Key Features
- Features a robust die cast zinc and polyester housing ensuring durability.
- Thread size is M12 with a compact block body style measuring 65 mm length, 30 mm width, and 31 mm depth.
- IP67 rating provides protection against dust ingress and water immersion for reliable industrial use.
- Operates efficiently within temperature ranges from -10°C to +60°C, suitable for diverse environments.
- Provides a switching current of 20mA and rapid 60 ms response time for quick sensing applications.
- Equipped with a 3-pin M12 connector with protections against short circuit and reverse polarity.
- Complies with CE standards for quality and safety assurance.
- Designed for use in automation, control gear, and industrial electronics applications.
Product Description
Baumer UNDK 30U9112/S14 is a block-style ultrasonic proximity sensor designed for precise distance measurement up to 400 mm with an analog 0/10 V output, supporting industrial automation and control applications. The sensor features a durable housing made from die cast zinc and polyester, ensuring resistance against mechanical stresses and environmental factors.
The device includes an M12 thread connector and a 3-pin M12 terminal type, providing secure and easy installation with protection against short circuits and reverse polarity. With an IP67 ingress protection rating, it offers reliable operation in harsh environments by preventing dust and water ingress.
This sensor operates efficiently across a wide temperature range from -10°C to +60°C, making it suitable for various industrial and manufacturing settings. The switching current of 20mA, combined with a fast response time of 60 ms, enables rapid position detection and proximity sensing.
Compliant with CE standards, the UNDK 30U9112/S14 series conforms to industry regulations, ensuring safety and performance. The compact dimensions - 65 mm length, 30 mm width, and 31 mm depth - and block body style facilitate integration into existing machinery and control panels.
Durable die cast zinc and polyester housing for industrial robustness. 400 mm maximum detection distance enables versatile sensing applications. IP67 rating for protection in dusty and wet environments. 0/10 V analog output suitable for precise control feedback.
Fast 60 ms response time supports dynamic sensing. Operating temperature range from -10°C to 60°C offers adaptability. 3-pin M12 connector with built-in electrical protections. CE certified for compliance with European standards.
This Baumer Ultrasonic Proximity Sensor is ideal for use in automation, electronics, manufacturing, and process control industries. Its technical specifications ensure high reliability and accuracy in detecting object presence or distance measurement within limited ranges. Explore the Baumer sensor range at EnvMart for more options tailored to industrial sensing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection distance of the Baumer UNDK 30U9112/S14 is 400 mm.
This model has a response time of 60 ms, allowing for quick sensing applications.
It provides a 0/10 V analog output, suitable for precise control feedback.
The sensor has an IP67 rating, which ensures protection against dust and water immersion.
The dimensions of this unit are 65 mm in length, 30 mm in width, and 31 mm in depth.
The switching current for this model is 20 mA.
It operates efficiently within a temperature range of -10°C to +60°C.
It is equipped with a 3-pin M12 connector, providing secure installation with protections against short circuits and reverse polarity.
The housing is made from die cast zinc and polyester, ensuring resistance against mechanical stresses and environmental factors.
Yes, it complies with CE standards for quality and safety assurance.
This ultrasonic proximity sensor is designed for use in automation, control gear, and industrial electronics applications.
The body style of this sensor is block, which facilitates integration into existing machinery and control panels.
