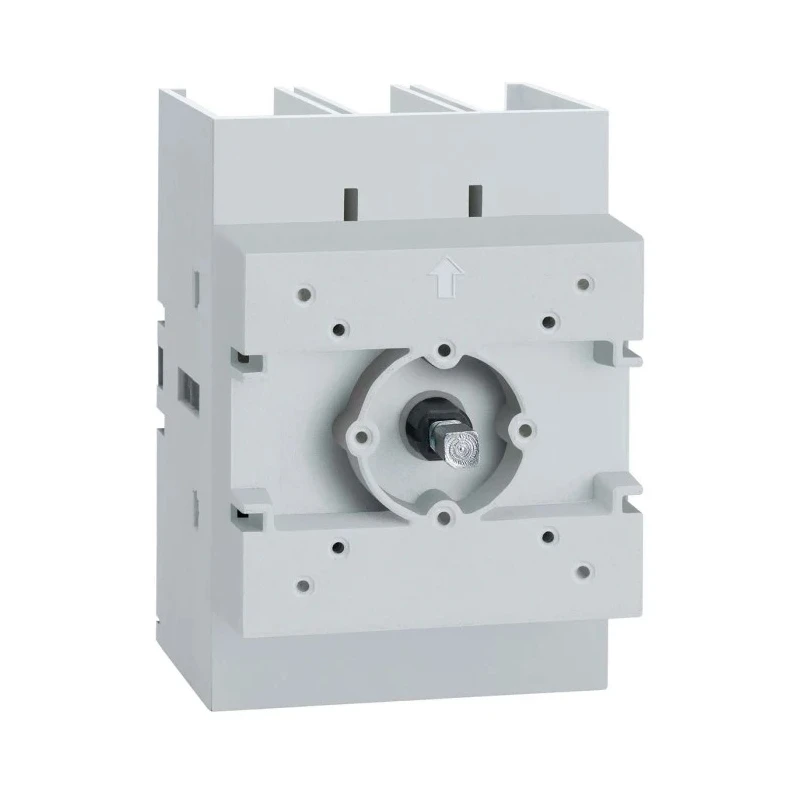

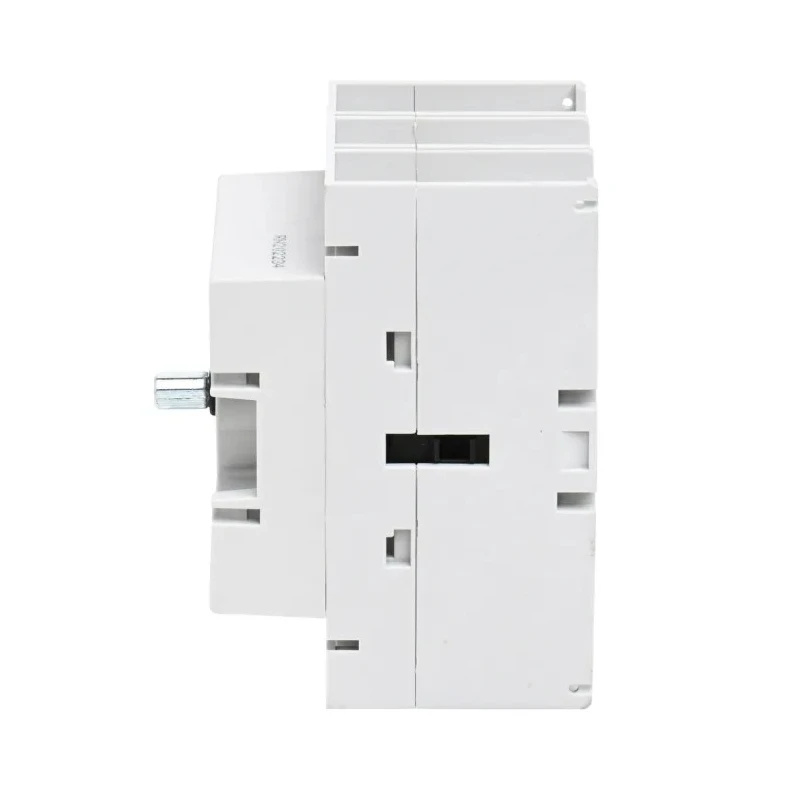

Schneider Electric 3-Pole Isolator Switch, IP20, 100A, 45 kW, TeSys VLS Series

Schneider Electric VLS3P100D2 3-Pole Isolator Switch is a high-quality disconnect switch with IP20 protection, rated at 100A and 45 kW for three-phase operation. It is part of the TeSys VLS series, suitable for integration into control systems across applications like material handling, HVAC, pumping, solar energy, and mining. The device features 3 normally open poles and mounts directly on enclosure doors, providing reliable isolation and operational safety.

The switch supports screw clamp terminals that accept solid or stranded wires from 12 AWG up to 1 AWG (10 mm solid, 16 mm stranded). It is padlock compatible to secure the isolation state, enhancing worker safety during maintenance and servicing. The grey-colored handle possesses fire resistance up to 1760 °F (960 °C), contributing to the switch’s robustness in hazardous conditions.

This isolator switch complies with key industry standards, including UL98, IEC 60947-3, and CSA C22.2 No 4, ensuring trusted performance in demanding industrial environments. It is UL508 motor disconnect rated for lower amperage variants and UL98 non-fusible disconnect rated for 100A and up to 125A switches. Switching power ratings per IEC specify 55 kW at 400 V, and up to 45 kW at 500 V and 690 V three-phase.

Operating temperature ranges from -25°C to 55°C, allowing for reliable use in diverse climates and applications. The device dimensions are compact - 100 mm length, 2.76 mm width, and 100 mm depth - making it suited for standard enclosures. This model weighs approximately 0.36 kg (0.80 lbs), facilitating straightforward installation.

Its compatibility with a variety of handles and accessories allows custom configurations to meet specific industrial needs. Schneider Electric’s VLS3P100D2 is widely used in electrical automation, manufacturing, water treatment, commercial HVAC, mining, and other industrial sectors requiring safe and dependable switch disconnection.

The switch has 3 normally open poles and mounts directly in enclosure doors. It supports screw clamp terminals compatible with 10 mm solid or 16 mm stranded wires. Suitable for switching AC voltage up to 690V with auxiliary contacts available.

Padlock compatibility ensures enhanced safety during maintenance. Certified to UL98, IEC 60947-3, and CSA C22.2 No 4 standards for quality and reliability. Operating temperature range is from -25°C to 55°C, suitable for varied industrial environments.

Compact dimensions of approximately 100mm length, 2.76mm width, and 100mm depth support versatile installation. Grey handle color with 1760 °F (960 °C) fire resistance enhances durability and safety. Explore the Schneider Electric range for reliable Isolator Switches and industrial electrical solutions at EnvMart.
