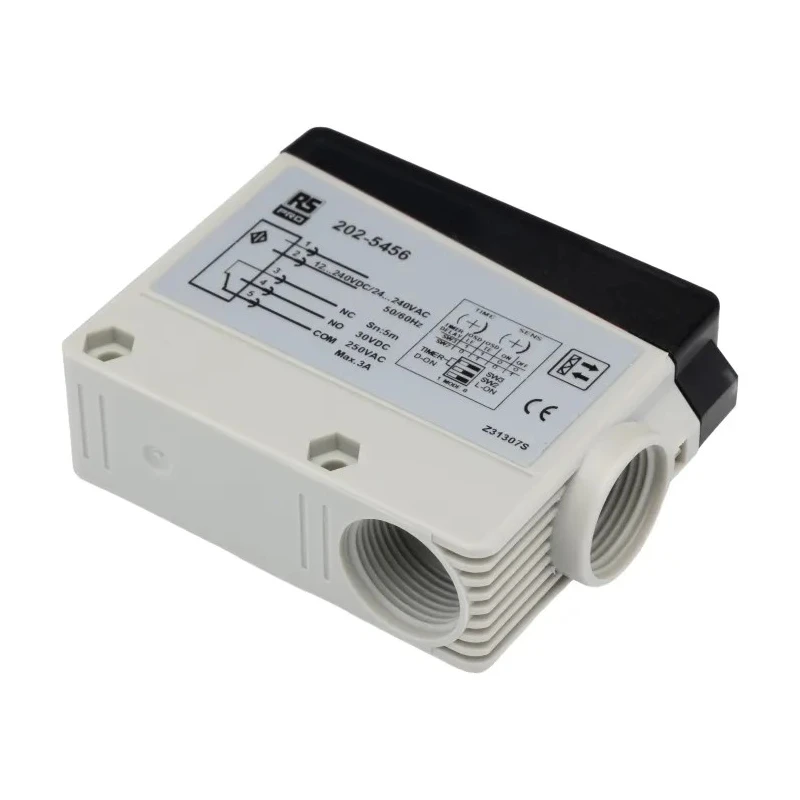

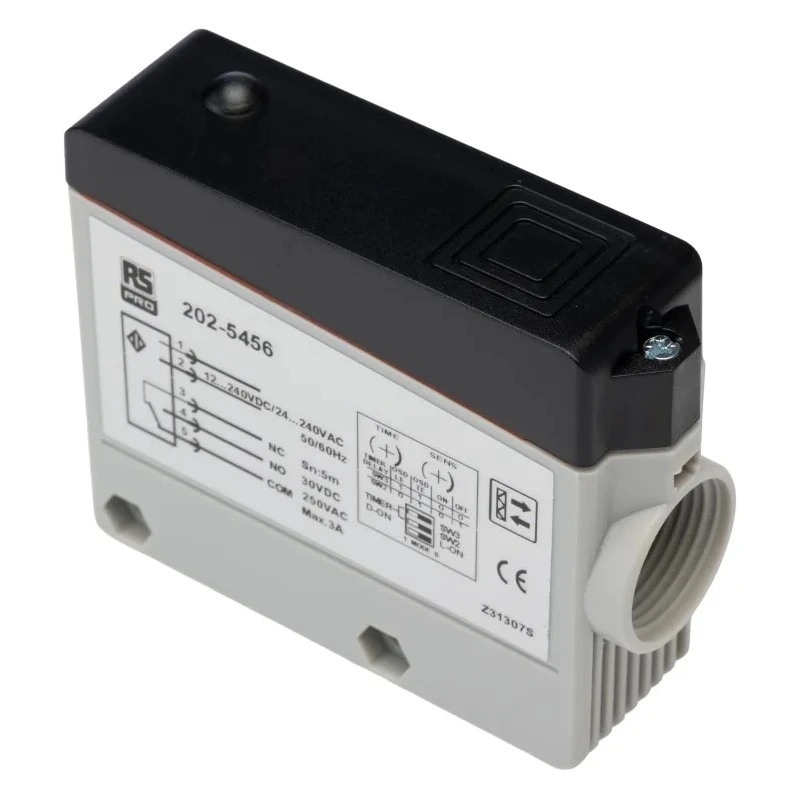

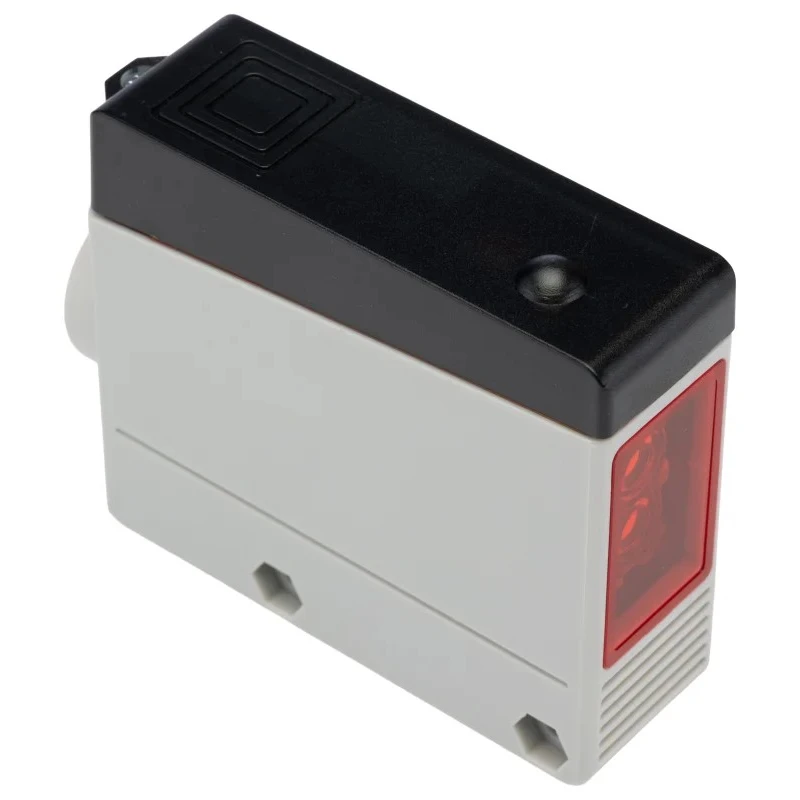

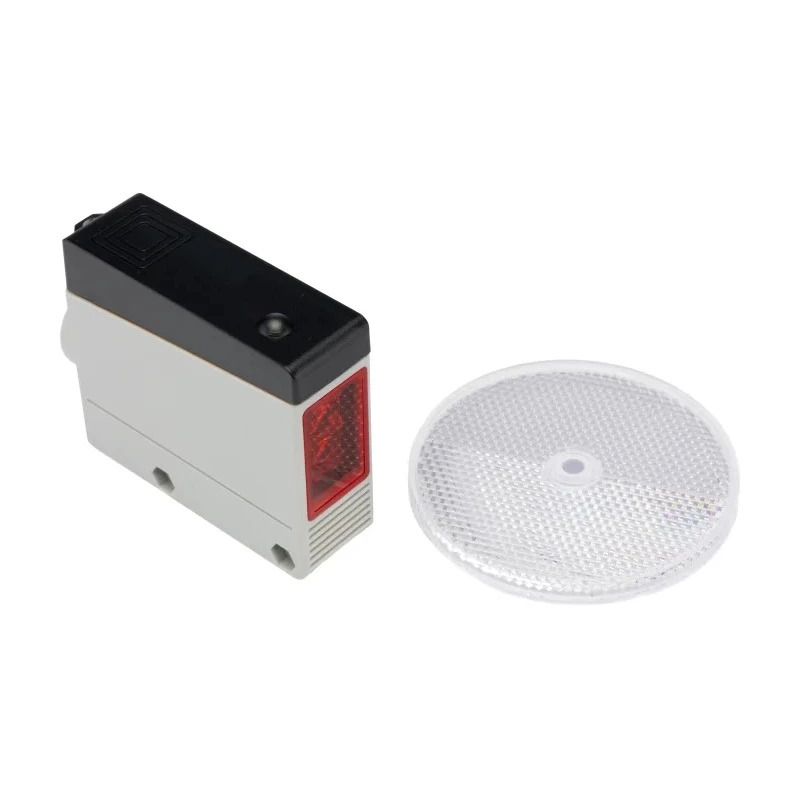

RS PRO Retroreflective Photoelectric Sensor Block Style 5 m Detection Range Relay Output IP67 Protection 202-5456
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Response time | 30μs |
| Light Source | Infrared LED |
| Detection range | 5 m |
| Model | 202-5456 |
| IP Rating | IP67 |
| Mount Type | Bracket, Screw |
| Housing Material | ABS, Polycarbonate |
| Output type | Relay |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -15°C |
| Maximum Current | 3A |
| DetectIon Type | Retroreflective |
| Terminal type | Terminal |
| Maximum dc Voltage | 240V dc |
| Standards/Approvals | CE |
| Maximum AC Voltage | 240V ac |
| Materials Detected | Opaque Object |
| Sensor Style | Block |
Key Features
- Retroreflective sensor ideal for detecting opaque and transparent objects at up to 5 meters.
- All-in-one block design housing emitter and receiver for easy installation.
- Relay output type ensures robust switching capabilities.
- Infrared LED light source with 880nm wavelength for accurate detection.
- Durable ABS and polycarbonate housing with IP67 rating protects against dust and moisture.
- Operates reliably within -15°C to 55°C temperature range.
- Fast response time of 30 microseconds for precise detection.
- Suitable for bracket or screw mounting in industrial environments.
Product Description
RS PRO 202-5456 retroreflective photoelectric sensor features a compact block-style design integrating emitter and receiver in a single housing. With a detection range of 5 meters and relay output, it is engineered for precise and reliable object detection in industrial automation and control applications.
This sensor employs an infrared LED light source emitting at 880nm wavelength, providing high accuracy in detecting opaque objects and transparent surfaces through retroreflective technology. Its robust ABS and polycarbonate housing ensures IP67-rated protection against dust ingress and water exposure.
The device operates efficiently in challenging environments, withstanding temperatures from -15°C up to 55°C. Its fast 30 microsecond response time enables timely signal processing in automated systems. Mounting options include bracket and screw for flexible installation in manufacturing machinery, home appliances, washroom facilities, and other industrial settings.
RS PRO's retroreflective Photoelectric Sensor is CE certified and designed to resist interference, making it suitable for diverse industrial, laboratory, and automation use cases requiring accurate presence detection and object counting.
Retroreflective sensor ideal for detecting opaque and transparent objects at up to 5 meters. All-in-one block design housing emitter and receiver for easy installation. Relay output type ensures robust switching capabilities.
Infrared LED light source with 880nm wavelength for accurate detection. Durable ABS and polycarbonate housing with IP67 rating protects against dust and moisture. Operates reliably within -15°C to 55°C temperature range.
Fast response time of 30 microseconds for precise detection. Suitable for bracket or screw mounting in industrial environments. Explore our extensive selection of industrial sensors and automation components to enhance your control systems and processes efficiently.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this sensor is up to 5 meters, allowing it to effectively detect both opaque and transparent objects.
It features a relay output type, which ensures robust switching capabilities for various applications.
The response time of this sensor is 30 microseconds, enabling precise and timely detection.
The housing is made from durable ABS and polycarbonate materials, providing protection and structural integrity.
This sensor has an IP67 rating, which means it is protected against dust ingress and can withstand immersion in water.
The sensor operates reliably within a temperature range of -15°C to 55°C.
It can be mounted using either brackets or screws, providing flexibility in installation.
The sensor uses an infrared LED light source with a wavelength of 880nm for accurate detection.
It is designed to detect opaque objects as well as transparent surfaces through retroreflective technology.
The maximum DC voltage is 240V and the maximum AC voltage is also 240V.
Yes, the sensor is CE certified, indicating compliance with relevant safety and performance standards.
The model number of this sensor is 202-5456, which identifies it within the RS PRO product line.
