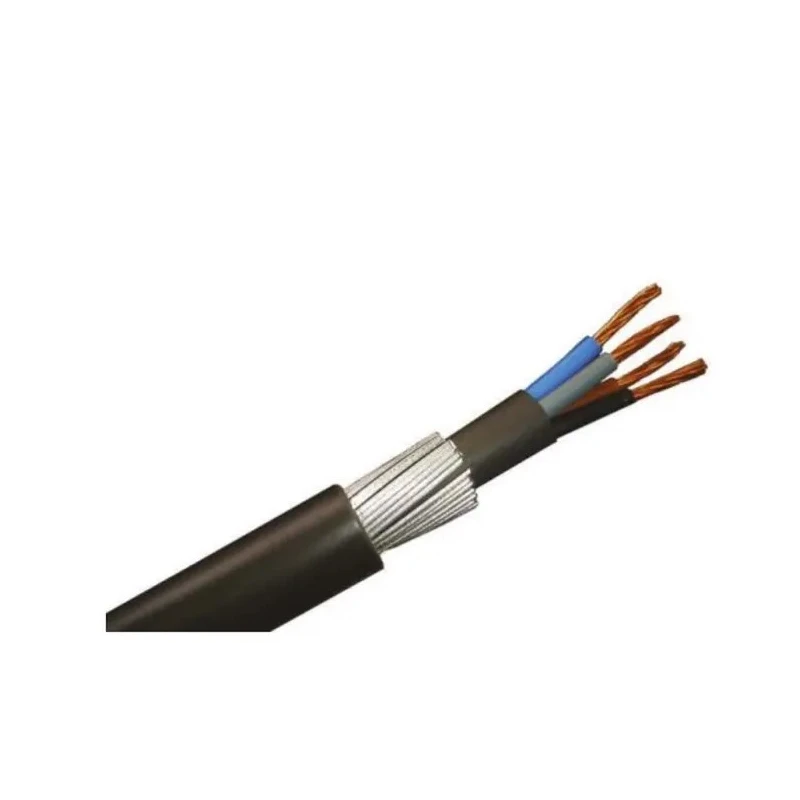

RS PRO 4 Core Power Cable Black 4mm² 600/1000V Cross Linked 90 °C 50 m 196-4694
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 1000, 600V |
| Brand | RS PRO |
| Model | 196-4694 |
| Cable Length | 50m |
| Outside diameter | 14.7mm |
| Maximum Operating Temperature | 90°C |
| Number Of Cores | 4 |
| Conductor Material | Annealed Copper |
| Minimum Operating Temperature | -15°C |
| Jacket Material | Cross Linked |
| Standards/Approvals | BASEC |
| Jacket Colour | Black |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.85mm |
| Size of Strands | 0.85mm |
| Cable CSA | 4mm² |
| RS PRO 4 mm² 4 Core Armoured Cable Polyvinyl Chloride PVCBrand | RS PRO |
Key Features
- Features a durable cross-linked polyethylene (XPLE) insulation for enhanced thermal and mechanical properties.
- Armoured with galvanised steel wire braid for superior mechanical protection and tensile strength.
- Stranded plain annealed copper conductors consisting of 7 strands of 0.85mm diameter each.
- Black PVC bedding and sheath provide waterproofing and flame retardant properties.
- Suitable for industrial wiring, mains distribution, direct burial, concrete embedding, and underground ducting.
- Complies with BS 5467 and BASEC standards for quality and safety.
- Rated maximum operating temperature of 90 °C and minimum operating temperature of -15 °C.
- Outside diameter of cable is 14.7mm ensuring solid build and flexibility.
Product Description
RS PRO 196-4694 is a high-quality 4 core armoured power cable designed for industrial and commercial electrical wiring applications. Rated at 600/1000 volts, it features a durable black cross-linked polyethylene (XPLE) insulation that enhances thermal performance and provides excellent mechanical strength and chemical resistance.
The cable uses stranded plain annealed copper conductors, each consisting of 7 strands of 0.85mm diameter, offering excellent conductivity and flexibility. It is armoured with galvanised steel wire braid to resist mechanical stresses, improving durability during installation in demanding environments.
The outer sheath and bedding are made of flame retardant PVC, offering waterproofing and additional protection. This makes the cable highly suitable for direct burial, embedding in concrete, or underground ducting, making it ideal for industrial wiring and mains distribution systems.
Manufactured in the United Kingdom to BS 5467 and BASEC approval standards, this cable assures compliance with rigorous quality and safety criteria. Its operational temperature range is from -15 °C minimum up to a maximum of 90 °C, ensuring reliable performance even in extreme conditions.
Durable cross-linked polyethylene insulation for enhanced longevity. Galvanised steel wire armour for superior mechanical protection. Stranded plain annealed copper conductors ensure excellent conductivity. Waterproof PVC bedding and sheath with flame retardant properties.
Complies with BS 5467 and BASEC standards for industrial quality. Rated for 600/1000V operation with a maximum temperature of 90 °C. Ideal for direct burial, embedding in concrete, and underground ducting.
The RS PRO 196-4694 power cable combines robust construction with high electrical performance, making it a versatile choice for industrial, manufacturing, commercial, and construction electrical installations. It is part of the trusted RS PRO range, known for superior quality and trusted by engineers globally.
Explore the wide range of industrial Power Cables and electrical accessories at EnvMart to meet your specific wiring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this power cable is 90 °C.
This power cable is rated for 600/1000 volts.
The cable features stranded plain annealed copper conductors, cross-linked polyethylene (XPLE) insulation, and a PVC bedding and sheath.
The outside diameter of this cable is 14.7 mm.
This power cable has 4 cores.
The minimum operating temperature is -15 °C, while the maximum is 90 °C.
Yes, it complies with BS 5467 and BASEC standards for quality and safety.
The length of this power cable is 50 meters.
It uses durable cross-linked polyethylene (XPLE) insulation.
This cable is suitable for industrial wiring, mains distribution, direct burial, concrete embedding, and underground ducting.
The cable has stranded plain annealed copper conductors, consisting of 7 strands of 0.85 mm diameter each.
It is armoured with galvanised steel wire braid for mechanical protection and has a flame retardant PVC sheath for additional safety.
