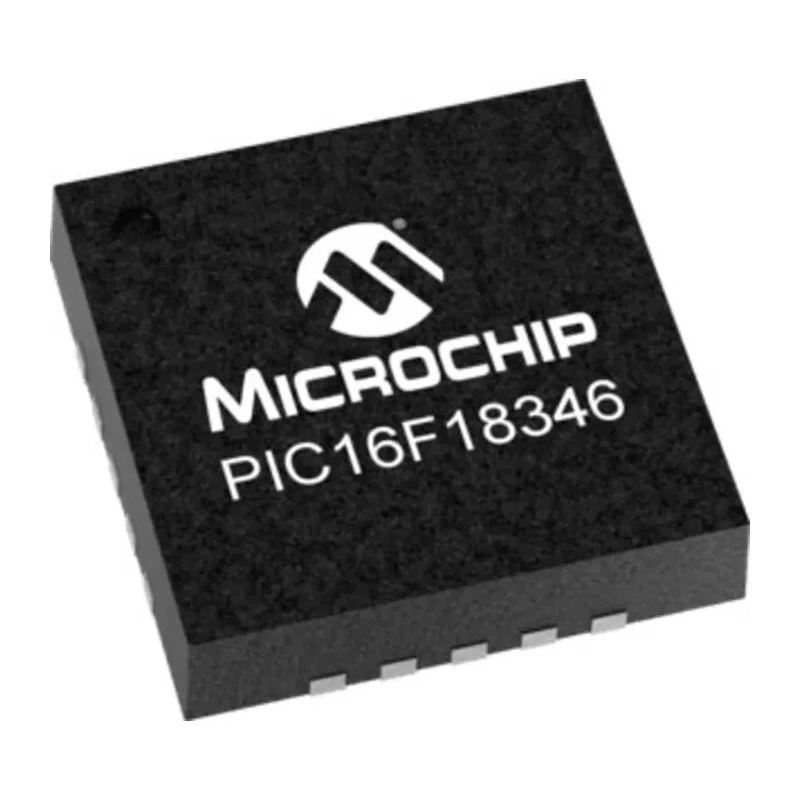

Microchip 8-bit PIC Microcontroller 28kB FLASH, 32 MHz, 20-Pin QFN PIC16F18346-I/ML

Microchip PIC16F18346-I/ML is an 8-bit PIC microcontroller combining analog and core independent peripherals with communication capabilities, designed for a wide range of general purpose and low power applications. Running at a maximum clock frequency of 32 MHz with 28kB FLASH memory and 2kB RAM, it ensures efficient embedded system performance.

This microcontroller supports a supply voltage range from 2.3V to 5.5V and operates reliably across industrial temperature ranges from -40°C to 85°C, making it suitable for harsh environments. The device incorporates 18 programmable I/O pins, 2 analogue comparators, 1 x 5-bit DAC, and 17 channels of 10-bit ADCs to accommodate diverse analog and digital interfacing needs.

Its 20-pin QFN package offers a small footprint with dimensions 4 mm length, 10.3 mm width, and 500 μm height, facilitating compact PCB designs with surface mount capability. The RISC instruction set architecture drives high instruction throughput and low power consumption.

With 2 internal timers and Peripheral Pin Select functionality, the PIC16F18346-I/ML allows flexible pin mapping for digital peripherals such as CLC, CWG, CCP, PWM, and communication interfaces enhancing application customization.

Compliant with RoHS standards, this product suits industrial, automotive, consumer electronics, and communication device applications requiring low power and versatile microcontrollers.

Operates with a maximum supply voltage of 5.5V for versatile applications. Features 18 programmable input/output pins for flexible interfacing. Integrated 2kB RAM to support various embedded operations. Includes 2 analogue comparators and a 1 x 5-bit DAC for precise analog functionality.

Ranges from -40°C to 85°C operating temperature, suitable for industrial environments. Compact 20-pin QFN surface-mount package measuring 4x10.3x0.5 mm. Employs RISC architecture ensuring efficient processing and low power consumption.
