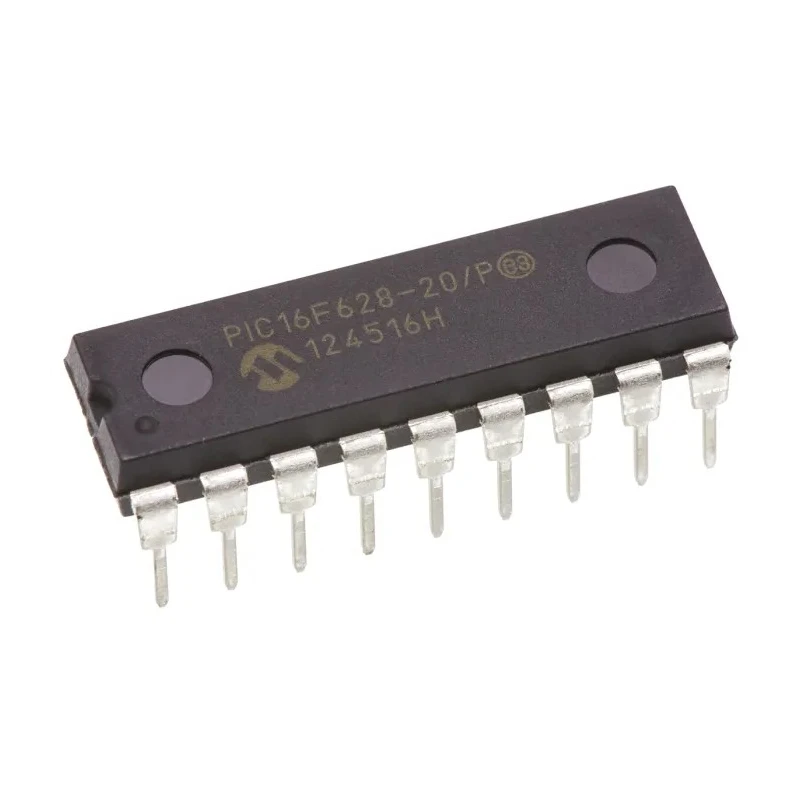

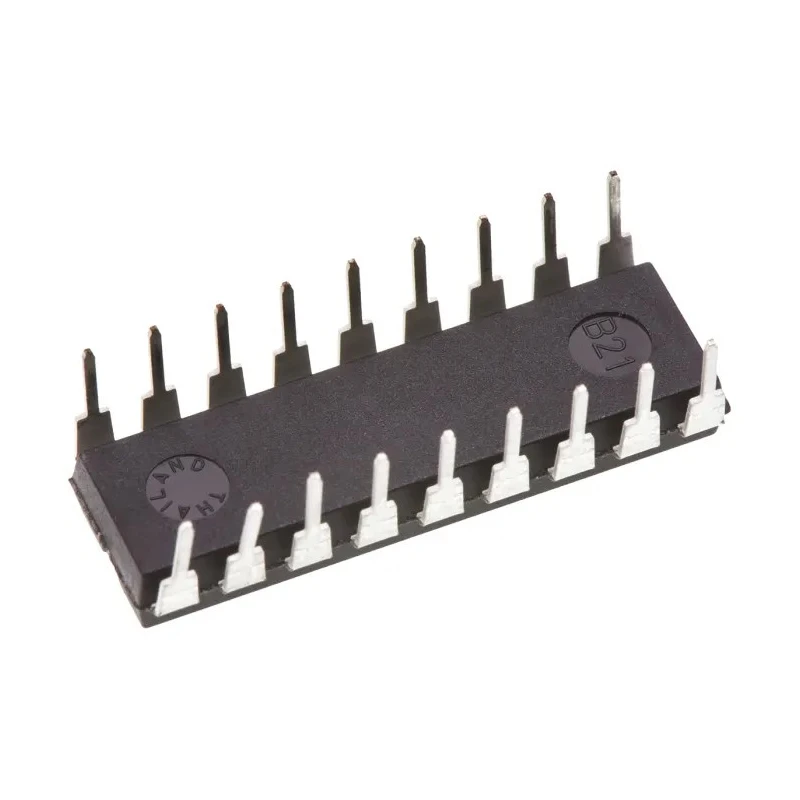

Microchip 8 bit PIC Microcontroller 20 MHz 3.5kB FLASH 18-Pin PDIP PIC16F628-20/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.68mm |
| Length | 22.99mm |
| Model | PIC16F628-20/P |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Series | PIC16F |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Ram size | 224bit |
| Interface Type | USART |
| Standards/Approvals | RoHS |
| Pin Count | 18 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 3V |
| Device Core | PIC |
| Program Memory Size | 3.5kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 16 |
| Analogue Comparators | 2 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 0 |
| Program Memory Type | FLASH |
Key Features
- Operates with an 8-bit PIC architecture featuring RISC instruction set.
- Integrated 224-bit RAM and 16 programmable I/O pins for versatile control.
- Maximum power dissipation of 800mW ensuring reliable performance.
- Supports USART interface for serial communication.
- Wide operating temperature range from 0°C to 70°C suitable for various industrial environments.
- Package designed for through-hole mounting with 18 pins in PDIP format.
- Incorporates two analogue comparators and three timers including a 16-bit timer.
- Powered by a supply voltage between 3V and 5.5V compliant with RoHS standards.
Product Description
Microchip PIC16F628-20/P is a high-performance 8-bit PIC microcontroller featuring a Mid-Range RISC core operating at a maximum clock frequency of 20 MHz. This microcontroller incorporates 3.5kB of FLASH program memory and 224 bits of RAM, making it suitable for embedded applications requiring moderate processing power and memory.
Encased in an 18-pin PDIP package designed for through-hole mounting, the PIC16F628-20/P supports up to sixteen programmable input/output pins, making it adaptable for various control and interfacing tasks. The device includes two analogue comparators, three timers (two 8-bit and one 16-bit), and a Universal Synchronous Receiver Transmitter (USART) interface for serial communications.
With a power dissipation rating of 800mW and an operating voltage range from 3V up to 5.5V, this microcontroller is capable of operating reliably across industrial temperature ranges from 0°C to 70°C. The inclusion of Power-On Reset (POR), Power-Up Timer (PWRT), Brown-Out Reset (BOR), and Watchdog Timer (WDT) further enhance its robustness in embedded control applications.
This device also supports In-Circuit Serial Programming (ICSP), simplifying programming and reprogramming during development or deployment phases. Compliance with RoHS standards ensures that the device meets environmental and safety regulations for electronic components.
The Microchip PIC16F628-20/P is widely used in industrial automation, consumer electronics, instrumentation, and general embedded control systems where reliable 8-bit performance with robust peripheral features is required.
Operates with an 8-bit PIC architecture featuring RISC instruction set. Integrated 224-bit RAM and 16 programmable I/O pins for versatile control. Maximum power dissipation of 800mW ensuring reliable performance. Supports USART interface for serial communication.
Wide operating temperature range from 0°C to 70°C suitable for various industrial environments. Package designed for through-hole mounting with 18 pins in PDIP format. Incorporates two analogue comparators and three timers including a 16-bit timer.
Powered by a supply voltage between 3V and 5.5V compliant with RoHS standards. Explore more advanced Microcontrollers and semiconductor components at EnvMart to meet your industrial and engineering project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz.
It features a program memory size of 3.5kB.
This microcontroller has 16 programmable input/output pins.
The operating temperature range for this model is from 0°C to 70°C.
It is packaged in an 18-pin PDIP format designed for through-hole mounting.
The maximum power dissipation is rated at 800mW.
It operates with a supply voltage between 3V and 5.5V.
This model supports a USART interface for serial communication.
It incorporates three timers, including two 8-bit timers and one 16-bit timer.
Yes, it includes two analogue comparators.
It uses a RISC instruction set architecture.
Yes, it is compliant with RoHS standards.
