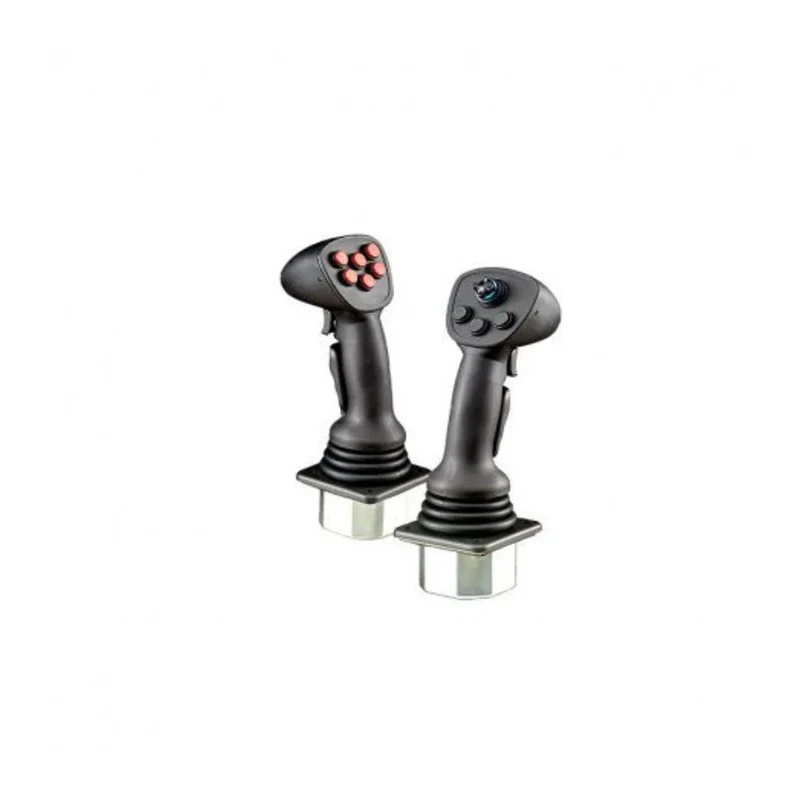

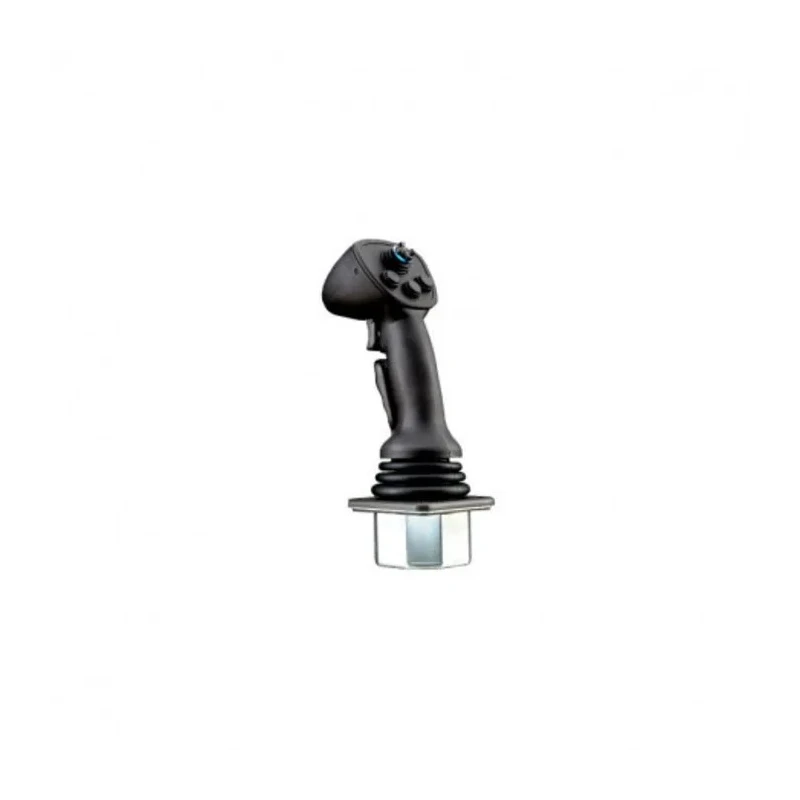

APEM XD 2-Axis Joystick Hall Effect Controller IP67, 35 V dc

The APEM XDGTT2LNNCYYKAN is a 2-Axis Joystick equipped with Hall Effect switch technology and rated IP67 for protection against dust and water ingress. Operating at 35 V dc contact voltage, this joystick is engineered for reliable and precise control in industrial and off-highway vehicle applications.

Featuring a shallow mounting depth of only 60 mm below the panel, this compact joystick supports ±20° travel on two axes to provide responsive and accurate control inputs. The Hall Effect non-contact sensing delivers up to 10 million operations, significantly enhancing durability and reducing mechanical wear compared to traditional contact-based joysticks.

Its rugged construction includes an all-metal body capable of withstanding horizontal loads of up to 400 lbf (1780 N), making it highly suitable for demanding usage scenarios. The joystick handle employs a uni-body modular design that allows customization with various inserts such as index trigger switches and operator presence paddles, enhancing design flexibility to meet specific operational needs.

Operational temperature ranges from -40°C to 85°C, ensuring dependable performance across extreme environments and conditions. This joystick series complies with RoHS standards, emphasizing environmental responsibility in manufacturing.

This robust controller is ideal for industrial machinery, off-highway vehicles, and other demanding equipment where reliable and long-lasting joystick performance is critical. Its IP67 rating ensures that it remains functional even in dusty or wet environments, supporting continuous industrial and automotive applications.

The joystick supports two axes, providing precise directional control. Equipped with Hall Effect technology ensuring non-contact sensing for durability. IP67 rating offers complete dust-tight protection and resistance to water immersion.

Joystick travel is ±20°, allowing for responsive control movements. Compact design with a shallow mounting depth of approximately 60 mm below panel. Built with robust all-metal construction to withstand horizontal loads up to 400 lbf (1780 N).

Operates reliably within temperature ranges from -40°C to 85°C. Designed specifically for harsh off-highway vehicle and machinery applications. Includes modular uni-body handle with optional inserts for customization. Explore the range of industrial Joysticks and control components at EnvMart for reliable automation solutions.
