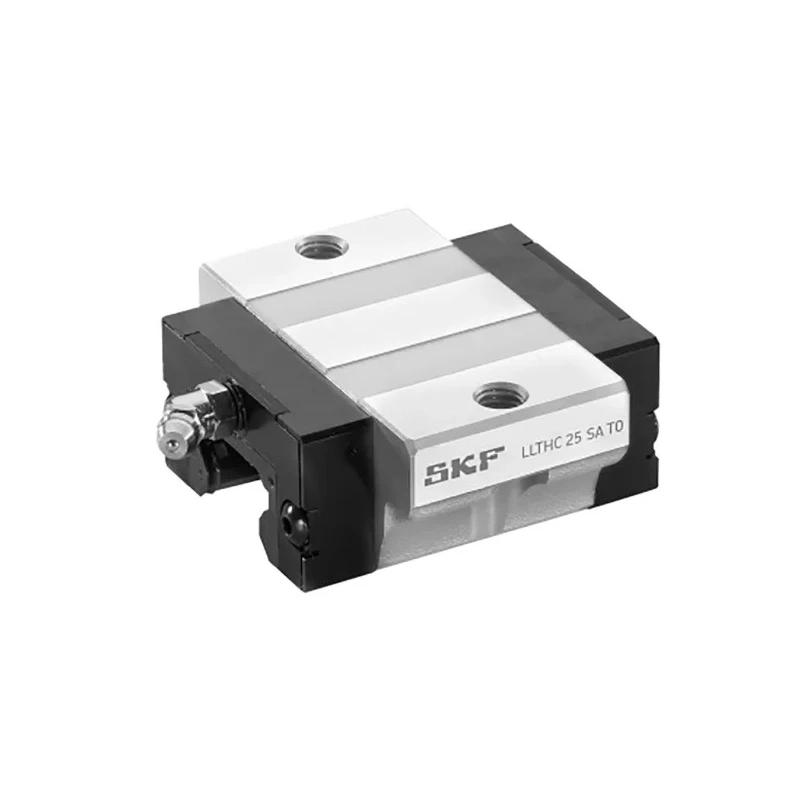

Ewellix Makers in Motion Linear Guide Carriage , 66.2mm Length, 70mm Width, 13500N Dynamic Load LLTHC 25 SA T0 P5

Ewellix Makers in Motion LLTHC 25 SA T0 P5 Linear Guide Carriage features an optimized compact design with a carriage length of 66.2mm and width of 70mm. It offers a dynamic load rating of 13500N and a static load rating of 19600N, suitable for demanding industrial, mechanical, and automation applications requiring precise linear motion and heavy load-bearing capacity.

The carriage integrates side and inner seals to protect against contaminants, enhancing durability and minimizing maintenance cycles. Rails with dual reference sides support accurate position referencing and stability. The low surface roughness on rails and carriage ensures smooth linear motion with low friction and wear, increasing system efficiency and operational lifespan.

This flanged carriage, suitable for sizes 15 to 35, includes two larger mounting threads on both the top and bottom, facilitating flexible and secure installation options in complex assemblies.

Typical industrial applications include mechanical machinery, automation equipment, robotics, and any linear motion system requiring high load ratings and precise linear guidance. The product's robust design and superior materials enable reliable operation in commercial and manufacturing environments.

Country of origin is Taiwan, Province Of China, reflecting quality manufacturing standards. The item condition is new, ideal for immediate deployment in engineering projects and equipment upgrades.

The carriage length measures 66.2mm ensuring compact design for space-limited assemblies. A carriage width of 70mm provides robust support and load distribution. The dynamic load rating of 13500N supports heavy-duty linear motion requirements.

Static load rating reaches 19600N, delivering high stability under stationary loads. Side and inner seals are integrated to reduce contamination ingress and maintenance needs. Rails include dual reference sides to enable precise linear positioning.

Low surface roughness on rails and carriage results in smooth, low-friction operation. Designed for easy installation with threads on both top and bottom sides for flexible mounting. Constructed for long service life with high wear resistance and minimal maintenance.
