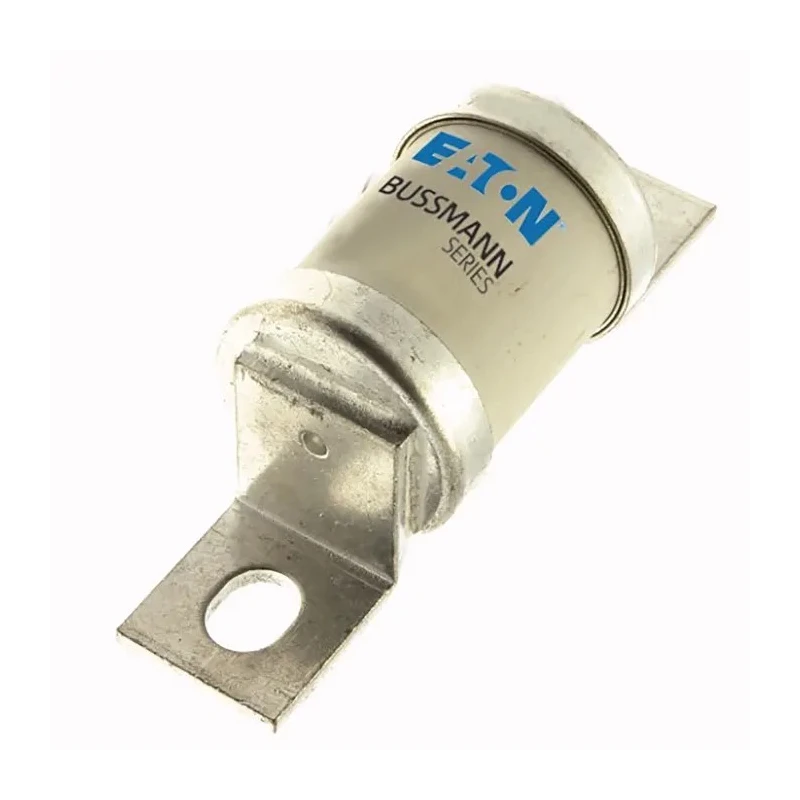

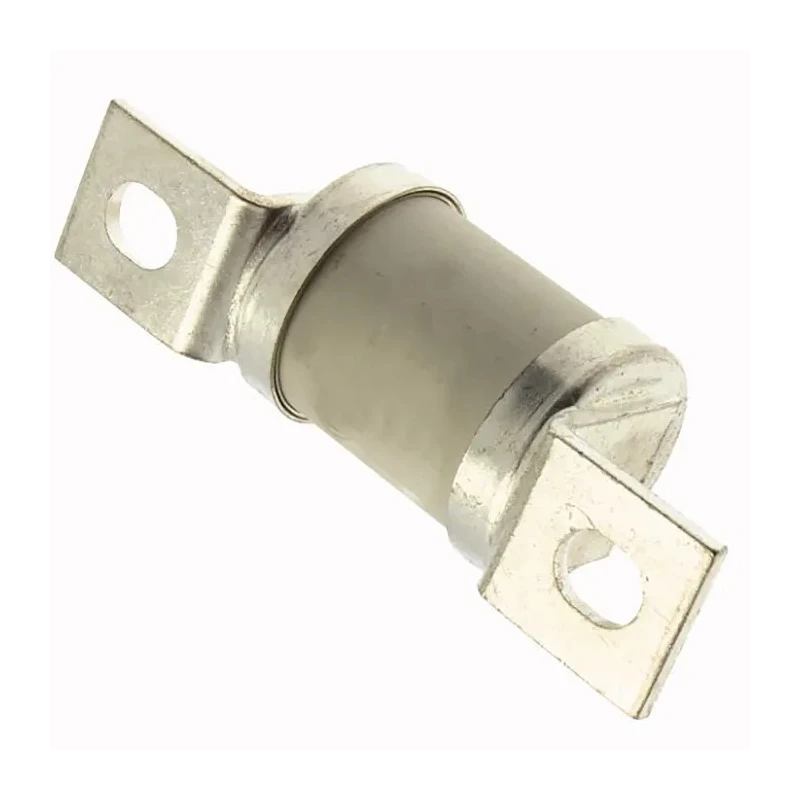

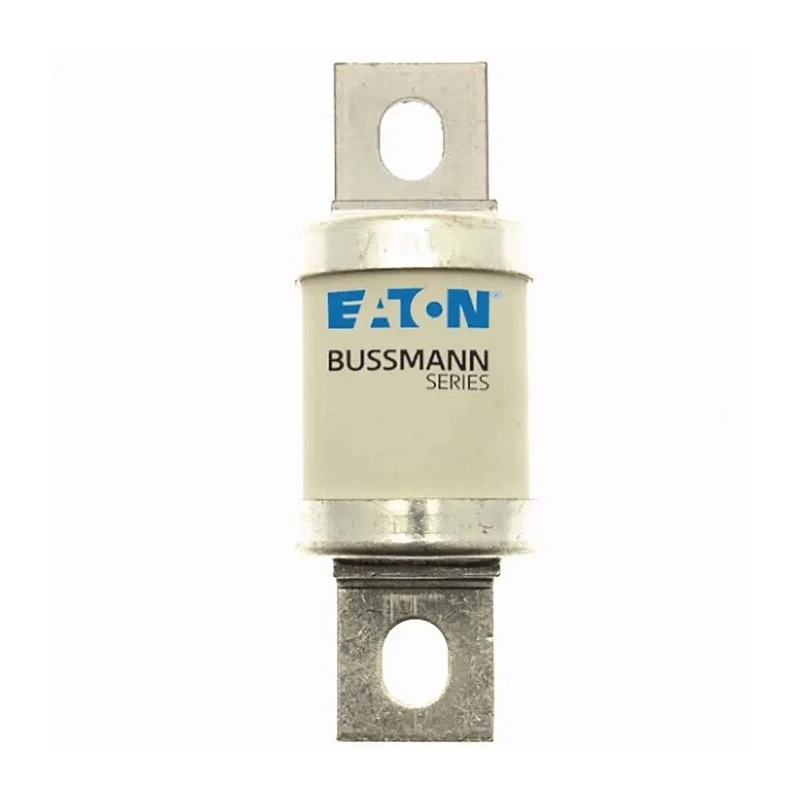

Eaton 160A Bolted Tag Fuse 690V AC High Rupture Capacity MT Series 160MT

Eaton 160MT Bolted Tag Fuse 160A 690V AC is a high-speed fuse-link designed for industrial electrical protection applications. This bolted tag fuse features a high rupture capacity (HRC), ensuring safety under fault conditions by interrupting high currents rapidly. Its robust construction and MT series fuse speed make it suitable for protecting electrical circuits in demanding environments, including manufacturing plants and large commercial installations.

The fuse has a 160 ampere current rating and is capable of operating at voltages up to 690 volts AC and 350 volts DC. Its physical design includes fixing centres at 85 mm and an offset tag orientation to facilitate secure bolt mounting and easy identification. Measuring 50 mm in length, with an overall length of 113 mm, height of 45 mm, diameter of 38 mm, and width of 115 mm, this fuse is compact yet effective for space-constrained switchboards and panel designs.

Compliant with international standards such as IEC 60269-4, CE, RoHS, CCC, and UL, the 160MT series assures quality, safety, and environmental compliance. Eaton, formerly known as Bussmann, manufactures this fuse in India, ensuring local availability. This fuse is suitable for industrial, commercial, and electrical automation applications requiring precise overcurrent protection in mid-to-high voltage systems.

Key features include high rupture capacity, offset tag orientation, and mounting flexibility for use in switchgear and control panels. The MT series fuse speed ensures prompt response to rapid current surges, preventing damage to equipment downstream. Industrial control systems, power distribution networks, and machinery circuits benefit from the protection offered by this Eaton bolted tag fuse.

Set contains 1 bolted tag fuse with specifications: Current rating 160A, voltage 690V AC, length 50mm, overall length 113mm, height 45mm. The physical measurements provide compatibility with standard housings and fixtures. Ideal for industrial, manufacturing, and electrical automation uses.

High rupture capacity ensures safety during overcurrent conditions. Rated current of 160 amperes suitable for various electrical systems. Voltage rating of 690 volts AC supports industrial power requirements. Fixing centres of 85 mm for secure bolt mounting.

Compact dimensions with 50 mm length and 113 mm overall length for efficient installation. Tag width of 25.4 mm and offset tag orientation for ease of identification and mounting. Manufactured in India maintaining strict compliance with IEC 60269-4 standards.

Applicable approvals include CE, RoHS, CCC, and UL for reliable quality assurance. Explore the Eaton range and related Tag Fuse products on EnvMart for comprehensive solutions in electrical circuit protection.
