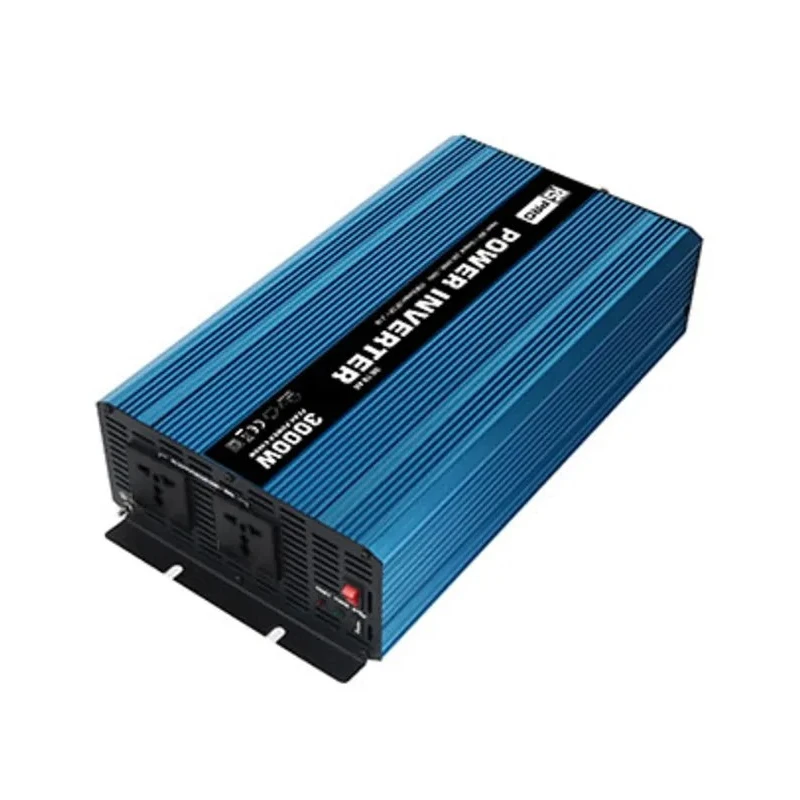

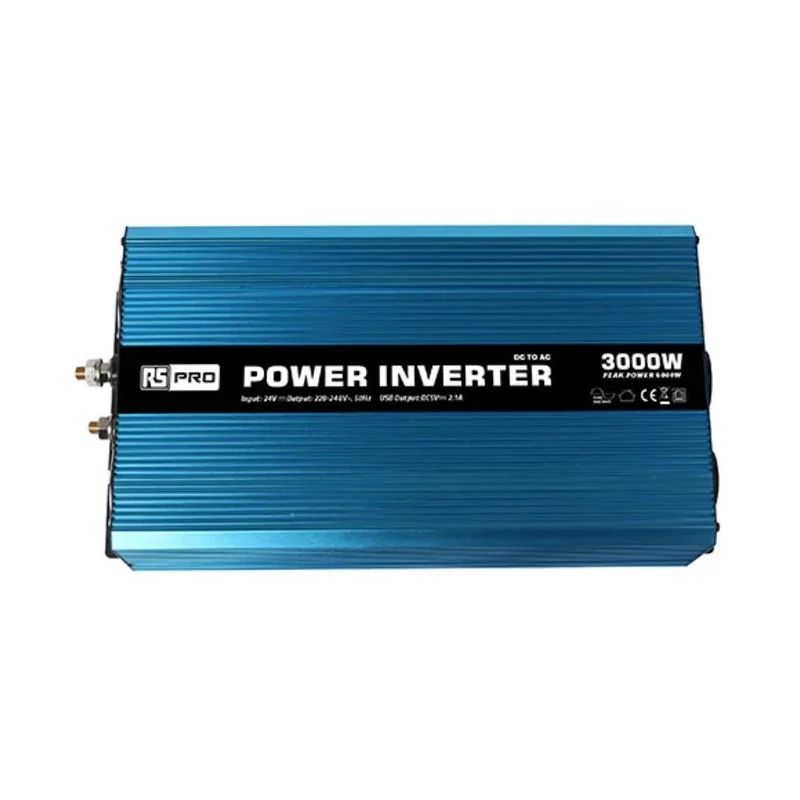

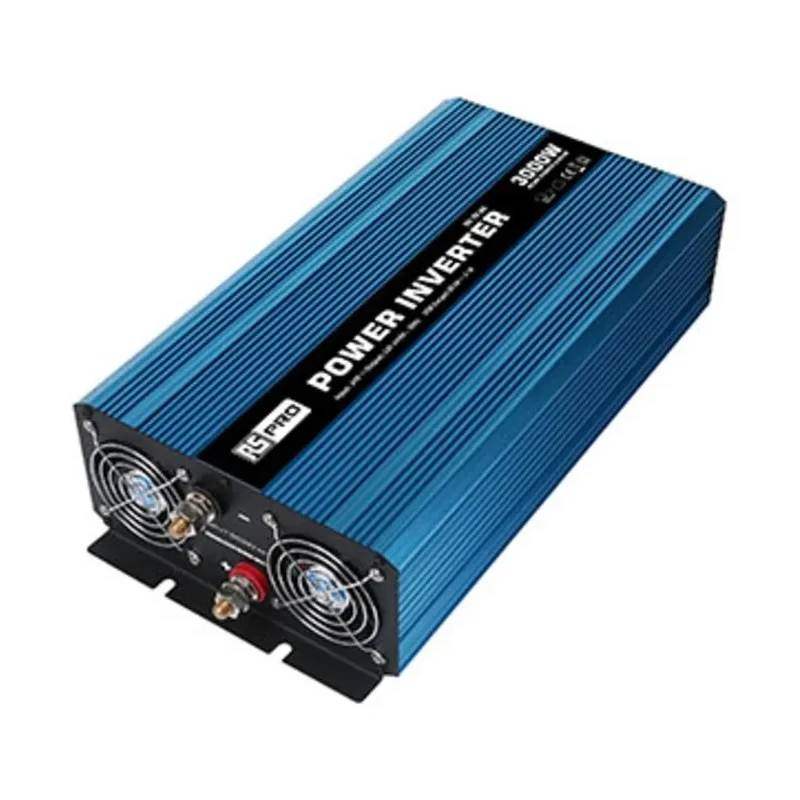

RS PRO Chassis Mount 3000W Fixed Installation DC-AC Power Inverter 24V Input 230V Output 179-3341

RS PRO 179-3341 is a robust chassis mount fixed installation DC-AC power inverter designed for industrial and commercial applications requiring reliable power conversion. Operating with a 24V DC input, it provides a pure sine wave output of 230V AC at 50 Hz. This inverter delivers a continuous power output of 3000W and supports intermittent surge power up to 6000W, suitable for running sensitive electrical equipment, power grids, and uninterruptible power supplies.

The inverter's chassis mounting allows secure, space-efficient installation. Its anodised aluminium housing ensures effective heat dissipation, complemented by a maximum operating temperature rating of 50°C and minimum of -20°C, enabling operation in demanding environments.

With universal AC output connectors featuring UK/Euro sockets and a 5V, 2.1A USB port, it supports a wide range of electrical devices. The pure sine wave output guarantees compatibility and optimal performance with complex loads such as refrigeration compressors and precision electronics.

Protection features include safeguards against over-voltage, under-voltage, short circuits, reverse polarity, overload, and overheating. Indicator lights provide clear operational feedback, enhancing user monitoring and safety.

Technical certifications demonstrate compliance with stringent standards such as EN 60950-1 for information technology equipment safety, electromagnetic compatibility under EN 61000-6-3, and electrostatic discharge requirements ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007. The product is RoHS compliant, ensuring restriction of hazardous substances.

Typical industrial and commercial use cases include power grids, uninterruptible power supplies, refrigeration units, HVAC systems, and other applications demanding reliable DC to AC power inversion with robust safety and efficiency measures.

Designed for fixed chassis installation with rugged anodised aluminium casing. Provides 3000W continuous and 6000W surge pure sine wave output at 230V AC. Input voltage is 24V DC with 26.9A output current and >90% efficiency.

Includes universal AC output connectors and a 5V USB charging port. Operates reliably from -20°C to +50°C with multiple safety protections. Complies with EN 60950-1, ECE R10.05:2014, CE, RoHS, and electrostatic standards.

Mean time between failures (MTBF) rated at 50,000 hours. Indicative lights ensure easy operational monitoring. Optimized for use in industrial, laboratory, commercial, and HVAC environments. Country of origin is China. Explore the RS PRO range at EnvMart for high-quality power supply and inverter products engineered for diverse industrial and commercial needs.
