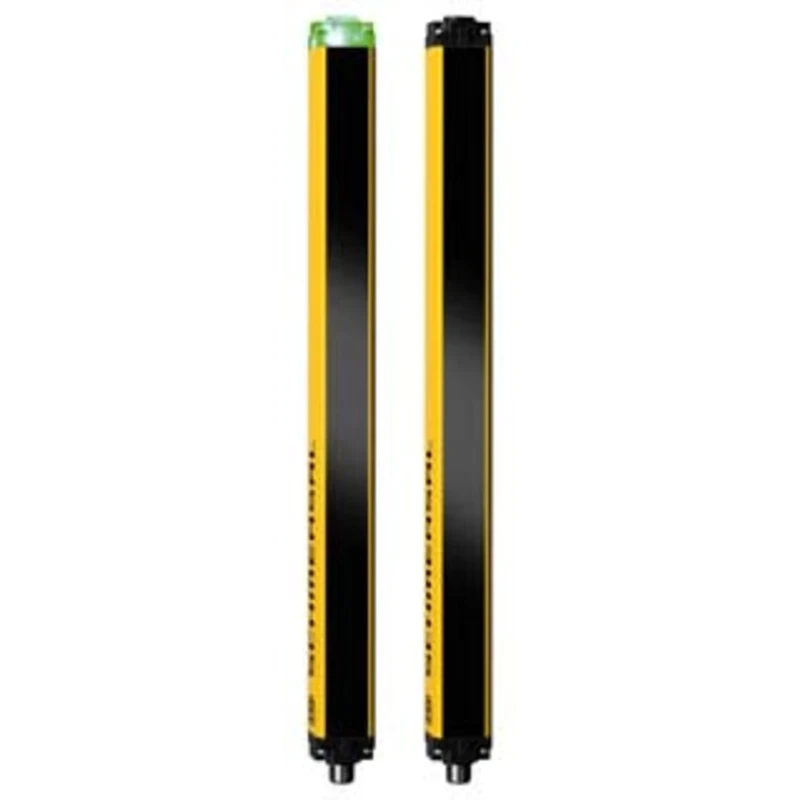

Schmersal Type 4 Safety Light Curtain Receiver, 32 Beams, 14 mm Resolution, 330mm Protective Height, 24V DC SLC440COM

Schmersal SLC440COM Type 4 Safety Light Curtain Receiver is engineered for enhanced personnel protection in industrial automation and machinery applications. Featuring 32 detection beams with a 14 mm resolution, it effectively detects small objects to prevent unauthorized access and accidents.

The receiver forms part of a safety light curtain system providing a protection height of 330 mm and a maximum protective width of 7 meters, ideal for safeguarding hazardous zones. It operates on a 24V DC power supply and boasts a rapid response time of 10 ms, ensuring fast machine stoppage upon detection.

With compact dimensions measuring 33 mm in length, 27.8 mm in width, and 371 mm in height, the unit fits easily into confined spaces. Its robust aluminum body offers excellent impact and corrosion resistance, backed by an IP67 ingress protection rating.

The device supports installation with cable lengths up to 100 meters via a 5-Pin M12 terminal, facilitating flexible deployment in various industrial settings. Designed to operate in temperatures ranging from -10°C to +50°C, it is well suited for demanding environments.

Certified to meet TUV, cULus, and EAC standards, this light curtain receiver complies with stringent safety regulations for industrial use. It finds application in automotive manufacturing and industrial cutting machinery to ensure operator safety by rapidly detecting intrusion and shutting down dangerous equipment.

The receiver protects with a 330 mm protective height and covers a maximum width of 7 meters. Operates at 24V DC supply voltage suitable for integration in industrial safety systems. Features a fast response time of 10 ms for rapid machine stop to prevent injuries.

Compact dimensions of 33 mm length, 27.8 mm width, and 371 mm height enable space-efficient installation. Durable aluminum housing offers impact and corrosion resistance for harsh industrial environments. Rated IP67, the device is protected against dust ingress and short-term water immersion up to 1 meter.

A cable length of up to 100 meters supports long-distance installation flexibility. 5-Pin M12 terminal type enables secure and standardized electrical connections. Wide operating temperature range from -10°C to 50°C suits demanding industrial conditions.

Compliant with TUV, cULus, and EAC safety standards ensuring regulatory acceptance. Ideal for use in automotive industries and industrial cutters requiring precise personnel safeguarding.

Schmersal Safety Light Curtains facilitate compliance with industrial safety requirements and protect personnel from machine-related hazards. Browse our selection for a comprehensive range of safety automation products at EnvMart.
