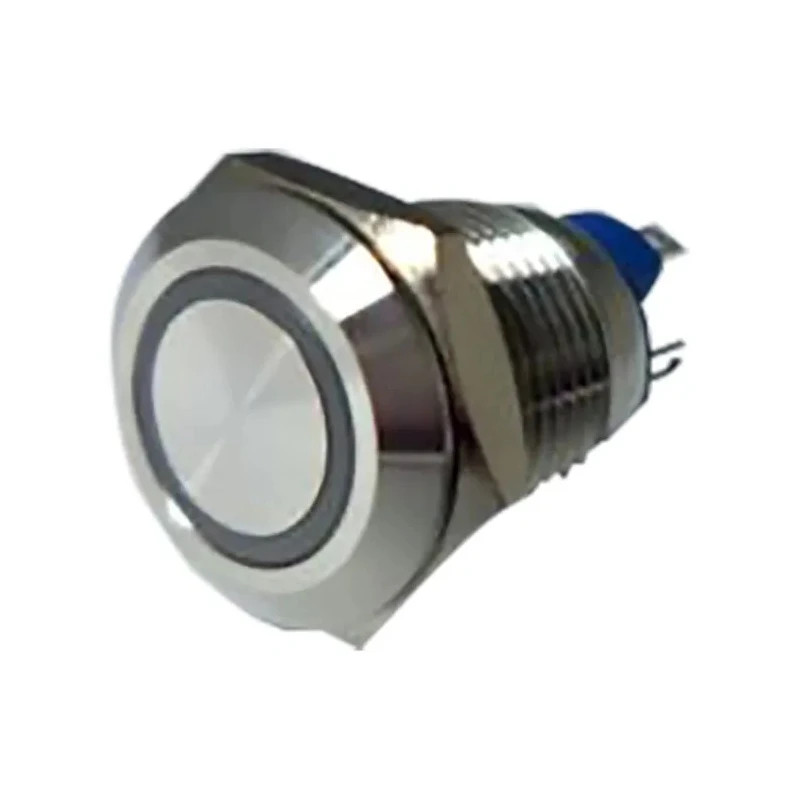

RS PRO Illuminated Momentary Push Button Switch, Panel Mount, SPST, White LED, 12 mm Cutout, IP65 IP67, 36 V dc 24 111-6533
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Model | 111-6533 |
| IP Rating | IP65, IP67 |
| Mount Type | Panel |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPST |
| Switch Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 12 mm |
| Terminal type | Quick Connect |
| Standards/Approvals | RoHS |
| LED Colour | White |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 36V dc |
| Actuator Style | Flat |
| Switch Contact Current | 15mA |
| Contact AC Voltage | 24V ac |
Key Features
- The switch features a 12 mm panel cutout and flat silver actuator for a sleek design.
- It supports a contact DC voltage of 36 V and AC voltage of 24 V.
- Designed with IP65 and IP67 ratings, it ensures high resistance to dust and water.
- Utilizes silver alloy contacts for excellent conductivity and a switch contact current of 15 mA.
- Compatible with quick connect terminals for easy installation and operation.
- RoHS compliant, ensuring environmentally safe manufacturing standards.
- Operational temperature range spans from -20°C to 55°C for versatility in various conditions.
- Ideal for applications requiring reliable momentary switching such as industrial control panels and public-use devices.
Product Description
RS PRO 111-6533 Illuminated Push Button Switch is a momentary, panel mount switch designed for use in industrial and demanding environments. It features a 12 mm panel cutout size and a flat silver actuator, providing a durable and aesthetically sleek interface for on/off control.
Built to withstand harsh conditions, this switch carries IP65 and IP67 ratings, ensuring reliable dust and water resistance, making it suitable for both internal and external applications including public interaction areas.
The switch operates with a single-pole, single-throw (SPST) contact configuration and uses silver alloy contacts to provide excellent electrical conductivity and durability. It supports a maximum DC contact voltage of 36 V and AC contact voltage of 24 V, with a switch contact current rating of 15 mA.
Illuminated by a white LED, it offers clear status indication, suitable for control panels and automation applications. The quick connect terminal type facilitates straightforward assembly and maintenance.
The device is RoHS compliant, guaranteeing adherence to environmental safety standards. Operating temperature ranges from -20°C to 55°C, supporting diverse industrial, manufacturing, and automation control environments. Its stainless steel and robust construction make it ideal for situations exposed to public use or outdoor environments.
This switch is commonly used in industrial automation, electrical control panels, HVAC systems, and other commercial installations demanding reliable, illuminated momentary switching solutions.
Explore the wide range of high-quality switches and components available at EnvMart to complement your industrial and automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a panel cutout size of 12 mm.
It has a single-pole, single-throw (SPST) contact configuration.
This switch is rated IP65 and IP67, providing high resistance to dust and water.
The maximum DC contact voltage supported by this switch is 36 V.
The switch contact current rating is 15 mA.
It utilizes quick connect terminals for easy installation and operation.
The operational temperature range spans from -20°C to 55°C.
The LED in this switch is white, providing clear status indication.
It features a flat actuator style with a silver color.
Yes, this switch is RoHS compliant, ensuring it meets environmental safety standards.
It is suitable for applications in industrial automation, electrical control panels, and HVAC systems.
The switch is manufactured in Taiwan.
