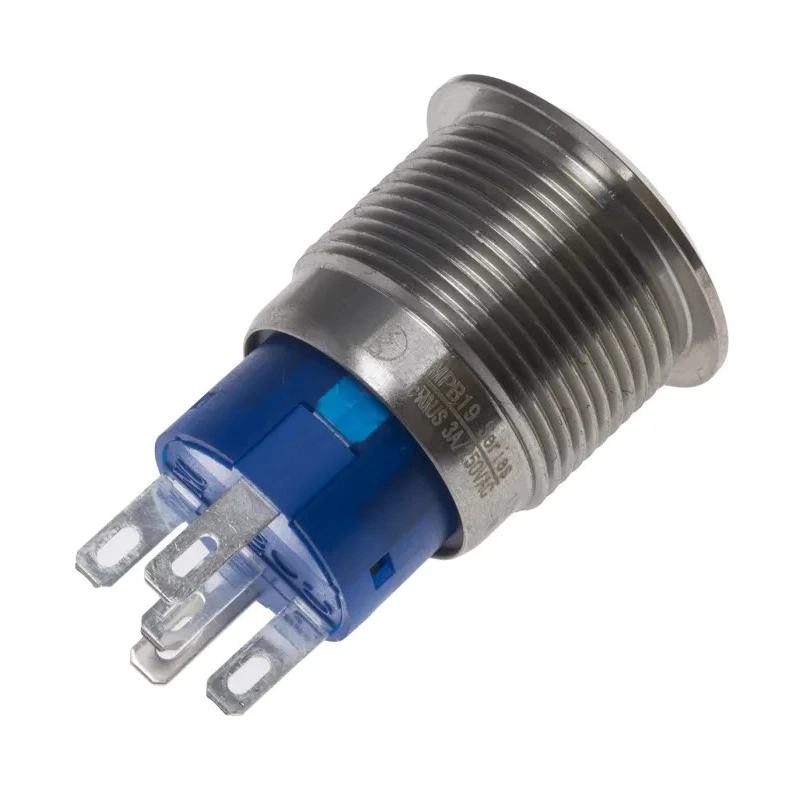

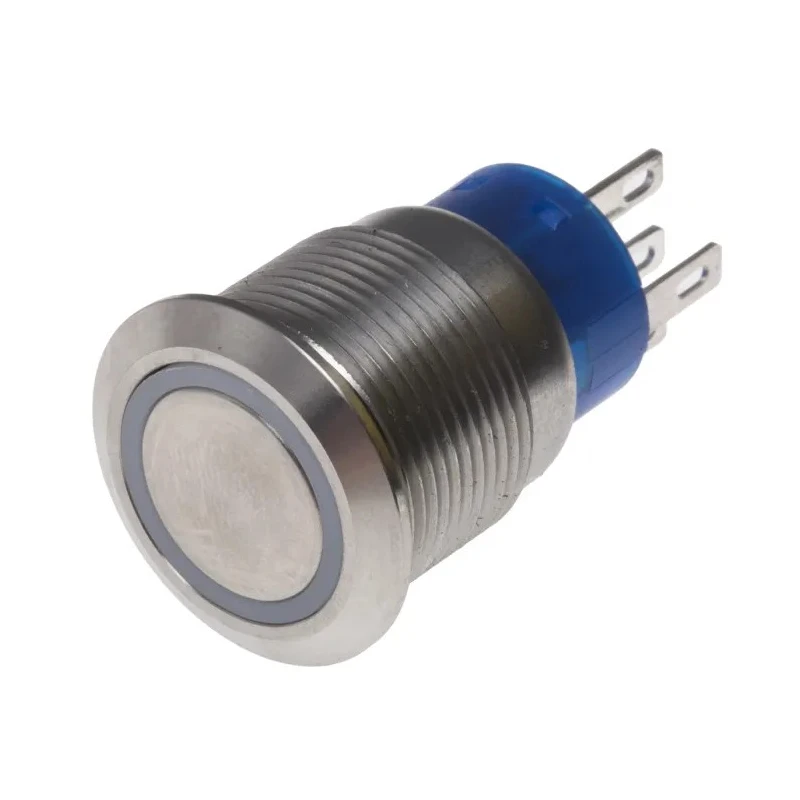

RS PRO Illuminated Latching Push Button Switch Panel Mount 19.2 mm Cutout SPDT White LED IP67 250 V AC 5A 111-5792

Name: RS PRO Illuminated Latching Push Button Switch Panel Mount 19.2 mm Cutout SPDT White LED IP67 250 V AC 5A 111-5792
Brand: RS PRO
SKU: 300611
Price: 28.46 USD
Availability: InStock



Category Push Button Switch Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Model	111-5792
IP Rating	IP67
Mount Type	Panel
Maximum Operating Temperature	55°C
Contact Configuration	SPDT
Switch Configuration	SPST
Minimum Operating Temperature	-20°C
Panel Cutout Size	19.2 mm
Terminal type	Solder Pin
Standards/Approvals	cULus Recognized E 187490, ENEC 18, IK10
LED Colour	White
Switch Operation	Latching
Actuator Colour	Silver
Contact DC Voltage	250V
Actuator Style	Round
Switch Contact Current	5A
Contact AC Voltage	250V ac

Key Features

The switch is illuminated with a white LED providing clear operational status.
Constructed with a silver actuator and round style for ergonomic operation.
IP67 rating ensures excellent protection against dust and water ingress.
Rated for 250 V AC voltage and a 5A contact current for reliable performance.
The compact design fits well in space-restricted applications.
Suitable for industrial control, medical equipment, and communications gear.
Silver-plated copper contacts enhance connection reliability.
Operating temperature range from -20°C to 55°C supports various environments.

Product Description

RS PRO 111-5792 is an illuminated latching push button switch designed for panel mounting with a precise 19.2 mm cutout. It features a silver round actuator with SPDT (Single Pole Double Throw) configuration and a white LED for illumination. The device operates reliably at 250 V AC with a rated contact current of 5A, making it suitable for demanding electrical control applications.

The push button switch offers an IP67 ingress protection rating, ensuring it is dust-tight and protected against temporary immersion in water. Its compact design allows installation in space-restricted environments while maintaining excellent durability. Silver-plated copper contacts provide secure and consistent electrical connection quality.

Featuring a temperature operating range from -20°C to 55°C, the switch is suitable for various industrial and medical equipment uses. The solder pin terminals facilitate easy and secure PCB or wiring integration, while its compliance with international standards such as cULus Recognized, ENEC 18, and IK10 confirms its high quality and impact resistance capabilities.

This RS PRO push button switch is commonly employed in industrial control gear, communication equipment, and premium hobbyist electronics where reliable switching and illumination are critical. Its robust construction and compliance with rigorous standards ensure dependable performance in harsh environments.

The switch provides protected panel mounting with a 19.2 mm cutout for easy integration. Illumination is achieved using a white LED for enhanced visibility. The device features a latching action suitable for maintaining switch state.

Designed with silver actuator and round style for ergonomic use. IP67 rating guarantees protection against dust and water exposure. Rated to 250 V AC and 5A contact current for industrial applications. Silver-plated copper contacts ensure reliable conduction.

Temperature range from -20°C to 55°C for versatile environments. Mount type is panel with solder pin terminals for secure fitting. Certified to cULus Recognized, ENEC 18, and IK10 standards.

This product is a trusted choice within the push button switches category for electrical, industrial, and medical applications. It offers a compact, robust, and compliant solution for demanding control interfaces. Explore other RS PRO Push Button Switches and related electrical components in the EnvMart catalog.
