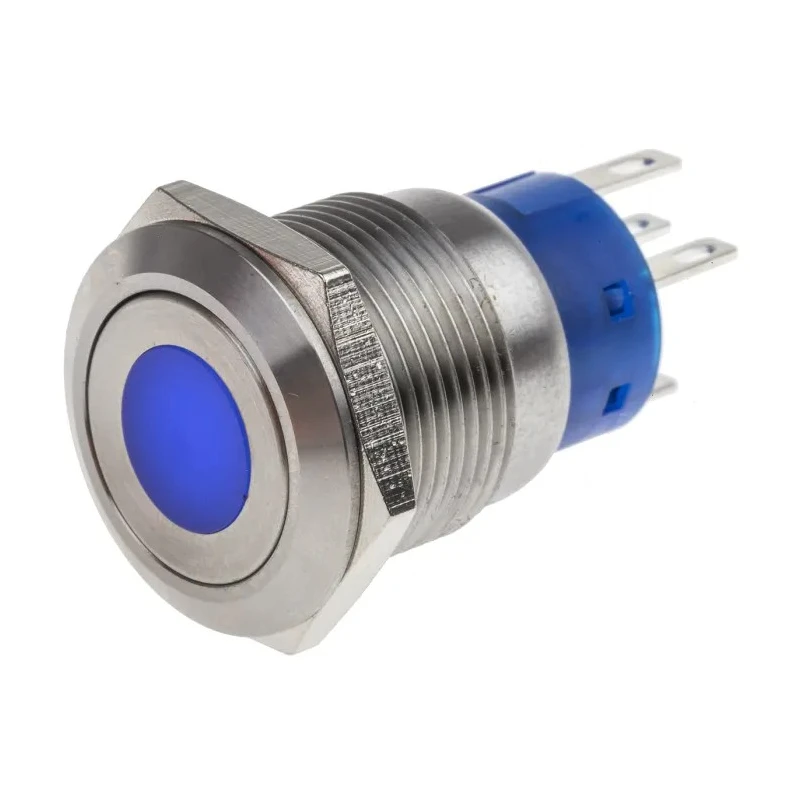

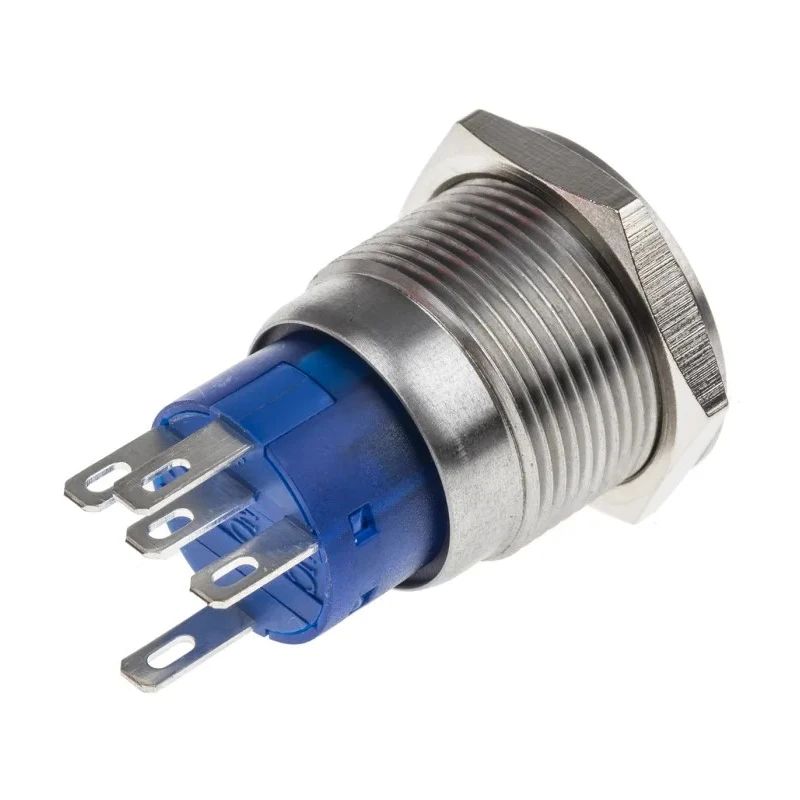

RS PRO Illuminated Latching Push Button Switch Panel Mount 19.2 mm Cutout SPDT Blue LED IP67 250V 5A 111-3899

RS PRO 111-3899 Illuminated Latching Push Button Switch is designed for rigorous panel mounting applications where durability and reliability are critical. This switch features a 19.2 mm panel cutout size and a latching SPDT contact configuration that provides stable on/off control in electrical circuits.

The actuator is finished in silver color with a round style, complemented by silver plated copper contacts ensuring excellent conductivity and extended service life. The integrated blue LED illumination provides a clear visual indication of switch status, enhancing operational safety and ease of use.

With an IP67 rating, this push button switch offers superior protection against dust ingress and water immersion, making it ideal for use in demanding industrial and communications equipment. The switch operates reliably within an ambient temperature range from -20°C to 55°C, suitable for a broad spectrum of environments.

Electrical ratings include a contact voltage of 250 V AC/DC and a maximum contact current of 5 A, catering to medium power control applications. The switch terminals are solder pins ensuring secure and stable electrical connections upon installation.

This RS PRO switch meets cULus Recognized standards (E 187490) and has an IK10 impact rating, attesting to its safety, quality, and robustness. Typical applications include medical devices, industrial control gear, communications equipment, and premium hobbyist switching projects.

Features a latching switch operation with a round actuator style. Silver actuator color with silver plated copper contacts for reliable connectivity. Rated IP67 for dust and water resistance suitable for harsh environments.

Designed for 250 V AC/DC contact voltage and 5 A switch contact current. Operating temperature range from -20°C to 55°C for varied industrial applications. Equipped with blue LED illumination for visual status indication.

Panel mount type with solder pin terminals for easy installation. Standards compliant including cULus Recognized E 187490 and impact IK10 rating.

This product is a dependable choice for professionals requiring a high-quality illuminated latching Push Button Switch for diverse industrial, laboratory, and commercial control systems. Explore more RS PRO switches and components on EnvMart for comprehensive electrical solutions.
