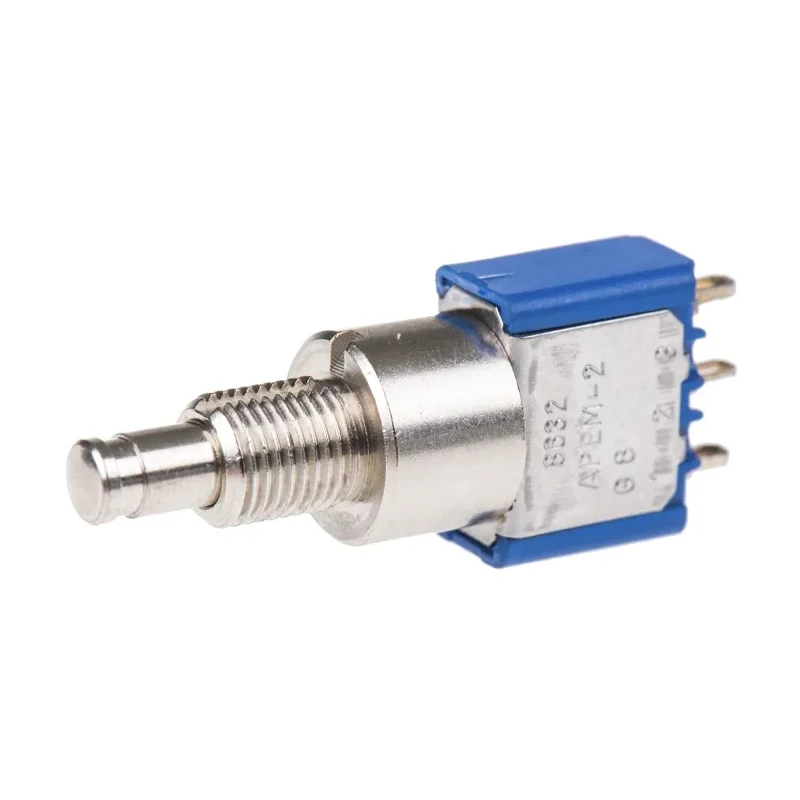

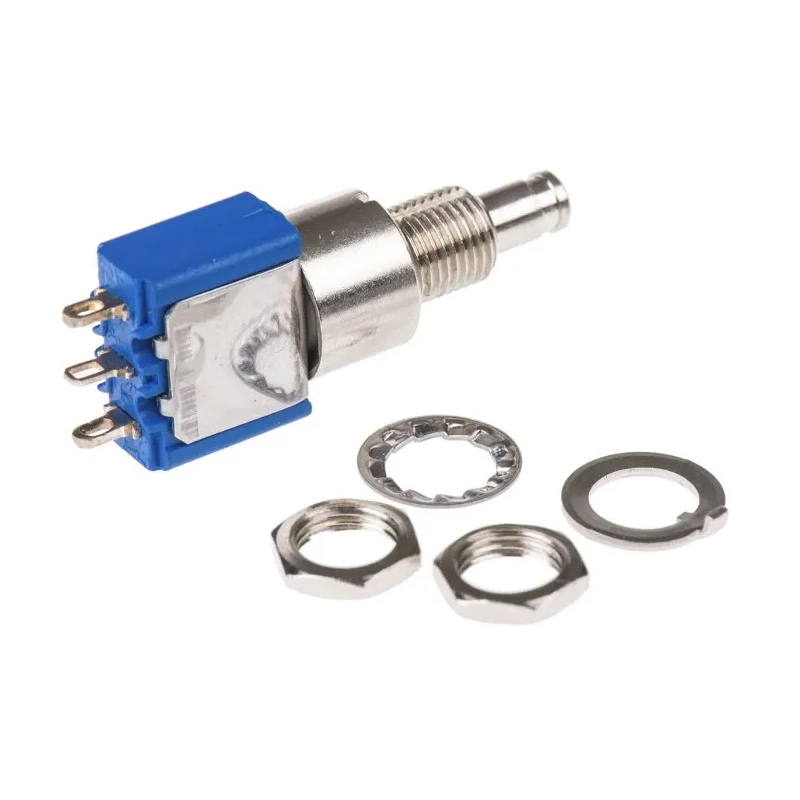

RS PRO 8000 Series Miniature Push Button Switch Momentary Panel Mount 6.5 mm Cutout SPDT 125V AC 4A 8632A
Specifications
| Country of Origin | France |
|---|---|
| Brand | RS PRO |
| Model | 8632A |
| Mount Type | Panel |
| Series | 8000 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Insulation resistance | 1000 MOhm @ 500 V dc |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 6.5 mm |
| Terminal type | Solder, Tab |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 125V |
| Actuator Style | Round |
| Switch Contact Current | 4A |
| Contact AC Voltage | 125V ac |
| Electrical Life | 30000 cycles |
| Stock No | 103-5732 is an SPDT Momentary switch |
Key Features
- The switch features a silver round actuator with no illumination.
- It provides reliable performance in temperature ranges from -40°C to 85°C.
- The switch has a robust stainless steel body with epoxy sealed terminals.
- The electrical life expectancy is 30,000 cycles, ensuring durability.
- It boasts a high insulation resistance of 1000 MOhm at 500 V DC.
- Terminals support solder and tab connections for versatility in mounting.
- The switch complies with RoHS standards for environmental safety.
- This SPDT momentary switch is ideal for industrial and automation control applications.
Product Description
APEM 8632A miniature push button switch from the 8000 series is a high-quality, momentary, single-pole double-throw (SPDT) switch designed for panel mounting with a 6.5 mm cutout. Rated at 125 V AC and 4 amperes, this switch is suitable for various industrial and automation applications requiring reliable and precise control.
Constructed with a stainless steel body and epoxy-sealed terminals, it ensures durability and long-term performance in demanding environments with operating temperatures from -40°C to 85°C. The round silver actuator offers a tactile feel without illumination, compatible with interchangeable caps and optional sealing hoods for enhanced protection.
With an electrical life of 30,000 cycles and an insulation resistance of 1000 MOhm @ 500 V DC, it guarantees longevity and safety under electrical stress. Terminals are designed for solder and tab mounting, facilitating flexible installation options.
This RoHS-compliant switch conforms to industry standards and is engineered for use in automation, electrical control panels, manufacturing machinery, HVAC systems, and other commercial or industrial equipment.
The switch features a silver round actuator with no illumination. It provides reliable performance in temperature ranges from -40°C to 85°C. The switch has a robust stainless steel body with epoxy sealed terminals. The electrical life expectancy is 30,000 cycles, ensuring durability.
It boasts a high insulation resistance of 1000 MOhm at 500 V DC. Terminals support solder and tab connections for versatility in mounting. The switch complies with RoHS standards for environmental safety. This SPDT momentary switch is ideal for industrial and automation control applications.
Its compact design suits panel integration with a 6.5 mm cutout requirement. Explore the complete range of APEM miniature push button switches on EnvMart for your industrial switching needs.
Explore more products in our Push Button Switches & Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The electrical life expectancy of this model is 30,000 cycles, ensuring longevity in operation.
This switch can operate at a maximum temperature of 85°C.
The switch supports solder and tab connections, allowing for versatile mounting options.
It requires a panel cutout size of 6.5 mm for proper installation.
The insulation resistance is rated at 1000 MOhm at 500 V DC, providing safety under electrical stress.
The contact configuration is SPDT (Single Pole Double Throw), suitable for various applications.
It is rated for a contact AC voltage of 125V and a contact DC voltage of 125V.
The minimum operating temperature for this switch is -40°C.
The actuator is round and silver in color, providing a tactile feel without illumination.
Yes, this switch complies with RoHS standards for environmental safety.
This momentary switch is ideal for industrial and automation control applications, including electrical control panels and manufacturing machinery.
This push button switch is from the RS PRO brand, model 8632A, part of the 8000 series.
