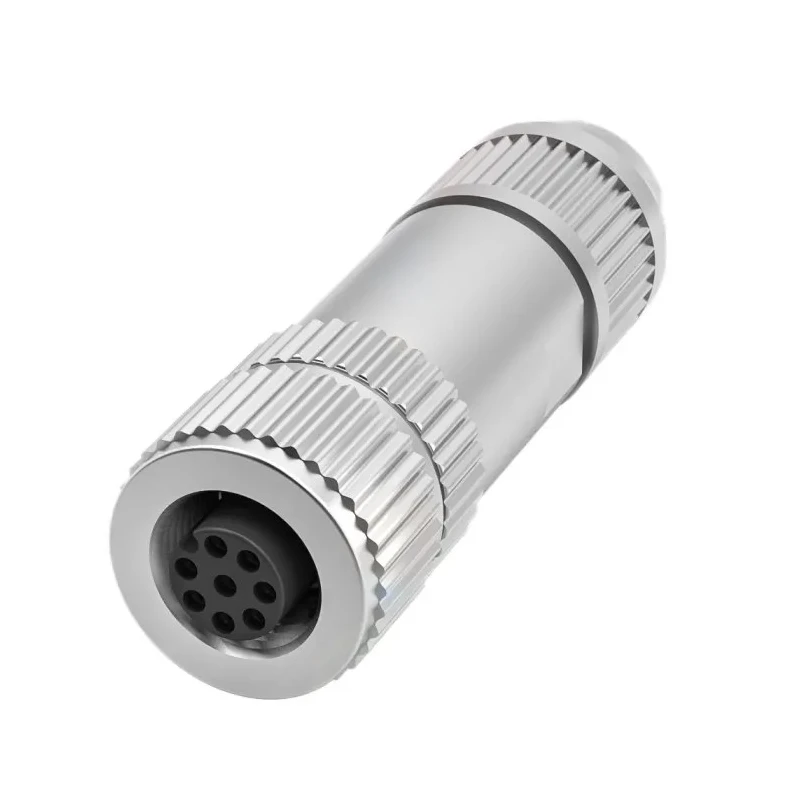

BALLUFF Industrial Circular Connector Cable Mount 8 Contacts Female Socket M12 IP67 30V 1.75A BCC04MC

Free Delivery in India | Lowest Global Shipping Charges

BALLUFF Industrial Circular Connector Cable Mount 8 Contacts Female Socket M12 IP67 30V 1.75A BCC04MC

Name: BALLUFF Industrial Circular Connector Cable Mount 8 Contacts Female Socket M12 IP67 30V 1.75A BCC04MC
Brand: BALLUFF
SKU: 298842
Price: 120.34 USD
Availability: InStock



Category Industrial Circular Connector Brand BALLUFF Condition New

Specifications

Country of Origin	Germany
Voltage	30, 30V ac
Brand	BALLUFF
Orientation	Straight
Current	1.75A
Model	BCC04MC
IP Rating	IP67
Mount Type	Cable
Housing Material	Zinc Die Cast Nickel Plated
Contact Material	Bronze
Series	BCC M478-0000-1A-000-43X834-000
Termination Type	Screw
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Standards/Approvals	EAC WEEE
Number of Contacts	8
Contact Gender	Female
Mating Type	Threaded
Connector Size	M12
Plug/Socket	Socket
Coding	A

Key Features

The connector supports a 1.75 A current rating suitable for signal, data, and power transmission.
It features an M12x1 female straight orientation with 8 pins and A-coded threading.
The housing is zinc die cast nickel plated for durability and corrosion resistance.
IP67 protection ensures dust tightness and water immersion resistance.
Operating temperature ranges from -25°C to 85°C for demanding industrial environments.
Termination is by screw type compatible with 0.14 to 0.34 mm² wire cross sections.
The connector is compliant with EAC and WEEE standards for approval and environmental safety.
Contact material is bronze for optimal conductivity and reliability.

Product Description

BALLUFF BCC04MC is a high-quality industrial circular connector designed for secure transmission of electrical signals, data, and power in demanding industrial applications. It is an 8-contact, cable mount circular connector with a female socket configuration adhering to M12 connector standards and A-coded threading for compatibility and reliable mating.

This connector operates safely at voltages up to 30V AC/DC and supports a current rating of 1.75A at 40°C, making it suitable for signal and low power connections in automation, manufacturing, and control systems.

The zinc die cast nickel-plated housing provides robust mechanical protection and corrosion resistance, while the bronze contacts ensure excellent electrical conductivity. Its IP67 ingress protection rating guarantees dust tightness and protection against temporary water immersion, making it well-suited for harsh industrial environments including factories, outdoor installations, and machinery.

Designed for cable mounting with screw termination, it supports wire cross sections from 0.14 to 0.34 mm² and cable diameters between 4 and 8 mm. The connector maintains performance across a wide temperature range from -25°C to 85°C, accommodating various industrial conditions.

The connector has a straight orientation and a mating type that uses secure threaded engagement for mechanical stability. This model is part of the BCC M478-0000-1A-000-43X834-000 series, ensuring compatibility with related components.

Environmental and safety compliance include EAC and WEEE certifications enhancing suitability for global markets.

The BALLUFF BCC04MC connector is ideal for applications in industrial automation, machine building, robotics, assembly lines, and instrumentation where secure and robust electrical connections are critical. With its durable construction and reliable contacts, the connector supports long-term operation in challenging conditions.

For users seeking dependable Industrial Circular Connectors with compact M12 form factor, the BALLUFF BCC04MC offers excellent performance and protection. Explore EnvMart's range of industrial connectors for complementary products and similar solutions.
