Kraus & Naimer 3-Pole Base Front Panel Mount Isolator Switch IP65 22kW KG64.T203/GBA060.*SB2

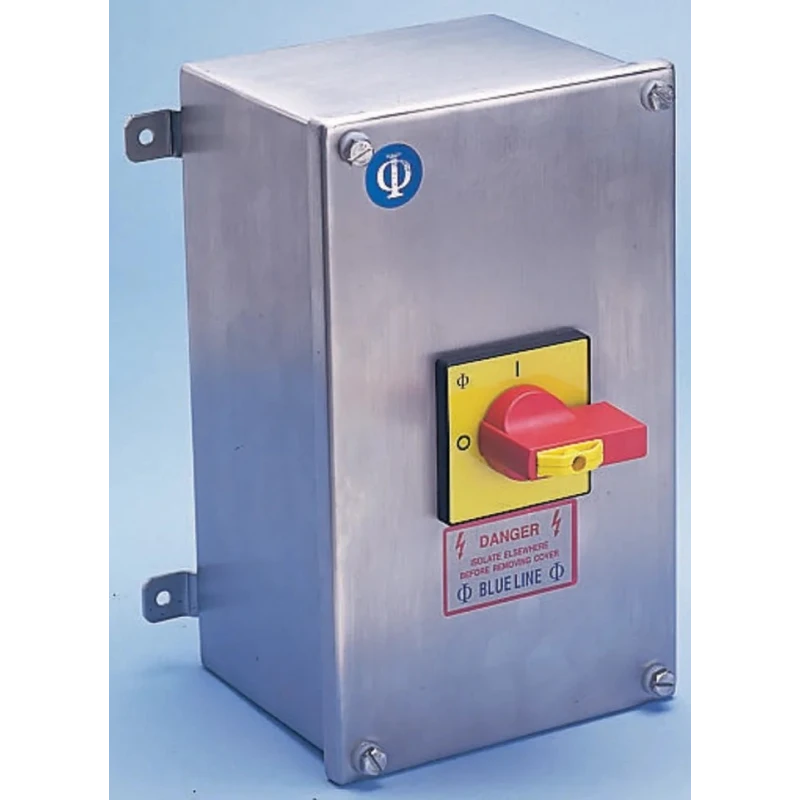

Kraus & Naimer KG64.T203/GBA060.*SB2 3-pole base front panel mount isolator switch is engineered for reliable electrical isolation and safety in industrial environments. This isolator switch features a stainless steel 316 grade satin polish enclosure designed to IP65 standards, providing robust protection against dust and water ingress. It is suitable for 3-phase electrical systems with a nominal switching voltage of 690V AC and a switching power rating of 22 kW, making it capable of handling heavy-duty electrical loads.

The switch includes one normally open (N/O) early break/late make auxiliary contact that facilitates auxiliary control and signaling functions within electrical panels. Safety is further enhanced by the ability to lock the switch in the OFF position using up to four padlocks, thereby preventing unauthorized operation during maintenance or downtime.

This isolator is rated for operation in a wide temperature range from -55°C to 55°C, making it adaptable to varied industrial and environmental conditions. It conforms to internationally recognized standards including BS EN 60204, BS EN 60947, IEC 60204, and IEC 60947, ensuring compliance with electrical safety and construction requirements.

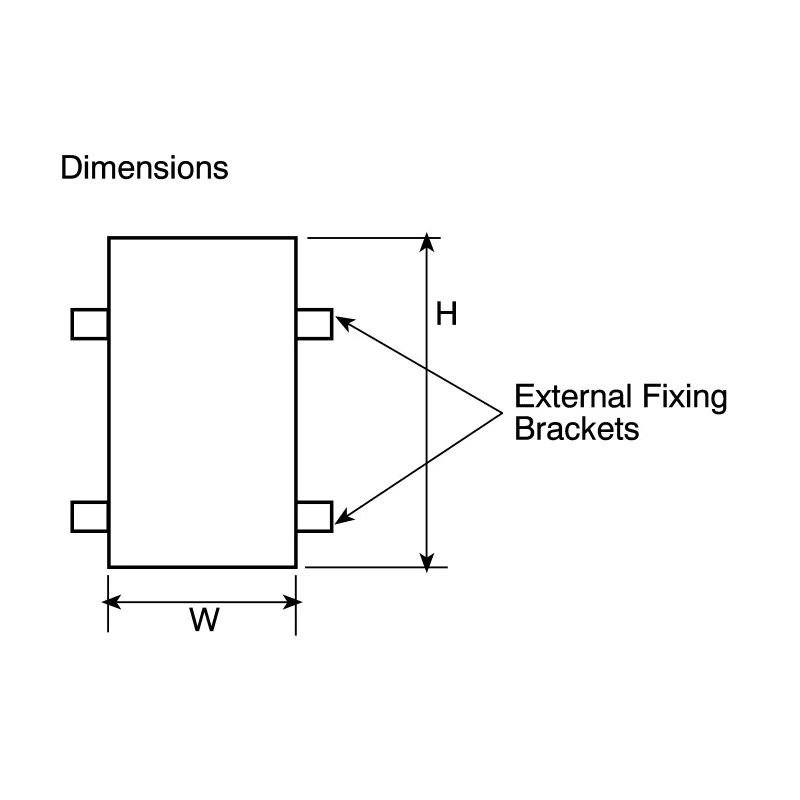

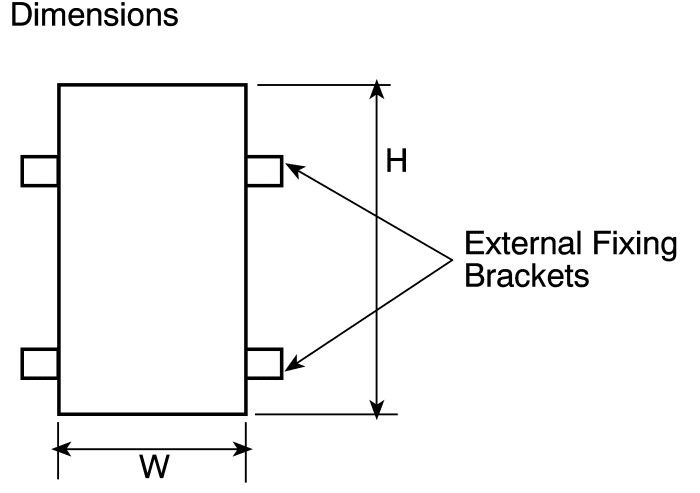

Designed as a base mount for front panel installation, the product excludes a neutral terminal and external fixing brackets are not included with the unit. Manufactured in the United Kingdom, the switch combines quality workmanship with rugged materials for long-lasting performance in harsh industrial settings.

This isolator switch is ideal for use in industrial automation, electrical control systems, and machinery requiring secure isolation for maintenance or emergency shut-off. Its stainless steel enclosure and lockable feature provide enhanced safety and durability for industrial, manufacturing, and automation applications.

High durability stainless steel Grade 316 satin finish enclosure with IP65 rating. 3-pole isolator suitable for 3-phase electrical systems. Rated switching power of 22 kW at 690V AC. One N/O early break/late make auxiliary contact included.

Lockable OFF position compatible with up to four padlocks. Operational temperature range: -55°C to 55°C. Conforms to BS EN 60204, BS EN 60947, IEC 60204, IEC 60947 standards. Base mount, front panel installation type. Manufactured in the United Kingdom.

Neutral terminal not included, external fixing brackets excluded. Explore our extensive range of industrial electrical Isolator Switches and components on EnvMart to find compatible parts and solutions for your applications.
